Out of Stock: Ships 4-6 weeks ARO

Engage RF Insert, 26 GHz SSMP-SMA Calibrate

Calibrate Fixture side of resource pair. Requires RIK0316A or RIK0232A SSMP Launch. Frequency to 26GHz to DIB or 50 GHz to Top Hat. Power up to CW 100 Watts.

Part Number: RIK0374A

In Stock: 0

Estimated Restocking Time: 4-6 weeks

$700
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

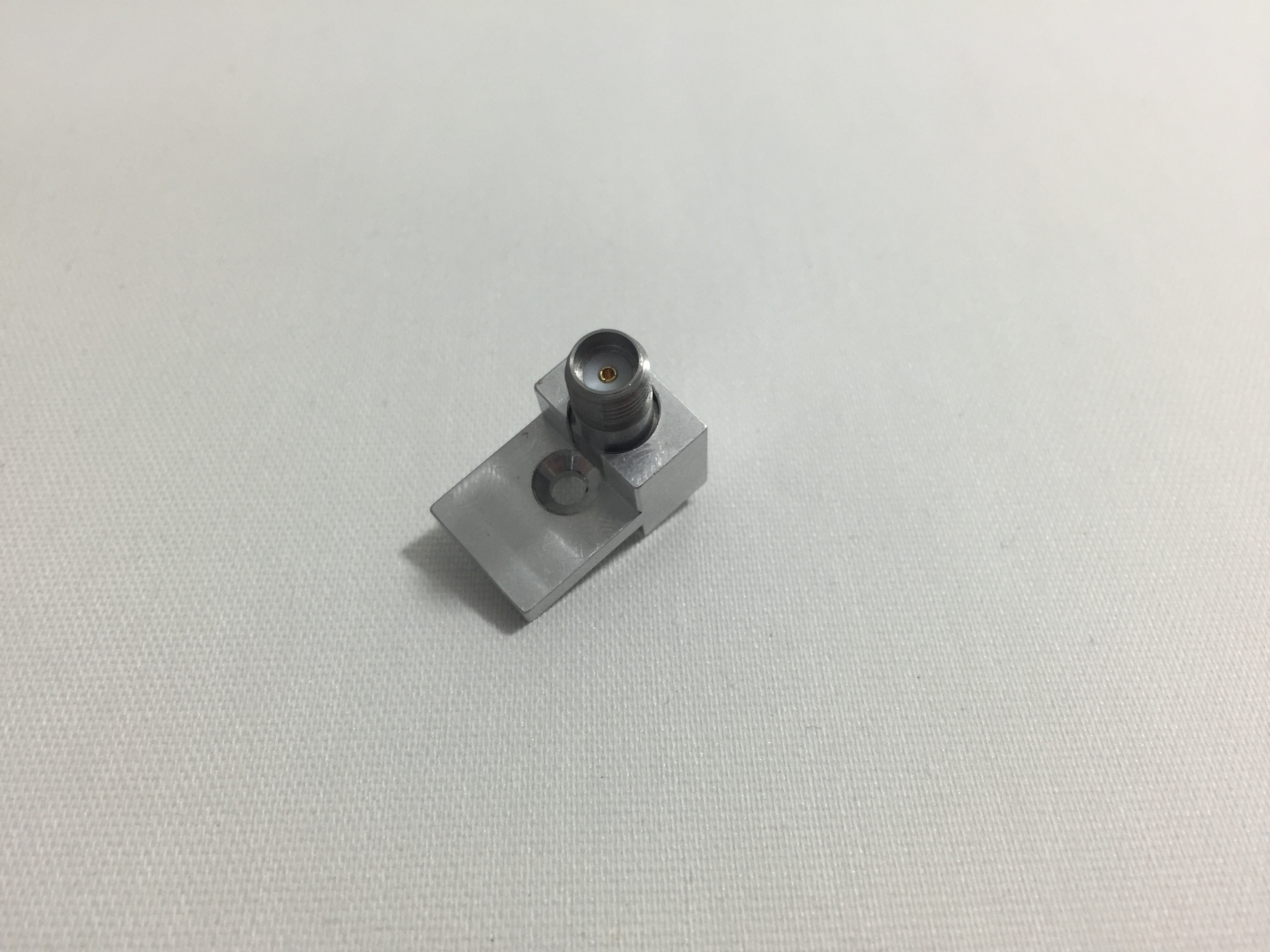

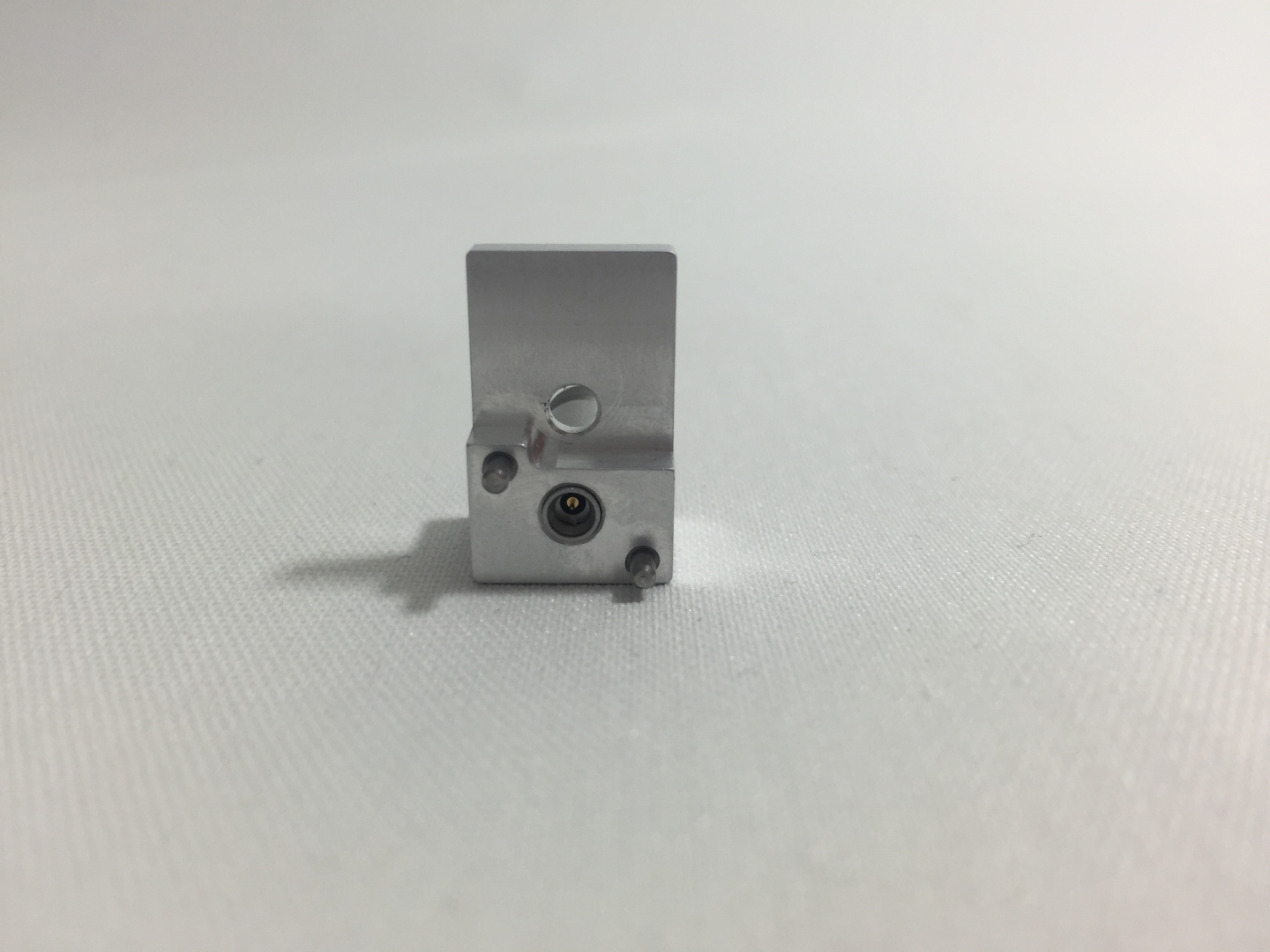

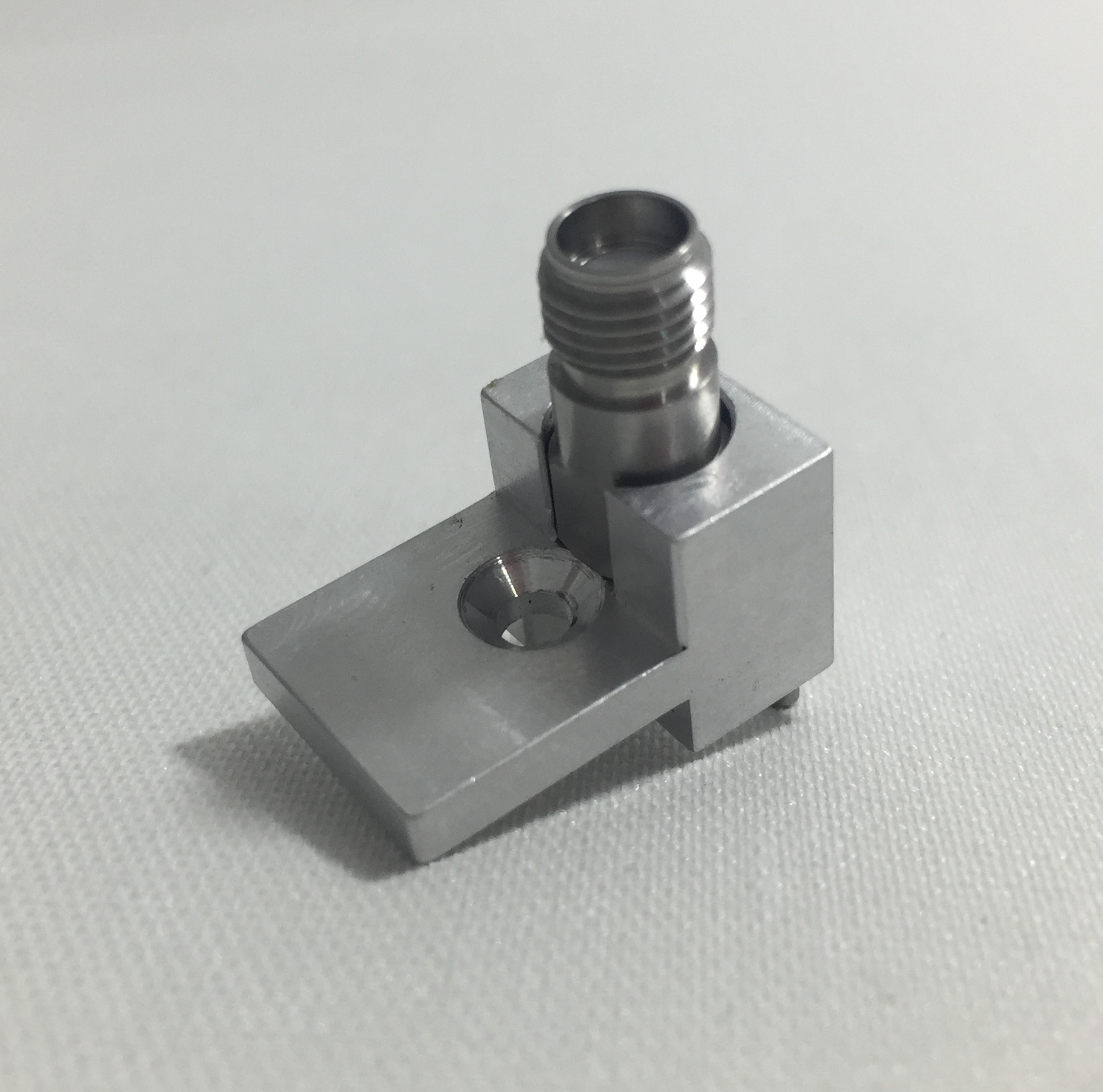

Used to provide precision alignment for GPPO Male to SMA Jack adapter to calibrate the Fixture path in place of a RIK0316A or RIK0232A SSMP (aka GPPO) launch.

Place this alignment block on top of the Fixture Insert RIK0316A or RIK0232A .


Includes this adapter.

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1MH3FNL1A1SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
2MN2FU21A1ADAPTER, SSMP(m) (GPPO(m)) - SMAFCoax
3W1MFFNWA1Cal block SSMP launchMchFb
BOM Refreshed:05/11/2020 06:25 PM
