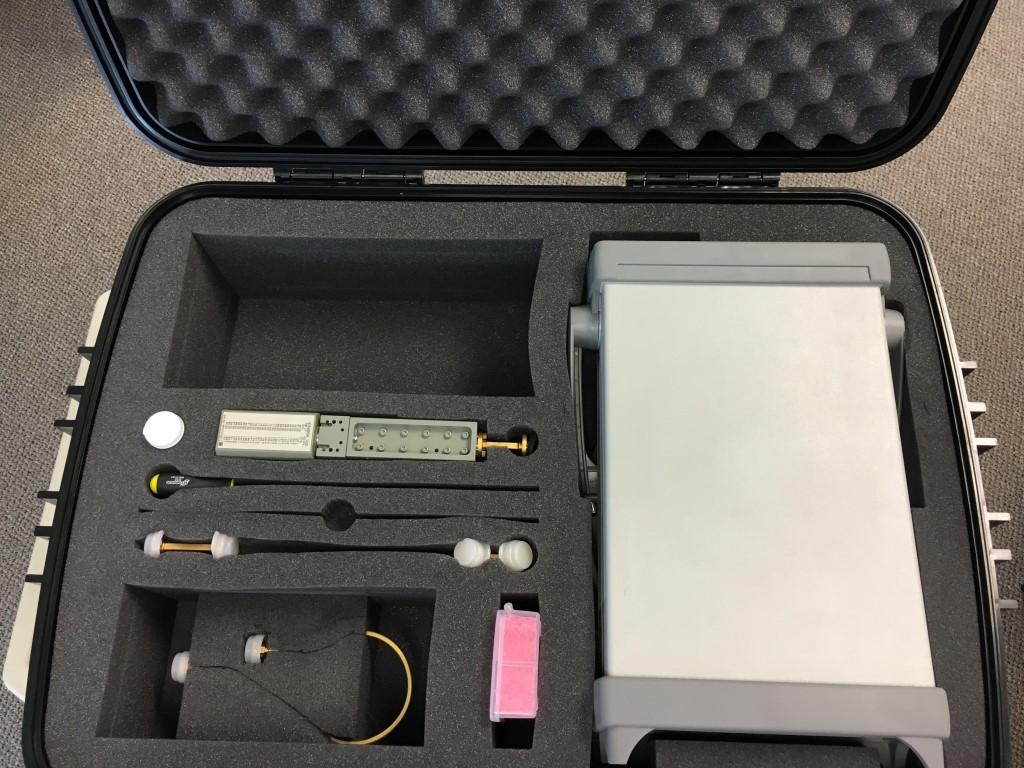

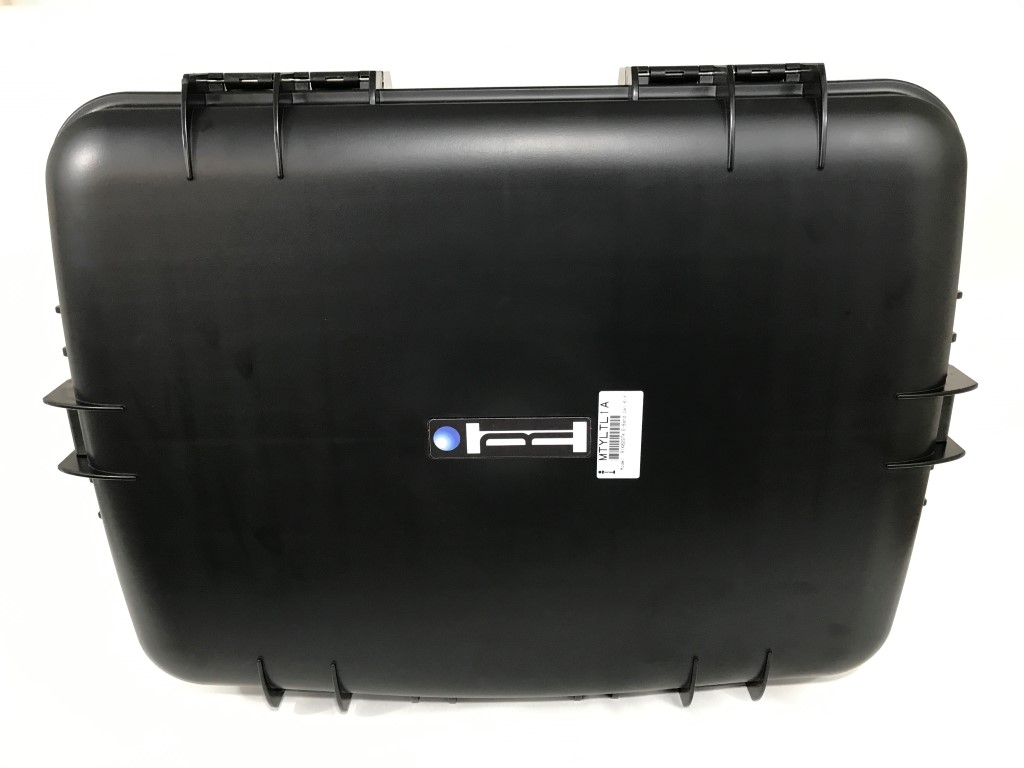

The Calibration Kit (Cal Kit) is used while calibrating an RI test system or Fixture for frequencies up to 50 GHz. It includes a Power Meter and Sensor, OSL Standards, adapters and cables.

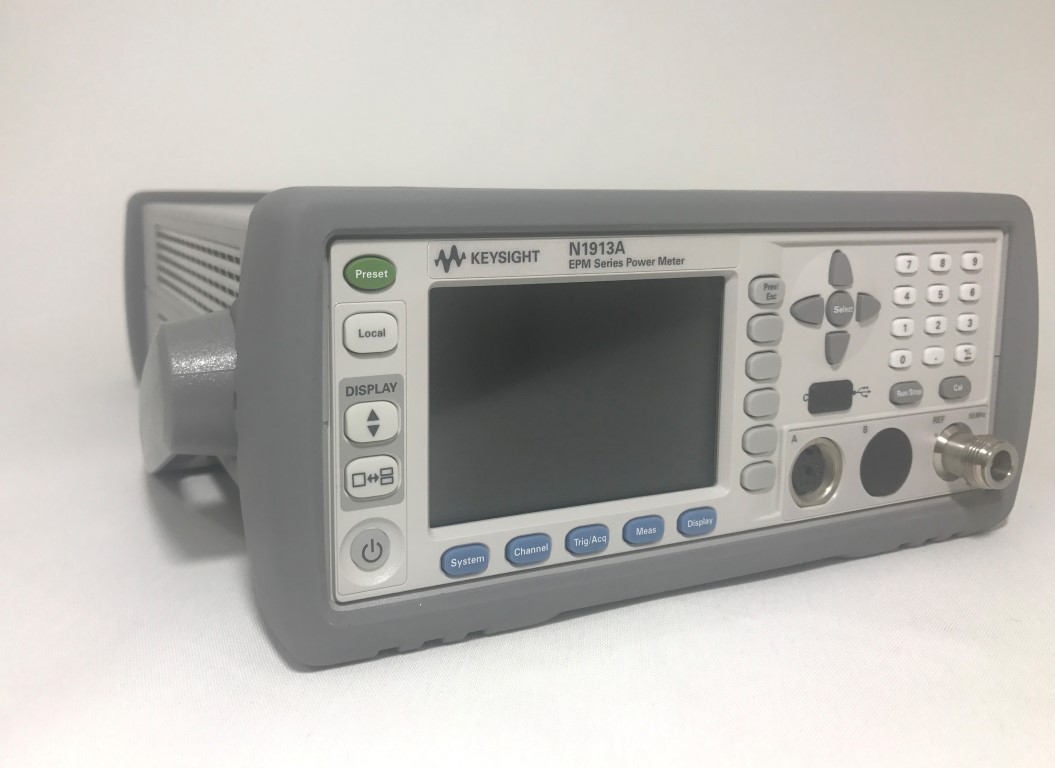

Power Meter: Keysight N1913A
Power Sensor: Keysight N8487A
OSL Calkit: Keysight 85564A
The diagnostic interface kit is sold separately and IS REQUIRED for Calibration because it providing the TIM Cal Blocks and required RF connections.
RI usually only issues a NIST traceable calibration certificate only when a preventive maintenance and calibration (PMC) is performed. A calibration is performed when a major physical instrument is repaired or replaced, but a certificate is not issued.
|023A||RI7100A Calibration Kit|
|130A||Cassini 8-Slot Interface Kit|
|149A||Calibration Standards Kit, Cassini 18 GHz|
|150A||Calibration Standards Kit, Cassini 40 GHz|
|151A||Cassini 16-Slot Interface Kit|
Each RI Cal Kit requires annual calibrations for most instruments. If available, you can use a calibration lab at your facility or one in your local area. If not, some of the components may have to be sent to the manufacturer for calibration. Below is a listing of the Cal Kit components, Vendor Addresses and Web Sites.
Cal Kit Instrument Vendor Information: Please refer to the website for a vendor representative in your area.
Keysight Calibration Services
1400 Fountaingrove Parkway
Santa Rosa, CA 95403-1738
+1 800 829-4444 Press #, then 2
|Item||Ref||Part Number||QTY||Description||Category||Qty in Stock|
|1||MTNC8Y1A||1||Power Meter, Keysight N1913A, 80GHz*||InstPr|
