This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/21/2012.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0160A; RIK0120B; RIK159A; RIK0153B
Expiration Reason: Broken up into separate kits to allow more flexibility and simplify configuration process.
Aditional replacements may be found by searching for RIK0120 (change the REV letter) or Matrix Fixture, Top Plate Assy w/ Carrier & Sides.
Matrix Fixture, Top Plate Assy w/ Carrier & Sides
Part Number: RIK0120A
In Stock: 0
Estimated Restocking Time: Limited Availability: 12+ weeks
USE RIK0160A (Carrier) + RIK0120B (top plate) + RIK159A (8 slot sides) or RIK153B (16 slot sides) instead!

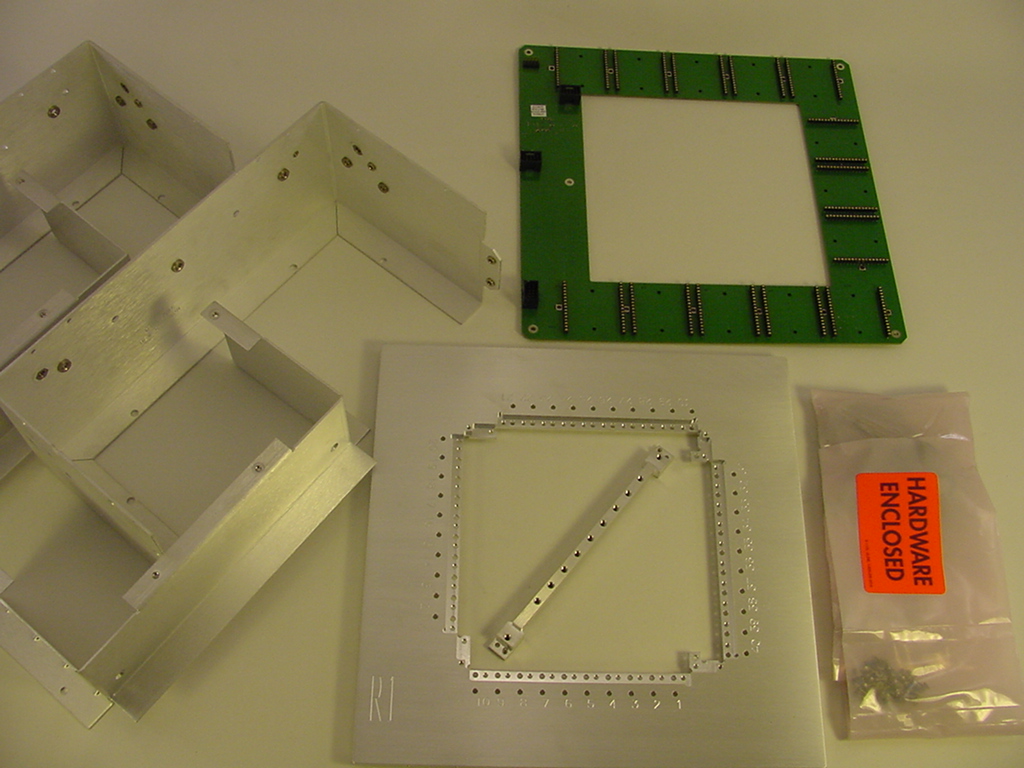

Fixture Top plate + carrier board + side plates +hardware. Is compatible with both 7100 and Cassini 8 slot. Used for both single site and dual site.
Related Documents:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | EJKMZT1A | 8 | spring .30 OD .75L .028 wireDIA | MchCmp | ||
| 2 | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | ||
| 3 | M673YF1A | 8 | SCREW, BUTTON HEAD, 10-32 X 3/8", SS | Hrdwr | ||
| 4 | M6J2JS1A | 25 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 5 | M6JGN21A | 8 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 6 | MAHYV31A | 1 | WASHER, LOCK, #8 SPLIT, SS | Hrdwr | ||
| 7 | MFFW391A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4", 100° | Hrdwr | ||
| 8 | MGR86B1A | 4 | sandwich mount neoprene DIA5/8 L1/2 F-F 8-32 | MchCmp | ||
| 9 | MGR8721A | 4 | SCREW, BUTTON HEAD, 8-32x1/4", SS | Hrdwr | ||
| 10 | MGZ88J1A | 1 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | ||
| 11 | MH272Y1A | 1 | Ground Wire 3"* | CblMsc | ||
| 12 | MH3FNL1A | 48 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 13 | MJ6JJV3A | 4 | Pin, Fixture Stop, 0.50 x 0.80L w 10-32, Alternate to W1MFFFHA | MchCmp | ||
| 14 | MJKN071A | 4 | shoulder screw 8-32 3/16DIA 1.25L SS socket head | Hrdwr | ||
| 15 | MJNFNC2A | 1 | knob retract fixture top* | MscAssy | ||
| 16 | MKJ4HR1A | 4 | Nyliner 3/16 shaft plate thickness .315 | MchCmp | ||
| 17 | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | ||
| 18 | W1MFECKG | 1 | TOP FIX DUAL INSERT, Matrix | MchFb | ||
| 19 | W1MFEEHC | 1 | BAR FIX INSERT MTG* | MchFb | ||
| 20 | W1MFEGJF | 2 | Cover, Lower LONG Fix Dual, 8 SLOT | MchFb | ||
| 21 | W1MFEGKE | 2 | Cover Upper LONG Fix Dual | MchFb | ||
| 22 | Y0006KA3 | 1 | FIXTURE CARRIER, Matrix STD (non RIFL)* | PcbAssy |
