Fixture, Bench-Top 20RF, Active Carrier
"Soft Dock" RI7100A Fixtures
Part Number: RIK0081A
In Stock: 0
Estimated Restocking Time: Contact Factory
Allows Benchtop Calibration and DIB debug with any Top Plate and only required hardware (unbundled)

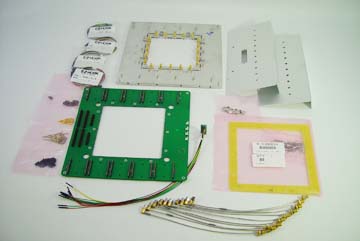

Kit includes the following:
- Bulkhead SMA connectors
- EZ Hook DC cables
- Pogo Pins and Receptacles
- Pogo Alignment Tool
- Fixture Top Plate
- Fixture Carrier
- Side Covers
- 1/4" hole covers caps
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M673SZ1A | 31 | SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCK | Hrdwr | ||
| 2 | M6J2JS1A | 16 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 3 | M6MJ8T1A | 45 | RECEPTACLE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 4 | M6MJ8Y1A | 45 | PROBE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 5 | M7VBFN2A | 2 | Jumper Wire Set 8" (10pcs.) 28AWG | CblMsc | ||
| 6 | M8MBX01A | 10 | Coax,Confrm,.085, 90° SMAM-SMAF Bulkhead, 9.0" | Coax | ||
| 7 | M8UKXC2A | 2 | Cable Assy Ribbon 40cond 6" | Rbbn | ||
| 8 | M9PLE91A | 2 | Cable Assy Ribbon 40cond 18in | Rbbn | ||
| 9 | MBPYNY1A | 10 | Hole Plug, finishing, 1/4" nickle pltd steel | MchCmp | ||
| 10 | MC8X3J1A | 2 | Jumper Wire Set 12" (10 pcs.) 28AWG | CblMsc | ||
| 11 | MEJFZB4E | 1 | VI harness 16", 10 pin, active* | CblMsc | ||
| 12 | MER2651A | 1 | Fixture, Top Plate Multi w/ 20 SMA* | MscAssy | ||
| 13 | RIK0083A | 1 | Pogo Alignment Tool, 20RF* | CstmrKt | ||
| 14 | W1MFCNYA | 2 | side bench multi fix* | MchFb | ||
| 15 | Y00065A1 | 1 | Super Fixture Carrier, Active* | PcbAssy |
