No New Designs

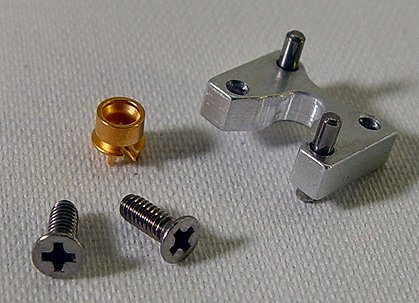

Matrix DIB Insert, 20 GHz SSMP DIB Launch (Side A)

DIB side of resource pair. Requires RIK0217A Matrix Fixture Launch. Frequency up to 20 GHz

Part Number: RIK0216A

In Stock: 0

Estimated Restocking Time: 1-2 weeks

$280
DO NOT use this for new Designs.
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Bottom and TOP shown installed.

DIB, Bottom View (RIK0216A)
Fixture, Top View (RIK0217A)

Order Connectors with RI Part Number MNA43L1A

Product Docs
SSMP Connector Installation
Product Docs
Matrix Top Plate RF Interfaces

SSMP PCB Application Note_v3.pdfSSMP PCB Application Note_v3.pdf


Vendor Supplied Information

DSASL00166622.pdfDSASL00166622.pdf P308-2CC on page 6.

Order MNA43L1A from Roos Instruments.

Item Ref Part Number QTY Description Category Qty in Stock
1M9C7X22A2SCREW, FLAT PHIL, 2-56 X 1/4", 100° SSHrdwr
2MNA43L1A1SSMP MALE STRAIGHT SURFACE MOUNT WITHOUT DETENTPcbCnnct
3MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
4MPERBG1A2SCREW, FLAT PHIL, 2-56 X 5/16", 100° SS (.3125)Hrdwr
5MPF6T91A1Assy Doc, SSMP Connector InstallationDcmnt
6W1MFFCTB1SSMP Matrix interface SPMchFb
BOM Refreshed:05/11/2020 06:25 PM
