Pod Module, 2 Dual 6 GHz SP4T RF Switches
POD Carrier Up to 4 SP4T Switches
Part Number: RIK0289A
In Stock: 0
Estimated Restocking Time: 4-6 weeks
Provides up to four 6 GHz absorptive SP4T Switches.
The includes two DUAL SP4T 5MHz to 6 GHz RF module. It is especially easy to use since DC wiring is not required (do not use cbits to control DS1-DS4). It also helps to reduce fixture complexity where a high level of RF switching is required.
Related Documents:
See Device Connection Editor - Fixture https://roos.com/docs/ECHN-8EGCAK
Add the following line using Device Connection Editor > Fixture Path > Switch field.
This POD Includes two module boards. Each board has two RF switches. There are a total of 4 switches.
Programming Example:
A4S2J5=J1
A = Fixed value "A"
4 = Pod Slot Module #, (example is in Pod Slot #4)
S = Fixed value "S"
2 = Switch number (1,2,3,4)
"J5=J1" = switch label, J#=J$ (#=2,3,4,5 with "=J1" OR # = 7,8,9,10 with "=J6")

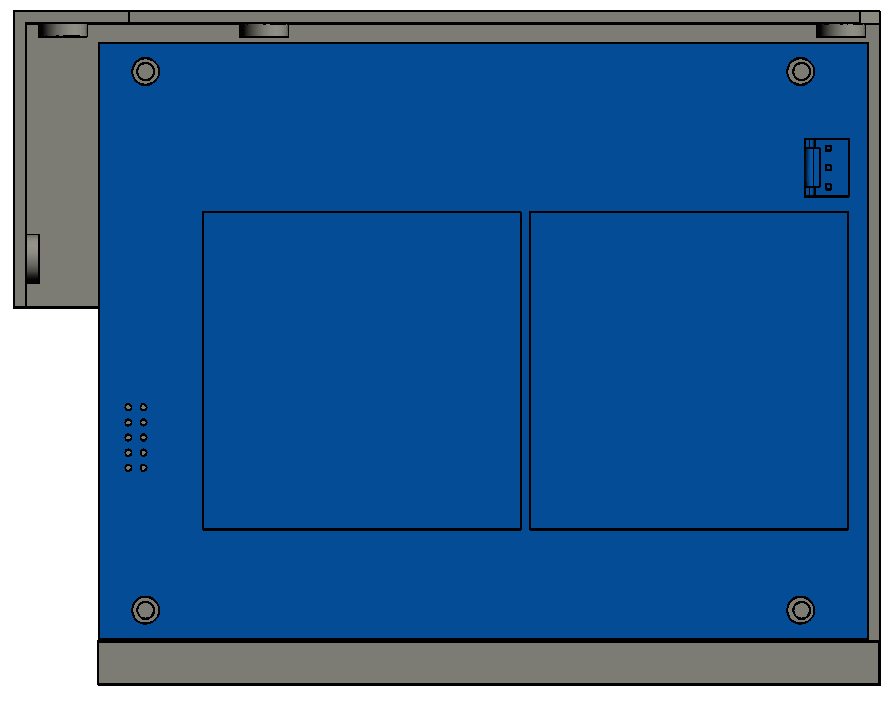

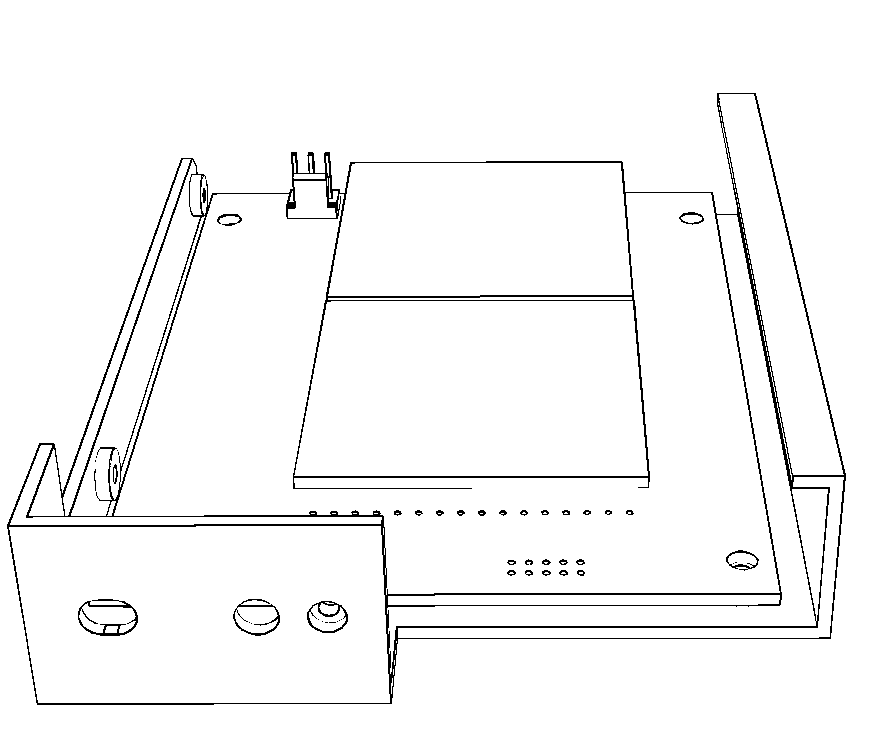

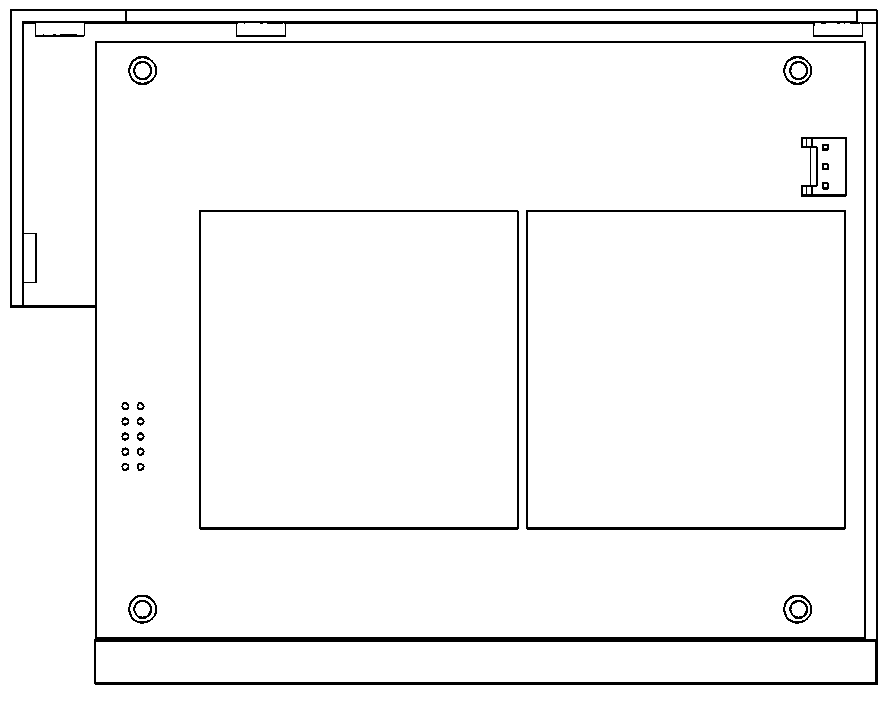

Note: Use labels on PCB, the drawing below may be out of date.
Pin Out:
# = Pod Location
Module # | Pin# | Function | Switch Program | Connector Type |
1,2 | P2:12 | +5V |  | Header Pin |
1,2 | P2:11 | -5V | | Header Pin |
1,2 | P1:5 | +5V | | |
1 | J1 | SW1 Common | | SSMP Male |
1 | J2 | SW1 NO | A#S1J2=J1 | SSMP Male |
1 | J3 | SW1 NO | A#S1J3=J1 | SSMP Male |
1 | J4 | SW1 NO | A#S1J4=J1 | SSMP Male |
1 | J5 | SW1 NO | A#S1J5=J1 | SSMP Male |
1 | J6 | SW2 Common | | SSMP Male |
1 | J7 | SW2 NC | A#S2J2=J6 | SSMP Male |
1 | J8 | SW2 NO | A#S2J3=J6 | SSMP Male |
1 | J9 | SW2 NO | A#S2J4=J6 | SSMP Male |
1 | J10 | SW2 NO | A#S2J5=J6 | SSMP Male |
2 | J1 | SW3 Common | | SSMP Male |
2 | J2 | SW1 NO | A#S3J2=J1 | SSMP Male |
2 | J3 | SW1 NO | A#S3J3=J1 | SSMP Male |
2 | J4 | SW1 NO | A#S3J4=J1 | SSMP Male |
2 | J5 | SW1 NO | A#S3J5=J1 | SSMP Male |
2 | J6 | SW4 Common | | SSMP Male |
2 | J7 | SW2 NC | A#S4J2=J6 | SSMP Male |
2 | J8 | SW2 NO | A#S4J3=J6 | SSMP Male |
2 | J9 | SW2 NO | A#S4J4=J6 | SSMP Male |
2 | J10 | SW2 NO | A#S4J5=J6 | SSMP Male |
Contact Support for Programming Instructions.
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M6J2JS1A | 4 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 2 | MH3FNL1A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 3 | W1MFFTMA | 1 | Housing FIX POD | MchFb | ||
| 4 | Y000C9A1 | 2 | Dual SP4T Hi TOI* | Modl | ||
| 5 | Y000EYA2 | 1 | Fixture Pod Dual Module without 24v* | Modl |
