LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 06/22/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0183A

Expiration Reason: RI7100 bottom plate no longer being built

Aditional replacements may be found by searching for RIK0001 (change the REV letter) or RF Cable Kit (12" SSISM to MCX 90, 6 Cables).

Out of Stock: Ships Limited Availability: 12+ weeks ARO No New Designs

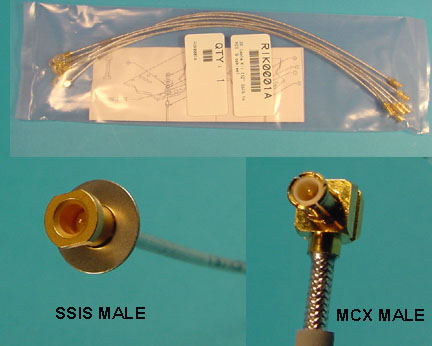

RF Cable Kit (12" SSISM to MCX 90, 6 Cables)

Fixturing; to route the signal from the test head to DUT board.

Part Number: RIK0001A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$940
DO NOT use this for new Designs.

Suggested Replacement: RIK0183A


Each cable has a small and large flat washer and "wavy" spring washer installed onto SSISM connector.
Please reference enclosed drawing to identify which bottom plate you are using to get the washer stack correct.

Related Documents:

User account required Create new account
*Cable Parameters - typical electrical performance of the SSIS to MCX cables.

This is a drawing of how to use the washers and cable wih a bottom plate


SSIS stackup.ckd [Part1] _123_.pdf
*requires "full user" access
Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M8MBWP1A6Coax,Confrm,.085,SSISM-MCX 12.0"*Coax
BOM Refreshed:05/11/2020 06:20 PM
