LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/24/2011.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0149A; RIK0130A
Expiration Reason: Separated into a Diag Interface Plate (Cal Fixture) and Cal Kit Instruments
Aditional replacements may be found by searching for RIK0098 (change the REV letter) or 8 TIM Cassini Calibration Kit.
8 TIM Cassini Calibration Kit
Calibrate Large and Small Cassini Platform
Part Number: RIK0098A
In Stock: 0
Estimated Restocking Time: Contact Factory

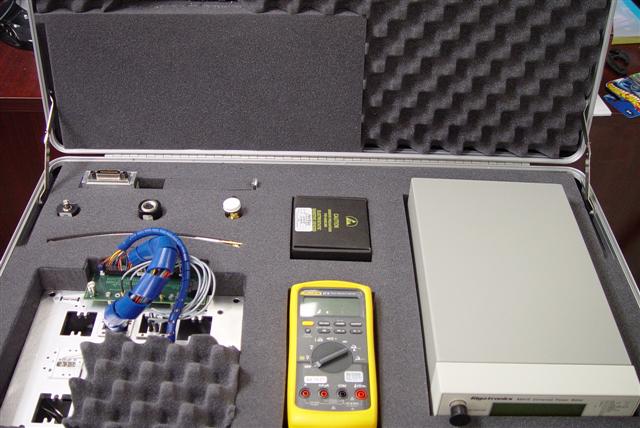

Power Meter and Sensor, Digital volt meter, S Parameter Standards., Noise standard., Cables, RF Adapters, RF Attenuators & Calibration Fixture. The devices are calibrated to NIST standards. Documentation maintained in Santa Clara.
RI recommended calibration intervals for Noise Source and Standards are every 2 years, Power Meter and Volt Meter every 1 year.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | GCBCRS2A | 1 | GPIB Cable .5m M-M | CblMsc | ||
| 2 | GGFEH22A | 1 | Cable, RIFL3-RIFL2, 180in* | CblMsc | ||
| 3 | GGGHA02E | 1 | DC Block, 14in., Cassini Fixture* | CblMsc | ||
| 4 | M5PJG01A | 1 | COAX,CONFRM,SMAM-SMAM 10" | Coax | ||
| 5 | M5WNBC1A | 1 | COAX,FLEX,BNCM-BNCM 36" | Coax | ||
| 6 | M6GSFV1A | 1 | ATTN,20dB,2W | RF | ||
| 7 | M6GVJT1B | 1 | ADAPTER, SMAF-SMAF,BULKHEAD | Coax | ||
| 8 | M6LPX11A | 2 | Vial W/Cap, 12ml | MchCmp | ||
| 9 | M6LPY61A | 1 | Cal Standards Kit SC5224 (Disc & standards)* | RF | ||
| 10 | M6LPZJ1A | 1 | NOISE SOURCE, .01-18 GHz W/Cert, Label, and Open Ended Due Date | InstPr | ||
| 11 | M7CJ222A | 1 | Gigatronics Power meter 8541C W/Cert, Label, Open Ended Due Date | InstPr | ||
| 12 | M7CJ2B2A | 1 | Gigatronics Power Sensor 80301A W/Cert, Label, and Open Ended Due Date | InstPr | ||
| 13 | M8YYJ51A | 1 | open end wrench, 1/4" | TlsAndEq | ||
| 14 | M8YYJB1A | 2 | open end wrench 5/16" | TlsAndEq | ||
| 15 | MBH0VH1B | 5 | Adapter,#12F-SMAF Custom | Coax | ||
| 16 | MCJK5K1A | 6 | SCREW, 100° FLAT PHIL, 6-32 X 5/16", SS, BLK | Hrdwr | ||
| 17 | METBMH1A | 1 | USB I Stick 2.0 64MB | Cmptrs | ||
| 18 | MFCFXJ1A | 1 | Adapter SMAM-NF (Tensolite) | Coax | ||
| 19 | MFHLFU1A | 1 | Case, Cal Kit, W/Foam and RI Logo | MchCmp | ||
| 20 | MFN6ZK1B | 1 | DMM, Fluke 287v w/NIST Cal cert & Open Due Date | InstPr | ||
| 21 | MFPF9N1A | 1 | Floppy Disk, 3.5" Cal Kit Definition | RInstrmn | ||
| 22 | MHR97N3A | 1 | Adapter SMAF-SMAM SWEPT 90° | Coax | ||
| 23 | MHRFH23A | 1 | open end wrench 7/32" | TlsAndEq | ||
| 24 | MHRFH33A | 1 | open end wrench 3/8" | TlsAndEq | ||
| 25 | MHRJPU3A | 1 | Ground Wire 12"* | CblMsc | ||
| 26 | MM9NAK6A | 1 | Case, Transit, Cassini Cal Kit | MchCmp | ||
| 27 | RI8502A0 | 1 | RI8502A RIFL-GPIB POD Translator* | RInstrmn | ||
| 28 | RIK0102A | 1 | RF Cable Kit (5.5" #12F pkz-#12F pkz , 2 cables 1 tall 1 short)* | CstmrKt | ||
| 29 | RIK0103A | 2 | RF Block Assembly 8 RF* | CstmrKt | ||
| 30 | W1MFCBZM | 1 | MOD FIX BOT, 8 SLOT | MchFb | ||
| 31 | W1MFCXGC | 4 | FOOT, FIXTURE MFIX* | MchFb | ||
| 32 | W1MFECGA | 2 | Actuator Fixture Switch, Cassini* | MchFb | ||
| 33 | W1MFEJWA | 2 | Coax,Confrm,085,#12F special-#12F special,8"* | Coax | ||
| 34 | W1MFEJXA | 2 | Coax,Confrm,085,#12F special-SMAM,8"* | Coax |
