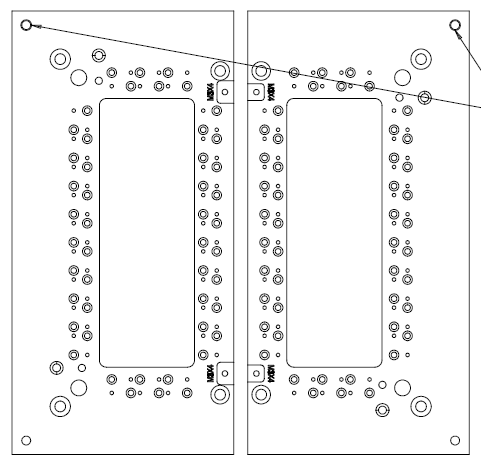

QuickLock, 2 piece 2 Site DUT Clamp, Seiko/Epson
QuickLock Top Plate, Symmetric Dual Site, Matrix
Part Number: RIK0262A
In Stock: 0
Estimated Restocking Time: 1-2 weeks
Allows for quick swap of DIB, works only with the Quick Lock TOP PLATE RIK0214A. Requires Dual DUT Clamp RIK0259A. Requires QuickLock, Center Bar Support RIK0261A.
Works with all current Fixture Launch/Inserts, but not compatible with old-style "saddle" launches for the old, non-QuickLock center rail design.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MA662W1A | 12 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | ||
| 2 | MH3FNW1A | 4 | SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patch | Hrdwr | ||
| 3 | MNE8HT6A | 8 | Screw, Flat Phil, 8-32 X 3/8, 100° | Hrdwr | ||
| 4 | MNY9YR6A | 4 | screw M3 X 4MM flat phil ss | Hrdwr | ||
| 5 | W1MFFMSA | 2 | Bridge DUT clamp half | MchFb | ||
| 6 | W1MFFMZA | 1 | Dut clamp halves with pins L&R* | MchFb |
