LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 07/14/2015.
View RIKs with Limited Availability for a complete list.
Expiration Reason: RI7100 bottom plate no longer being built
Aditional replacements may be found by searching for RIK0004 (change the REV letter) or Test Fixture Bottom Assembly.
Customer must assemble - parts not pictured

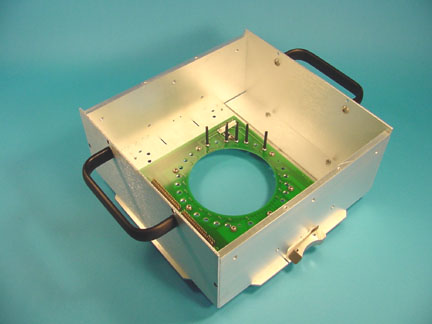

Test Fixture Bottom Assembly
Part Number: RIK0004B
In Stock: 0
Estimated Restocking Time: Limited Availability: 12+ weeks
Fixture is shipped NOT assembled
 | HANDLES 4" BLACK Fixture Bottom Assembly with contoured ramps (see RIK0020A). Fixture Bottom Plate (includes Pogo PCB) Side Covers Side Plates with holes for M1688 Docking |
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | ||
| 2 | M673SZ1A | 12 | SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCK | Hrdwr | ||
| 3 | M6JGN21A | 4 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 4 | M9CLV51C | 1 | Assy, Fixture Bottom* | MscAssy | ||
| 5 | W1MFBSZE | 2 | COVER FIX SQR for 12RF size Top Plates | MchFb | ||
| 6 | W1MFCBWB | 2 | FIXT,SIDE,SQR (3 hole Moto mod) for 12RF size Top Plate | MchFb |
