LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/13/2020. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0190A; RIK0191A

Expiration Reason: Split into individual sizes

Aditional replacements may be found by searching for RIK0007 (change the REV letter) or DC Jumper Wires, 28AWG, 4"+8" (qty 20+20).

No New Designs

DC Jumper Wires, 28AWG, 4"+8" (qty 20+20)

Short DC signal routing between mail pin headers on TIM Blocks, Carriers, Modules, and Inserts

Part Number: RIK0007A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$910
DO NOT use this for new Designs.

Suggested Replacement: RIK0190A; RIK0191A

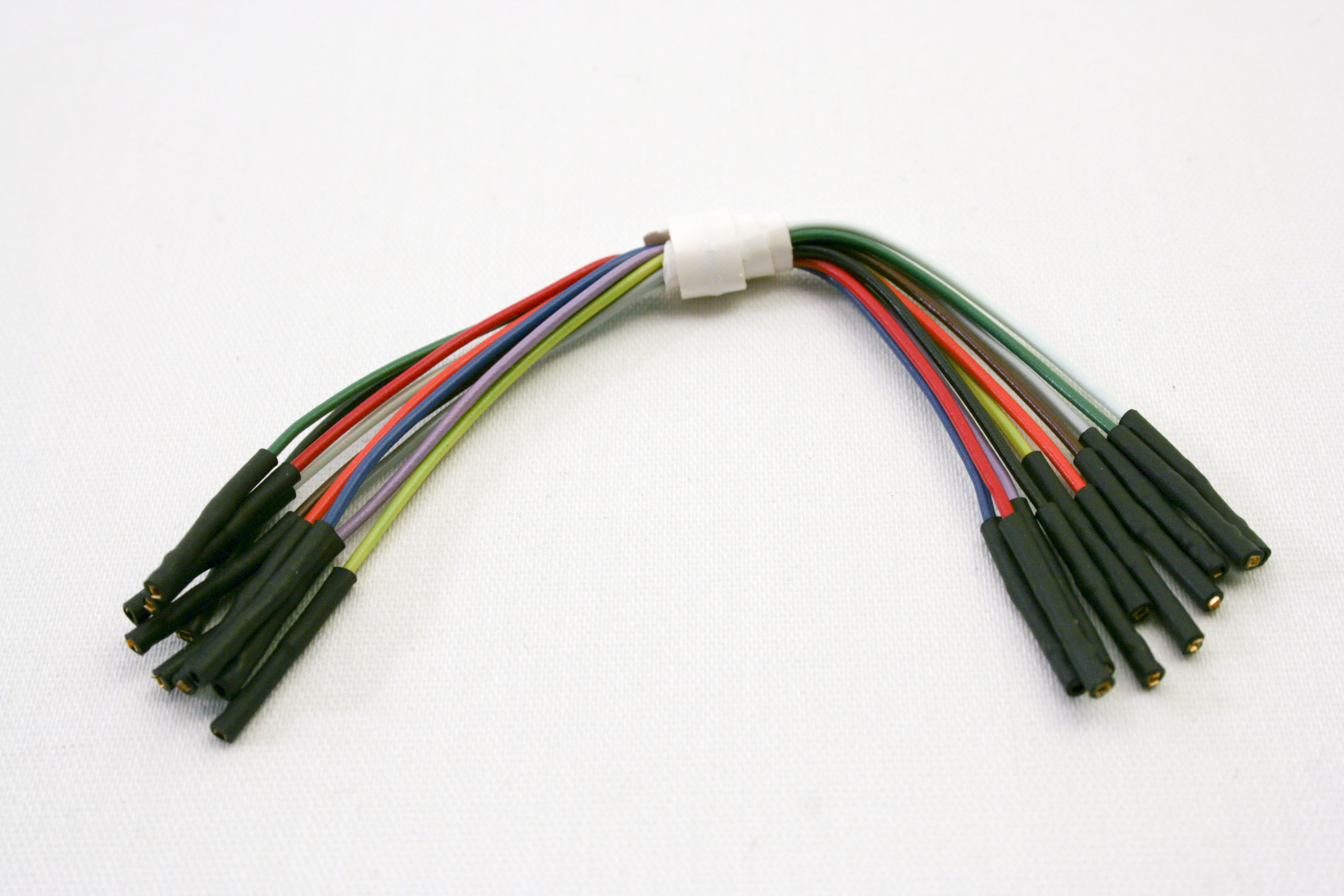

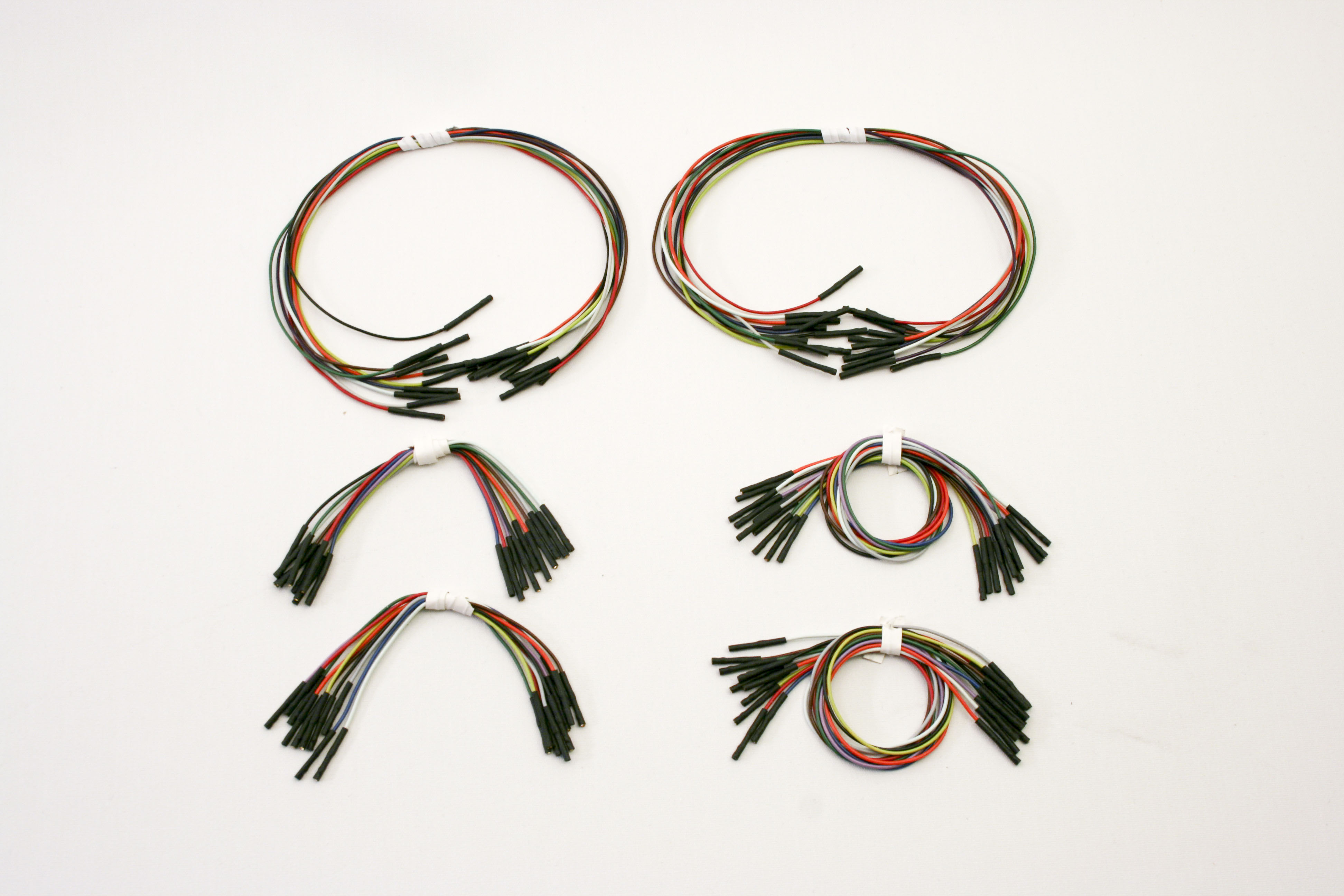

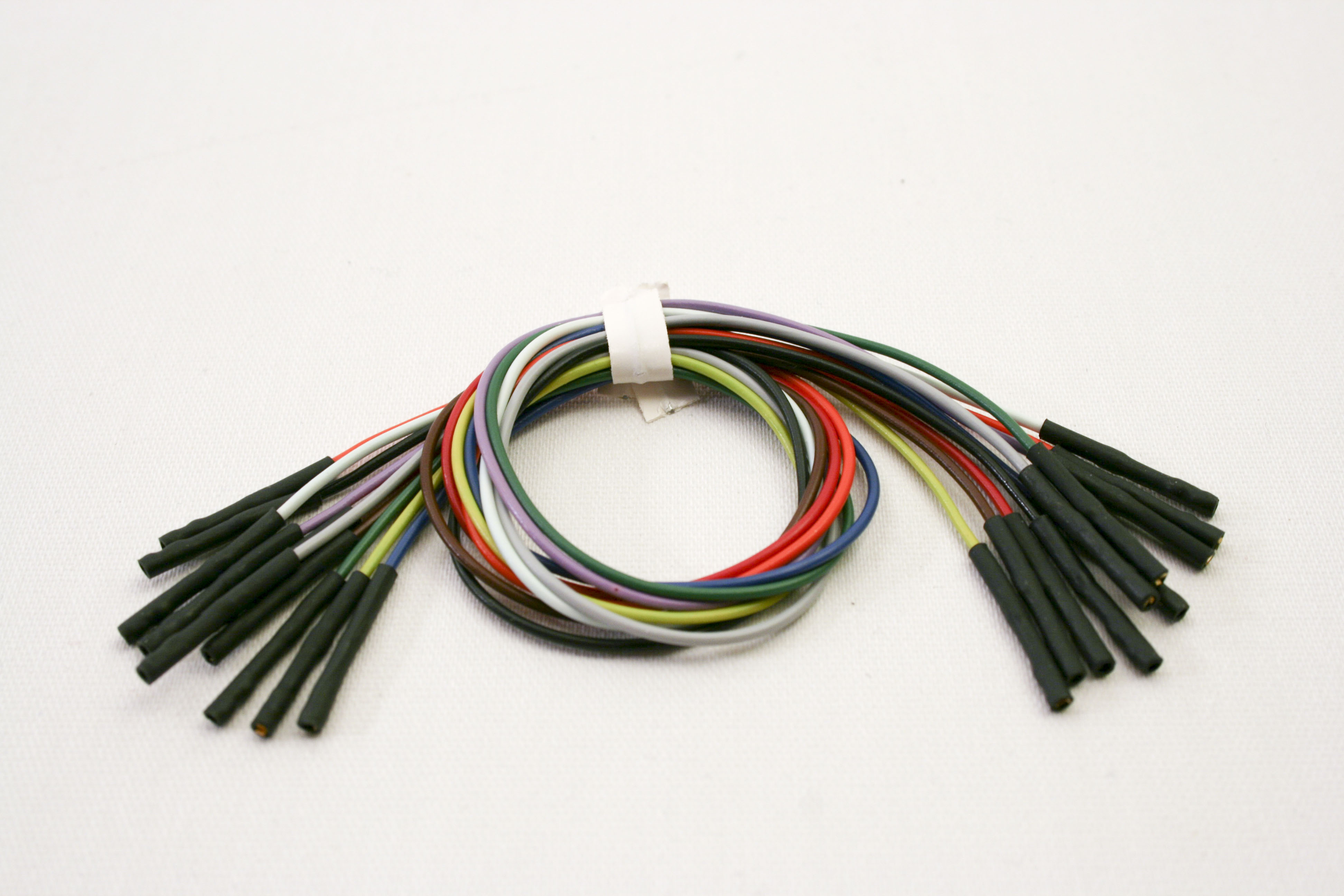

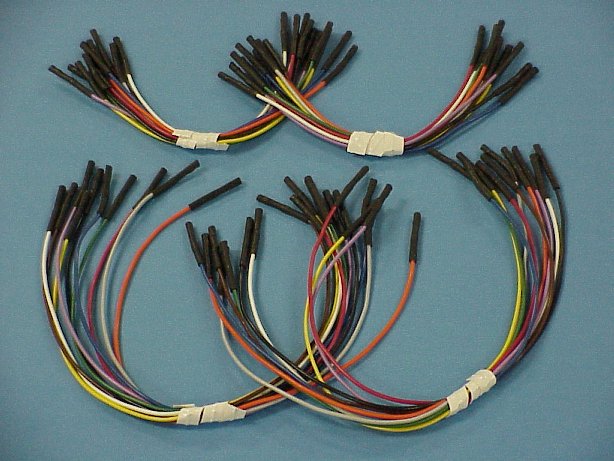

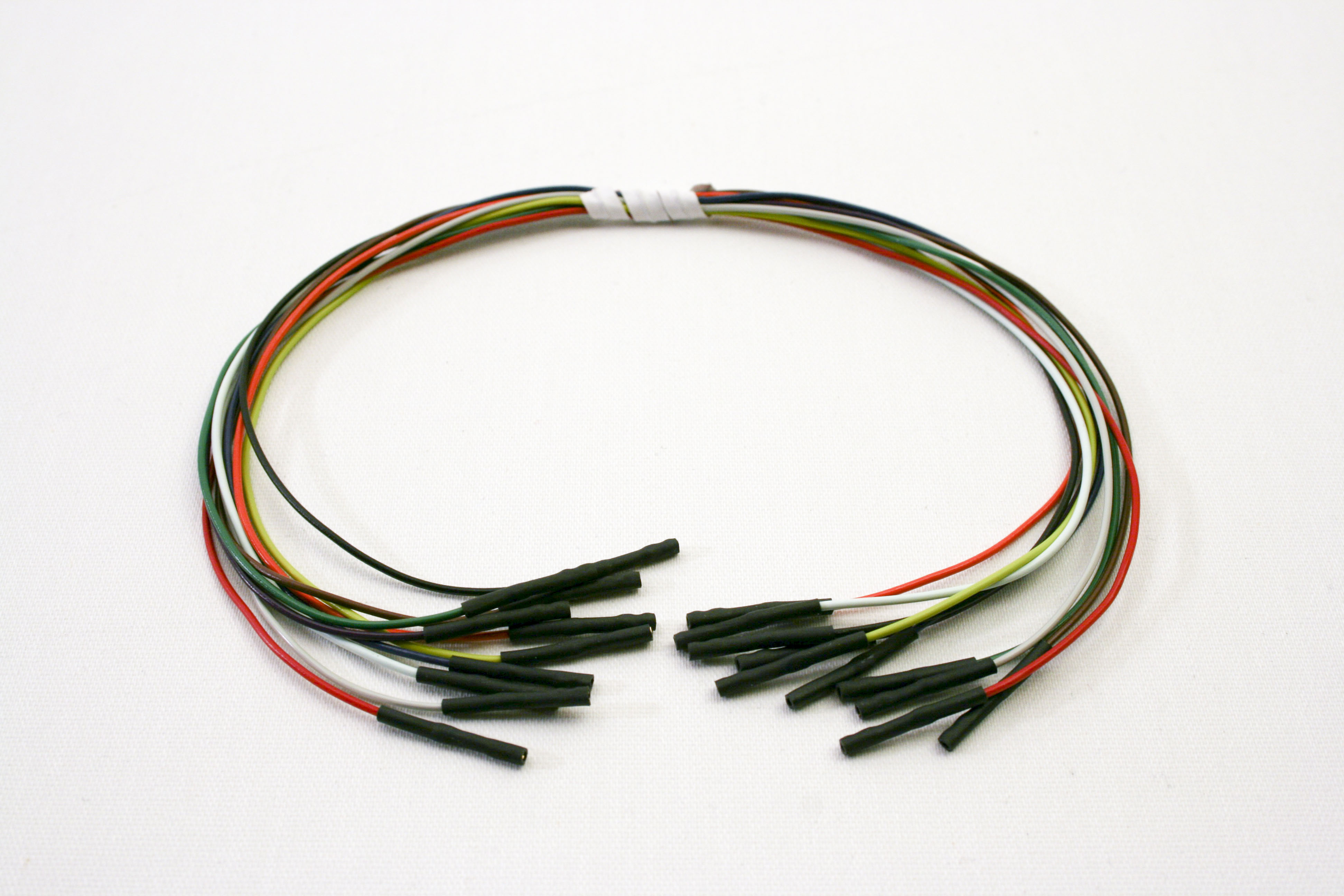

Twenty 4"wires, and twenty 8"wires.

Female to Female wires with various insulation colors to match documentation when aiding assembly and diagnose connections..

Not suitable for High Speed Digital that requires coax (RIK) or Differential IO that requires twisted pair.

Quantity Connector Type(s) Genders Angle(s)
Side A 40 DC (Jumper) F
Side B 40 DC (Jumper) F
Max Frequency:  0 GHz
Cable Length:  8 inches
Cable Structure:  Flexible (Unlimited Bend, Min Stability)
Fixture Block Type:

Item Ref Part Number QTY Description Category Qty in Stock
1G8UWZ32A2Jumper Wire Set 4" (10 pcs.) 28AWG multi-colorCblMsc
2M7VBFN2A2Jumper Wire Set 8" (10pcs.) 28AWGCblMsc
BOM Refreshed:05/11/2020 06:26 PM
