17 In Stock

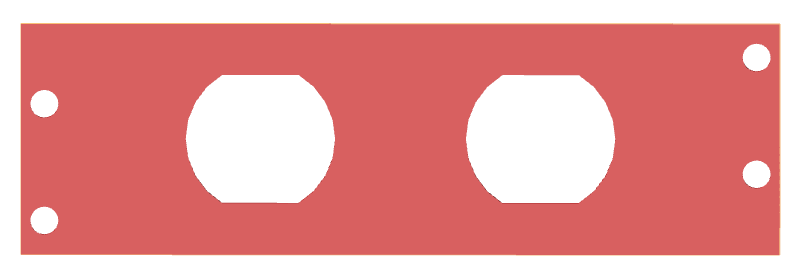

Soft Dock Resource Plate, N-Type Connector

Soft Dock, 2 N-type connectors

Part Number: RIK0271A

Estimated Restocking Time: 4-6 weeks

$40
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

Enables standard N type connections to Prober or Engineering Board. N-connector plugs not included.

A single "double width" space (equivalent to 4 inserts) on the Matrix Top Plate (RIK0214A) or in the Benchtop Side/Rear Plates (RIK0234A/RIK0235A) is required.

Item Ref Part Number QTY Description Category Qty in Stock
1M6J2JS1A4SCREW, SEMS, 4-40 X 1/4" SSHrdwr
2MRSEF51A1Clam Shell Packaging Inside Cavity 1"X1.62"X 0.688DPSppls
3MRUT9B1A1Packaging, Plastic Tube, 3/8" dia. Thin/Medium Wall,Sppls
4MRUTN01A2Packaging, Plastic Cap, 3/8" Dia. for Plastic TubingSppls
5W1MFFNYA1Insert N-Type Fixture*MchFb
BOM Refreshed:05/11/2020 06:26 PM
