Fixture, 20RF

Dual and multisite applications

Part Number: RIK0074B

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$10,800

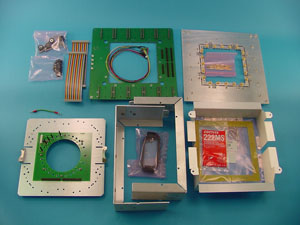

Includes Bottom plate with ramps , Active Carrier with 2 ribbon cables and 45 pogo pins/recepticles, Top plate (20 SMA) , and floating interface parts with hardware. Also includes pogo soldering tool.

Related Documents:

User account required Create new account
Product Docs
Fixture Assembly Steps - RI7100A - 30RF Flip Top (RIK0074B)

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M5YFXT1A2HANDLE 4" BLACKMchCmp
2M673SZ1A50SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
3M673YF1A4SCREW, BUTTON HEAD, 10-32 X 3/8", SSHrdwr
4M673YF1A2SCREW, BUTTON HEAD, 10-32 X 3/8", SSHrdwr
5M6J2JS1A20SCREW, SEMS, 4-40 X 1/4" SSHrdwr
6M6JGN21A4WASHER, LOCK, #10 INTERNAL TOOTHHrdwr
7M6MJ8T1A45RECEPTACLE,POGO PIN (DUT Pogo)PcbCnnct
8M6MJ8Y1A45PROBE,POGO PIN (DUT Pogo)PcbCnnct
9M8UKXC2A2Cable Assy Ribbon 40cond 6"Rbbn
10M9CLV51C1Assy, Fixture Bottom*MscAssy
11MAHYV31A1WASHER, LOCK, #8 SPLIT, SSHrdwr
12MEJFZB4C1VI harness 16", 10 pin, active*CblMsc
13MER2651A1Fixture, Top Plate Multi w/ 20 SMA*MscAssy
14MFFW391A2SCREW, FLAT PHIL, 4-40 X 1/4", 100°Hrdwr
15MGR86B1A4sandwich mount neoprene DIA5/8 L1/2 F-F 8-32MchCmp
16MGR86G1A4spring 1" wireDIA.029 5/16ODMchCmp
17MGR8721A4SCREW, BUTTON HEAD, 8-32x1/4", SSHrdwr
18MGR8751A4SCREW, SHOULDER, 3/16 DIAx .75 long 8-32 slottedHrdwr
19MGZ88J1A2Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
20MH272Y1A1Ground Wire 3"*CblMsc
21MJ6JJV3A4Pin, Fixture Stop, 0.50 x 0.80L w 10-32, Alternate to W1MFFFHAMchCmp
22RIK0083A1Pogo Alignment Tool, 20RF*CstmrKt
23W1MFCMTG2Cover, Lower, Fix DualMchFb
24W1MFCPNA1Label, Fixture Orientation arrowMchFb
25W1MFEFWA2Cover Upper Fix DualMchFb
26Y00065A11Super Fixture Carrier, Active*PcbAssy
BOM Refreshed:05/11/2020 06:22 PM
