LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 07/22/2013.
View RIKs with Limited Availability for a complete list.
Expiration Reason: RI8591A
Aditional replacements may be found by searching for RI8556B (change the REV letter) or Infrastructure - Small Cassini.

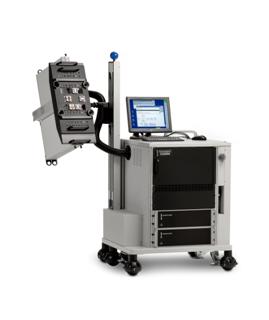

Infrastructure - Small Cassini
8 TIMs, R&D, (+2 more rack TIMs)
Part Number: RI8556B
Includes: Rack, Testhead & Instrument Clock, Manipulator, RIFL Hub, Power Supplies, Basic ATE Software (Guru + RI System Software)
Does not include EPC TIM: RI8574A, handler pod or prober interface.
Size of RI8556A Small Infrastructure:
- Height: 1590 mm (62.6 in.)
- Table Surface Height: 925 mm (36.4 in.)
- Depth: 733 mm (28.9 in.)
- Width: 853 mm (33.6 in.)
- Max Shipping Weight: 250 Kg (550 pounds)

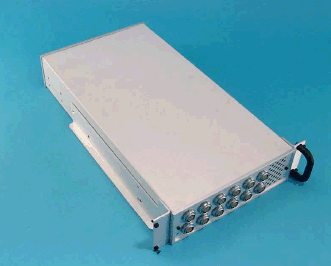

| System Controller | Infrastructure RIFL Hub |
Related Documents:
 | Cassini Footprint - 56 Small Infrastructure |
