20/40 GHz Calibration Standards Kit
Part Number: RIK0150A
In Stock: 0
Estimated Restocking Time: Contact Factory

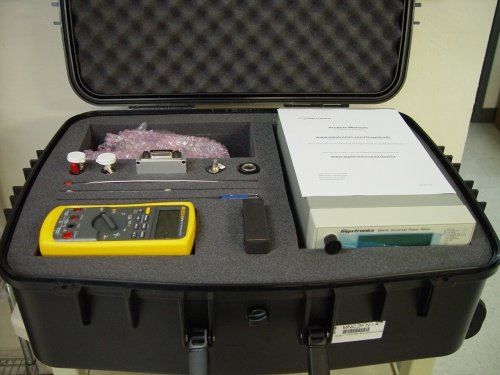

The Calibration Kit (Cal Kit) is used while calibrating an RI test system to frequencies of 40 GHz or less. It includes a Power Meter and Sensor, Digital volt meter, S Parameter Standards, Noise standard, Cables, RF Adapters, RF Attenuators. A Cassini Cal Kit consists of the Cal Standards RIK0098A. The diagnostic interface kit is sold separately and required for Calibration.
The Calibration kit needs to be calibrated annually to NIST standards. RI offers Cal Kit service as RIK0082A (for 20 Ghz cal kits)
RI usually only issues a NIST traceable calibration certificate only when a preventive maintenance and calibration (PMC) is performed. A calibration is performed when a major physical instrument is repaired or replaced, but a certificate is not issued.
 | RIK | Description |
 | 023A | RI7100A Calibration Kit |
| 130A | Cassini 8-Slot Interface Kit |
| 149A | Calibration Standards Kit, Cassini 18 GHz |
| 150A | Calibration Standards Kit, Cassini 40 GHz |
| 151A | Cassini 16-Slot Interface Kit |
Each RI Cal Kit requires annual calibrations for most instruments. If available, you can use a calibration lab at your facility or one in your local area. If not, some of the components may have to be sent to the manufacturer for calibration. Below is a listing of the Cal Kit components, Vendor Addresses and Web Sites.
Cal Kit Vendor Information: Please refer to the website for a vendor representative in your area.
| Power Meter & Sensor Gigatronics Inc. 4650 Norris Canyon Rd. San Ramon, CA 94583-1320 USA http://www.gigatronics.com/ | DMM Fluke Corporation 6920 Seaway Blvd. Everett, WA 98203 USA http://www.fluke.com/ | S Parameters Anritsu Company 490 Jarvis Dr. Morgan Hill, CA 95037-2809 USA http://www.anritsu.com/ | Noise Source NoiseCom E. 64 Midland Ave. Paramus, NJ 07652 USA http://www.NoiseCom.com/ |
Detailed Item List: (note: Labels subject to change without notice)
| Labeled As | RI PartNumber | QTY | Description | Comments | Picture |
| “CalCerts” | n/a | 1 | Cal Certs for all instruments | Deliver to your Cal Lab, note, next cal date based on when the item was pulled from inventory, not what is on the sticker. | |
| DocA | ANBM8N5A | 1 | Cal Kit Maintenance Instructions (DocID RBEH-8K93EC) | Instructions for Maintenance | |
| K01 | MNXEHS4A | 1 | USB Stick (2GB) with Cal Kits Standards Cal data | Import .GZP to use Cal Kit definition | |
| K02 | MFN6ZK1B | 1 | Multimeter Fluke 87v Series 5 | 1 Yr Cycle | |
| K03 | MMB7GT5A | 1 | Banana mini gripper leads, 24in 1 red 1 black (set) | DC Calibrations, DMM | |
| K04 | MMFPB91A | 1 | Adapter, BNC(f) to Dual Banana Plug | WF Cal | |
| K05 | M5WNBC1A | 1 | Cable, BNC(m)-BNC(m) 36in | WF DC Cal & DC power for Noise Source via tester's FIX block | |
| K06.1 | M7CJ222A | 1 | Gigatronics Power Meter 8541C | 1 Yr Cycle | |
| K06.2 | MFT08S1A | 1 | AC Line Cord IEC C13(f)-C14(m), 6ft | Power Meter power from AUX Rack | |
| K06.3 | MNXEHK4A | 1 | Cable, Gigatronics Power Sensor-N(m) | 1 Yr Cycle | |
| K06.4 | ELTH8M1A | 1 | Power Sensor 40 GHz, 2.9mm, Gigatronics 80324A | 1 Yr Cycle | |
| K06.5 | G90H7K2A | 1 | Adapter, N(m)-SMA(f), 18 GHz | Always CLEAN and tighten nut, DO NOT ROTATE adapter | |
| K06.6 | RI8502B0 | 1 | RI8502B RIFL-GPIB POD Isolated | Power Meter control | |
| K06.7 | GCBCRS2A | 1 | Cable, GPIB(m)-GPIB(m), 0.5m | Power Meter control | |
| K06.8 | GGFEGW2B | 1 | Cable, RIFL3-RIFL2, 84in (2m) | Power Meter control | |
| K07 | MJ7F5T3A | 1 | Cal Standards 40GHz, K Conn (2.9mm), Anritsu SC7777 | 2 Yr. Cycle | |
| K08 | MBH0VH1B | 4 | Adapter, #12 PKZ-SMA(f) Custom, Cal/Diag | <=40 GHz RF Cal, any RF TIM Blocks in Diag/Cal Plate | |
| K09.1 | MU3JU94A | 1 | Noise source .1-40 GHz, 20dB ENR, Micronetics NS346Ka-CS3 | 2 Yr. Cycle | |
| K09.2 | Y000BUA1 | 1 | Noise Source Cal Adapter, FIX Block | Connect to tester's FIX Port and K05 | |
| K10 | MCTR861A | 1 | LNA, Isolated, 12-20 GHz | RF System Cal | |
| K11 | MMF72X1A | 1 | Adapter, BNC(f) to SMA(m) | WF Cal, Always CLEAN and tighten nut, DO NOT ROTATE adapter | |
| K12 | M5PJG21A | 1 | Cable, Conformable, SMA(m)-SMA(m) 11" | Use caution when bending cable to fit, no sharp kinks | |
| K13 | GM73Y02A | 1 | Adapter, SMA(m)-SMA(f), 20 GHz | RF Power Cal, Always CLEAN and tighten nut, DO NOT ROTATE adapter | |
| K14 | G9AKWA2A | 2 | Adapter, K 2.9mm(f)-K 2.9mm(f) | 40+ GHz RF Cal, VERY DELICATE: Always CLEAN and tighten nut, DO NOT ROTATE adapter | |
| K15 | MRLWGX1A | 1 | Cable, 40 GHz Loopback, K Conn 2.9mm (3dB + 6” Semi-Rigid + 3dB) | Curve 180° to use, store curved (G9AKW02A with MLYM9G1A) | |
| S/N & “KitName” | MM9NAK6A | 1 | Case Transit cal kit Cassini 16 | Protects all Cal instruments | |
Related Documents:
User account required Create new account | Subject | Topic(s) | Categories | Last Modified |
 | Calibration Kit Maintenance for Cassini | Admin,Test-plan | Maintenance,Calibration,Calibrations,CalKit | 01/25 |
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MRLWK84A | 1 | Cal Kit 40 GHz < | Mntnnc |
