This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/21/2017. View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0175B
Expiration Reason: Longer Carrier harness, extended from 12" to 18"
Carrier, RIFL (B7A), 5 Modules + FIX Block
5 RIFL Modules, XL Top Plate (RIK0164A)
Part Number: RIK0175A
Estimated Restocking Time: 12+ weeks (limited)

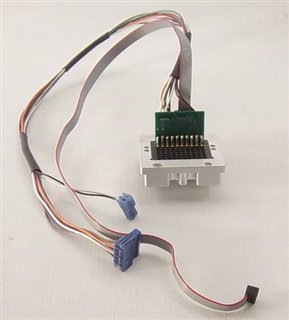

This kit includes Carrier and FIX Block with Harness to mount to the bottom plate.
Active Carrier in use with (modified) Basic Matrix Top Plate where the square carrier does not fit. Requires modified "Tall" side plates. Should only be used with RIK0164A XL Top Plate (and appropriate sides).
ATTENTION: Standard Matrix Top plate can NOT be opened (clam shell) with side plates in place!
Modifications include 2 screw holes for mounting plate that Carrier is mounted too.
Can be extended to secondary 1x5 carrier
Contact Support for assembly instructions.
|Item||Ref||Part Number||QTY||Description||Category||Qty in Stock|
|1||AS1G8Z5A||1||RIK0175A Packaging Label||Dcmnt|
|2||M6J2JS1A||4||SCREW, SEMS, 4-40 X 1/4" SS||Hrdwr|
|3||MH3FNW1A||2||SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patch||Hrdwr|
|4||MMTMKR6A||1||Fixture Power + RIFL for 1x13 6KB Carrier*||MscAssy|
|5||MS1M061A||1||Packaging Box, 12 1/8 X 9 1/8 MLR EZ Fold Multi Depth||Sppls|
|6||MT9UZM1A||1||Clam Shell Packaging Panic Plastics 4009||Sppls|
|7||W1MFFAGB||1||BRACKET CARRIER FIX||MchFb|
|8||Y000B7A1||1||Carrier Matrix 1x5 Module*||PcbAssy|
