This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/06/2010. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RI8535B1

Expiration Reason: Consistent with Model Number in PARTS

Aditional replacements may be found by searching for RI8535B (change the REV letter) or 40 Pin FSPU Digital TIM.

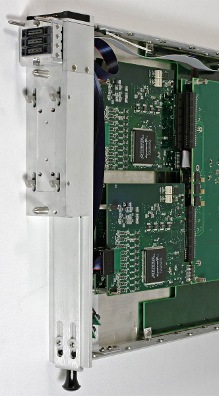

40 Pin FSPU Digital TIM

Multi-site digital testing

Part Number: RI8535B-40

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

2 each 3.4A/7V pulsed VI, Device Power Supplies,4 ea, 350ma 10v four quadrant Vis, 16 relay matrix ports, low current force and measure (1 na), 8 slow (2.5MHz) 10 v digital lines with SPI/I2C.

Full Feature High Speed Digital Subsystem for Cassini with:

Functional - vector
Structural - scan
Protocol – BIST (Built In Self Test)
User customizable pattern generation

Related Documents:

User account required Create new account

Product Docs
Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects
Product Docs
Cassini 40-120 Pin FSPU Digital TIM Product Description
