This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 02/21/2013. View RIKs with Limited Availability for a complete list.

Expiration Reason: Special Order Only

Aditional replacements may be found by searching for RI8557A (change the REV letter) or Infrastructure - Large Cassini.

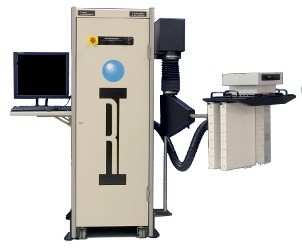

Infrastructure - Large Cassini

8 TIMs - Production, R&D (+Up to 4 Infrastructure TIMs)

Part Number: RI8557A

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

(also known as RI7100C)

Includes: Rack, Testhead & Clock, Manipulator, RIFL Hub, Power Supplies, Basic ATE Software (Guru + ROOS System Software)

Does not include EPC TIM RI8574A, handler pod or prober interface.

Size of Large Infrastructure:

  • Height: 1700 mm (66.9 in.)
  • Depth: 900 mm (35.4 in.)
  • Width: 600 mm (23.6 in.)
  • Maximum Shipping Weight: 300 Kg (660 lbs.)

  • Related Documents:

    User account required Create new account
    Product Docs
    Cassini Footprint - 57 Large Infrastructure
