LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 07/14/2015. View RIKs with Limited Availability for a complete list.

No Replacement Planned.

Expiration Reason: RI7100 bottom plate no longer being built

Aditional replacements may be found by searching for RIK0004 (change the REV letter) or Test Fixture Bottom Assembly.

Out of Stock: Ships Limited Availability: 12+ weeks ARO

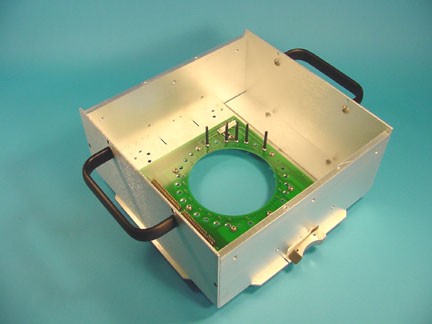

Test Fixture Bottom Assembly

Part Number: RIK0004B

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$2,533
Fixture is shipped NOT assembled



HANDLES 4" BLACK
Fixture Bottom Assembly with contoured ramps (see RIK0020A).

Fixture Bottom Plate (includes Pogo PCB)
Side Covers
Side Plates with holes for M1688 Docking
All Screws and washers needed for assembly

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M5YFXT1A2HANDLE 4" BLACKMchCmp
2M673SZ1A12SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
3M6JGN21A4WASHER, LOCK, #10 INTERNAL TOOTHHrdwr
4M9CLV51C1Assy, Fixture Bottom*MscAssy
5W1MFBSZE2COVER FIX SQR for 12RF size Top PlatesMchFb
6W1MFCBWB2FIXT,SIDE,SQR (3 hole Moto mod) for 12RF size Top PlateMchFb
BOM Refreshed:10/13/2019 06:40 PM
