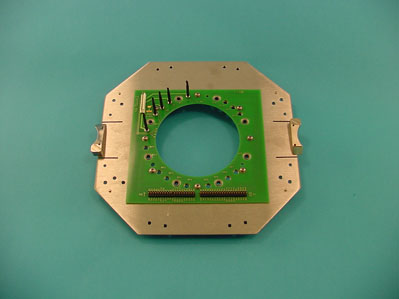

A generic test fixture designed to interface RF, DC, and wave-form connections to the DUT using SSIS to SMA cables. Includes docking ramps.
Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
---|---|---|---|---|---|---|
1 | G8FWT82A | 2 | Header 2x20 | PcbCnnct | ||
2 | M5PWB41A | 1 | HEADER,MTA-100,ST,FRIC-LOK,10-PIN | PcbCnnct | ||
3 | M6G8L41A | 4 | Standoff, 4-40 x 1/2", M/F, 1/4" Hex, SS | Hrdwr | ||
4 | M6J2JS1A | 8 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
5 | MB06Y41A | 5 | PROBE,POGO PIN .093 Spherical | Cnnctr | ||
6 | MB06YL1A | 5 | POGO RECEPTACLE .093 | Cnnctr | ||
7 | W1MFBUSB | 2 | FIXT RAMP | MchFb | ||
8 | W1MFBVGB | 1 | BOTTOM FIXT OCT/SQR ALUM | MchFb | ||
9 | W1MFBYMA | 1 | SPACER FIX POGO RING | MchFb | ||
10 | Y0003AB0 | 1 | Fixture Pogo PCB Eng Plate | PcbFb |
