LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 10/06/2011.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0074C
Aditional replacements may be found by searching for RIK0074 (change the REV letter) or Fixture, 20RF.
Fixture, 20RF
Dual and multisite applications
Part Number: RIK0074B
In Stock: 0
Estimated Restocking Time: Limited Availability: 12+ weeks

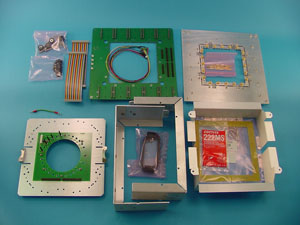

Includes Bottom plate with ramps , Active Carrier with 2 ribbon cables and 45 pogo pins/recepticles, Top plate (20 SMA) , and floating interface parts with hardware. Also includes pogo soldering tool.
Related Documents:
 | Fixture Assembly Steps - RI7100A - 30RF Flip Top (RIK0074B) |
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | ||
| 2 | M673SZ1A | 50 | SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCK | Hrdwr | ||
| 3 | M673YF1A | 4 | SCREW, BUTTON HEAD, 10-32 X 3/8", SS | Hrdwr | ||
| 4 | M673YF1A | 2 | SCREW, BUTTON HEAD, 10-32 X 3/8", SS | Hrdwr | ||
| 5 | M6J2JS1A | 20 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 6 | M6JGN21A | 4 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 7 | M6MJ8T1A | 45 | RECEPTACLE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 8 | M6MJ8Y1A | 45 | PROBE,POGO PIN (DUT Pogo) | PcbCnnct | ||
| 9 | M8UKXC2A | 2 | Cable Assy Ribbon 40cond 6" | Rbbn | ||
| 10 | M9CLV51C | 1 | Assy, Fixture Bottom* | MscAssy | ||
| 11 | MAHYV31A | 1 | WASHER, LOCK, #8 SPLIT, SS | Hrdwr | ||
| 12 | MEJFZB4C | 1 | VI harness 16", 10 pin, active* | CblMsc | ||
| 13 | MER2651A | 1 | Fixture, Top Plate Multi w/ 20 SMA* | MscAssy | ||
| 14 | MFFW391A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4", 100° | Hrdwr | ||
| 15 | MGR86B1A | 4 | sandwich mount neoprene DIA5/8 L1/2 F-F 8-32 | MchCmp | ||
| 16 | MGR86G1A | 4 | spring 1" wireDIA.029 5/16OD | MchCmp | ||
| 17 | MGR8721A | 4 | SCREW, BUTTON HEAD, 8-32x1/4", SS | Hrdwr | ||
| 18 | MGR8751A | 4 | SCREW, SHOULDER, 3/16 DIAx .75 long 8-32 slotted | Hrdwr | ||
| 19 | MGZ88J1A | 2 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | ||
| 20 | MH272Y1A | 1 | Ground Wire 3"* | CblMsc | ||
| 21 | MJ6JJV3A | 4 | Pin, Fixture Stop, 0.50 x 0.80L w 10-32, Alternate to W1MFFFHA | MchCmp | ||
| 22 | RIK0083A | 1 | Pogo Alignment Tool, 20RF* | CstmrKt | ||
| 23 | W1MFCMTG | 2 | Cover, Lower, Fix Dual | MchFb | ||
| 24 | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | ||
| 25 | W1MFEFWA | 2 | Cover Upper Fix Dual | MchFb | ||
| 26 | Y00065A1 | 1 | Super Fixture Carrier, Active* | PcbAssy |
