LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/17/2015.
View RIKs with Limited Availability for a complete list.
Expiration Reason: Alignment Pins suitable for any hanlder, prefer using fixed docking screws instead.
Aditional replacements may be found by searching for RIK0086 (change the REV letter) or Delta M1688 Allignment Pins.

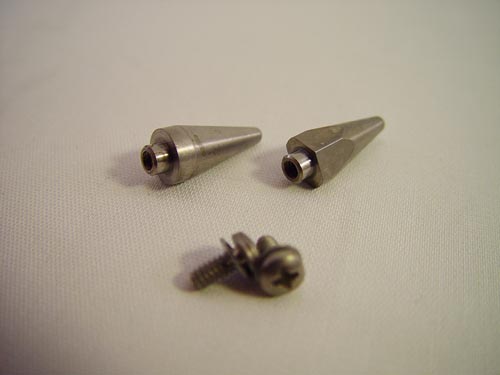

Delta M1688 Allignment Pins
Align Fixture Top Plate with Delta M1688
Part Number: RIK0086A
Used with the Delta Handler. Screws into Top Plate with square pin closest to pin 1 location.
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M6J2JU1A | 2 | SCREW, SEMS, 6-32 X 5/16" SS | Hrdwr | ||
| 2 | W1MFCJXA | 1 | PIN ALLIGN RD. M1688 SS | MchFb | ||
| 3 | W1MFCJYA | 1 | PIN ALLIGN SQR. M1688 SS | MchFb |
