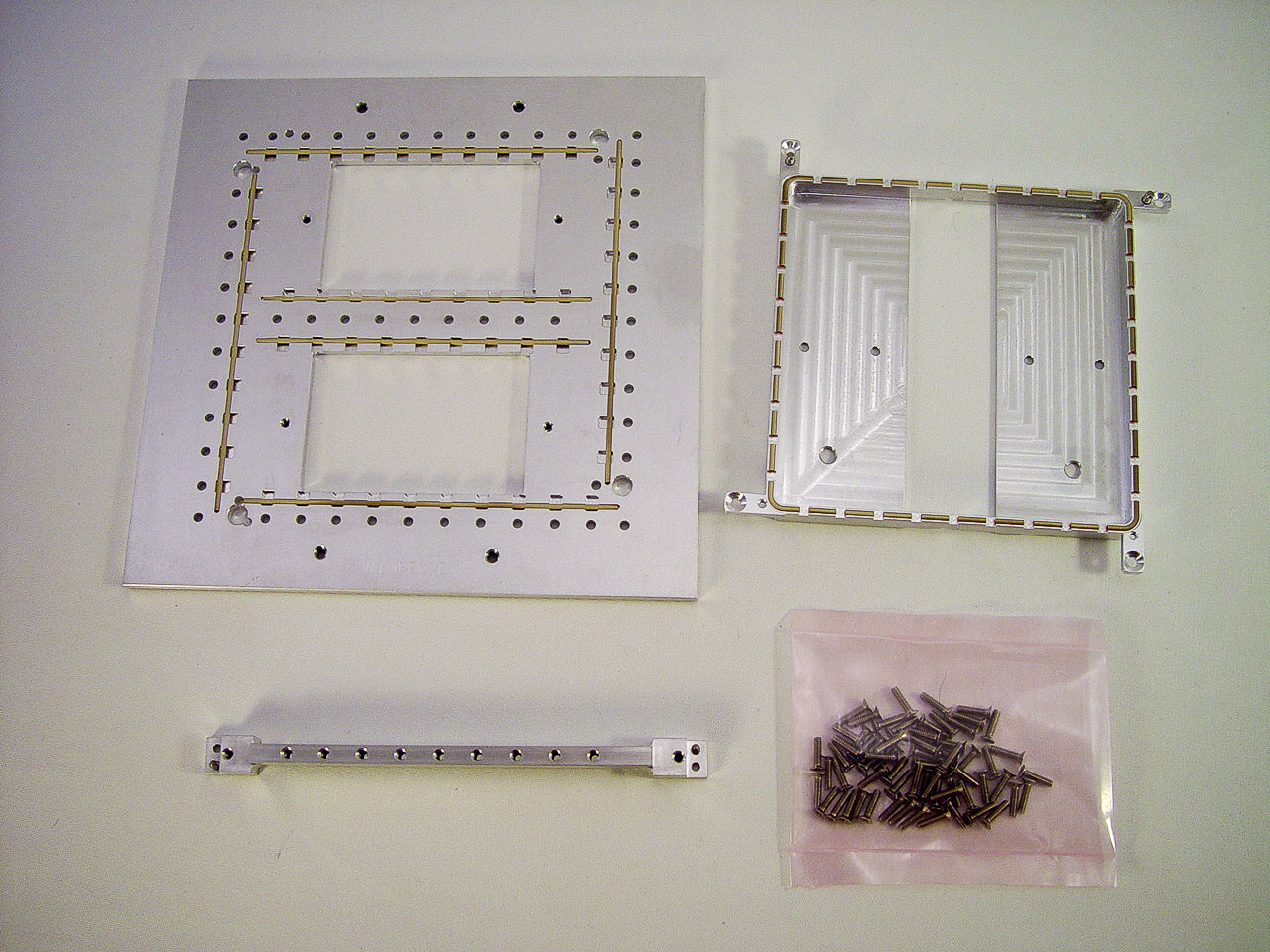

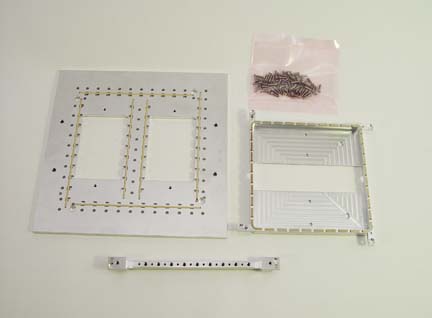

Matrix Fixture, Dual DUT Clamp & Support Kit
Dual Site Matrix Top Plates, Includes Center Rail for Inserts
Part Number: RIK0119A
Estimated Restocking Time: 1-2 weeks
NOTE:
Thread-locking fluid (RIK0204A) should be applied to screws.
DUT clamp for dual site application. Used with the RIK0163A Matrix Basic Top Plate.
DUT Interface Board (DIB) Design note: Center Rail should include all 9 mounting holes, even if no inserts are used.
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MA662W1A | 24 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | ||
| 2 | B | MFS3631A | 60 | SCREW FLAT PHIL, 4-40 X 7/16", 100°, SS | Hrdwr | |
| 3 | MNBSWY6A | 1 | ASSY DOC FOR RIK0119A | Dcmnt | ||
| 4 | W1MFCGXB | 2 | Pin pedestal align | MchFb | ||
| 5 | A | W1MFECXE | 1 | CLAMP DUAL INSERT SEIKO | MchFb | |
| 6 | C | W1MFEEHC | 1 | BAR FIX INSERT MTG* | MchFb | |
| 7 | D | W1MFEFPC | 1 | SUPPORT INSERT FIX | MchFb |
