LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 04/01/2011.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0214A
Expiration Reason: Use standard Matrix Top Plates
Aditional replacements may be found by searching for RIK0134 (change the REV letter) or Fixture Top Plate, Matrix Quad Site.
NOTE: BETA Design! New pic required after design modifications made.

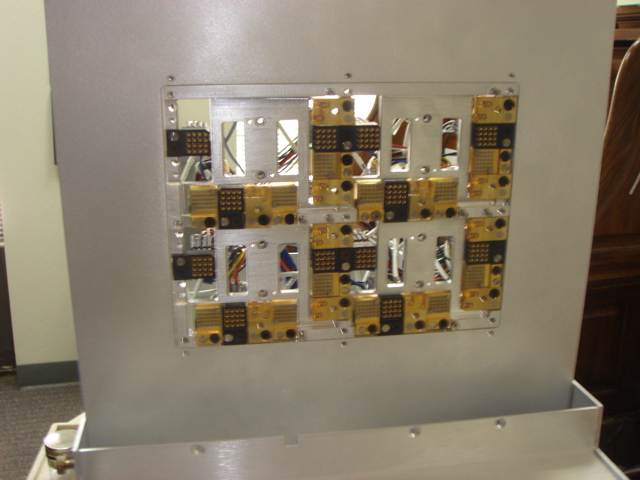

Fixture Top Plate, Matrix Quad Site
Quad Site Matrix Top Plate
Part Number: RIK0134B
In Stock: 0
Estimated Restocking Time: Limited Availability: 12+ weeks
Top plate for Quad Site testing. SUBJECT TO CHANGE! Still under development.
Contact Support for assembly instructions.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M6J2JS1A | 25 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 2 | M6JGN21A | 6 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 3 | MAHYV31A | 1 | WASHER, LOCK, #8 SPLIT, SS | Hrdwr | ||
| 4 | MFFW391A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4", 100° | Hrdwr | ||
| 5 | MGR86B1A | 4 | sandwich mount neoprene DIA5/8 L1/2 F-F 8-32 | MchCmp | ||
| 6 | MGR8721A | 4 | SCREW, BUTTON HEAD, 8-32x1/4", SS | Hrdwr | ||
| 7 | MGZ88J1A | 1 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | ||
| 8 | MH272Y1A | 1 | Ground Wire 3"* | CblMsc | ||
| 9 | MH3FNL1A | 48 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 10 | MJ6JJV3A | 4 | Pin, Fixture Stop, 0.50 x 0.80L w 10-32, Alternate to W1MFFFHA | MchCmp | ||
| 11 | MJKN071A | 4 | shoulder screw 8-32 3/16DIA 1.25L SS socket head | Hrdwr | ||
| 12 | MJNFNC2A | 1 | knob retract fixture top* | MscAssy | ||
| 13 | MKJ4HR1A | 4 | Nyliner 3/16 shaft plate thickness .315 | MchCmp | ||
| 14 | W1MFCPNA | 1 | Label, Fixture Orientation arrow | MchFb | ||
| 15 | W1MFEPFB | 2 | FILLER CASSINI16 TOP FIX* | MchFb | ||
| 16 | W1MFESBA | 1 | TOP FIX QUAD INSERT* | MchFb |
