Matrix Digital Insert, 20 pin, Coax Ribbon

Digital FSPU to DUT, 20 pins

Part Number: RIK0137A

In Stock: 0

Estimated Restocking Time: 1-2 weeks

$780
DO NOT use this for new Designs.
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

(cable not included)
FSPU Digital to DIB - Connects High Speed Digital via Coax Ribbon cable to the DUT.

This Insert CAN NOT be mounted, side-by-side, next to itself. The connection to the DC cable is too wide to be mounted side-by-side. You CAN mount OTHER Inserts directly next to the DC Insert, but just not another Digital insert.

Requires Digital Block:
Part #ApplicationsDescriptionOUT Type
Product Catalog
RIK0141ADigital TIM to Inserts (Up to QTY 4 RIK0137A) or Pogos (RIK0147A)Digital TIM Block 80 Pins with CablesDIGITAL
Product Catalog
RIK0142ADigital TIM to Inserts (Up to QTY 6 RIK0137A) or Pogos (RIK0147A)Digital TIM Block 120 Pins with CablesDIGITAL
Product Catalog
RIK0146ADigital TIM to Inserts (Up to QTY 2 RIK0137A) or Pogos (RIK0147A)Digital TIM Block 40 Pins with CablesDIGITAL

Related Documents:



Product Docs
Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects

Database 'Product Docs', View 'All Documents', Document 'Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout' Test Fixture Design Matrix Fixture Dut Interface Board Layout
← DUT

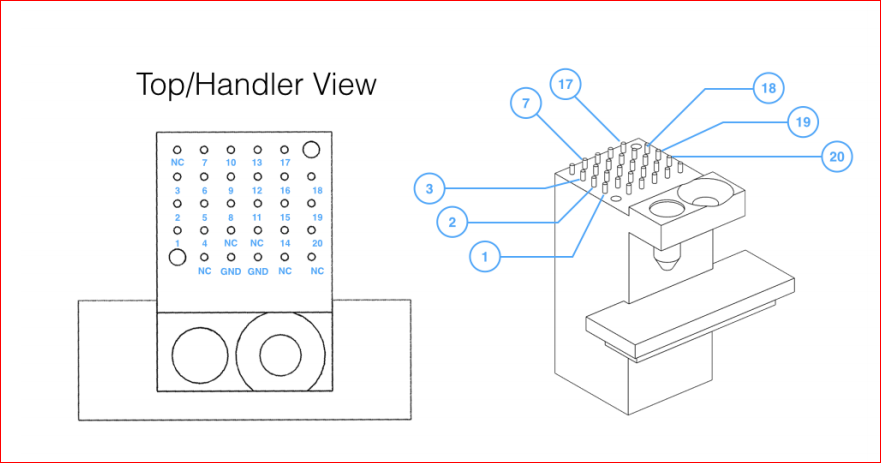

First pin pictured above is Pin 4(S101_19)



← DUT


First pin pictured above is Pin 4(S101_19)

Item Ref Part Number QTY Description Category Qty in Stock
1M673SZ1A1SCREW, FLAT PHIL, 4-40 X 1/4", SS, BLK OX, W/NYLOCKHrdwr
2MNHA471A1RIK0137A Pinout Instructions for UseDcmnt
3Y0006HA11Digital Pogo Bd*PcbAssy
BOM Refreshed:05/11/2020 06:25 PM
