Block, Digital TIM, 40 Pins with Cables

Digital TIM Block to DIB Launch Digital Inserts

Part Number: RIK0146A

Estimated Restocking Time: 1-2 weeks

$1,070
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.
Interfaces to Digital TIM - 40 pins to Up to QTY 2 RIK0137A Digital DIB launches/Inserts
A1 - Dpins1
A2 - Dpins2

Dpins1 is cable the ribbon cable closest to the center of the testhead (bottom of the picture above). Dpins2 is the cable farthest.

Larger Picture

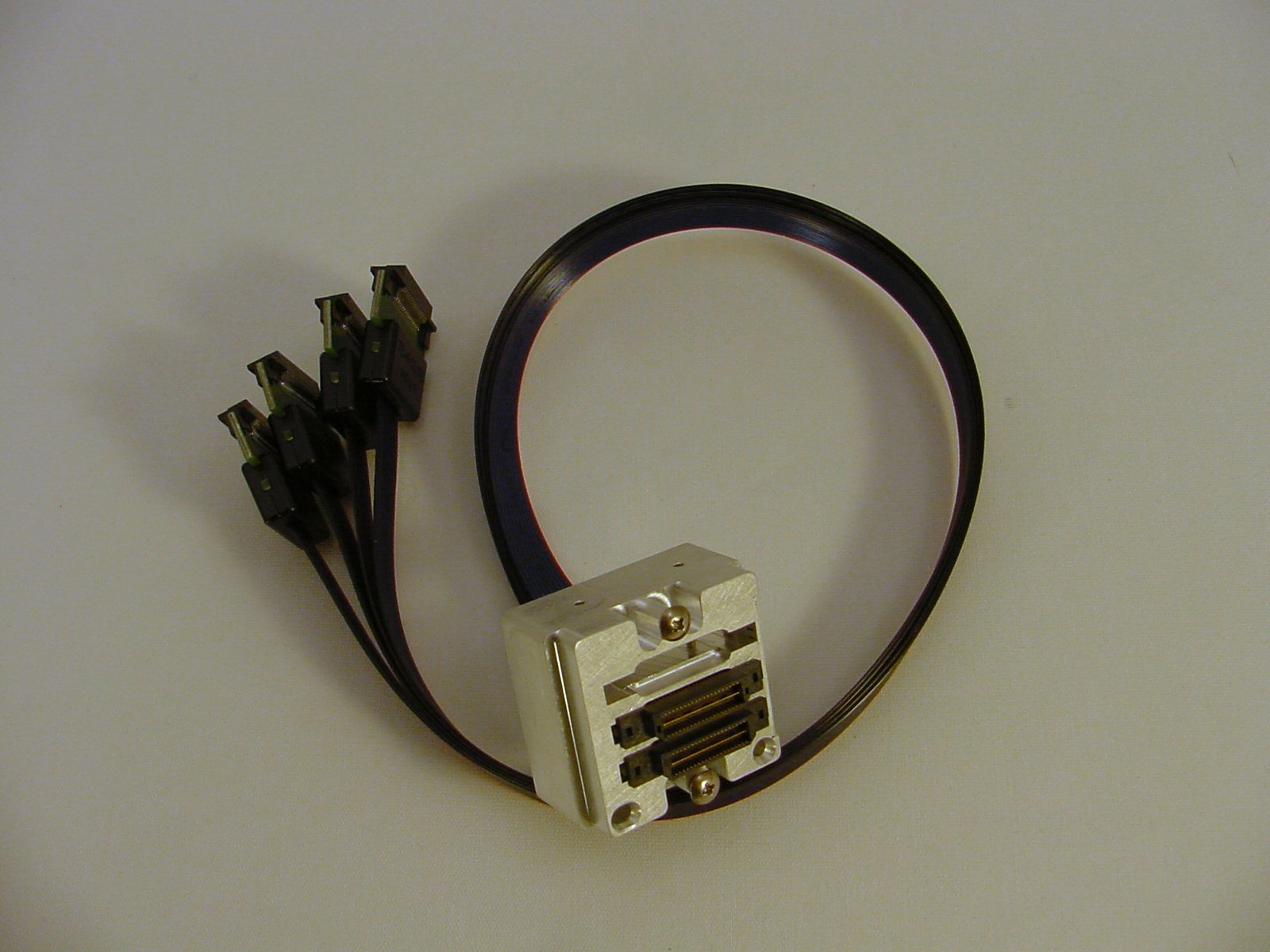

Digital Tim Interface_Fixture Side.JPG



If you would like to connect directly to an engineering board, use part SamTec QSE-020-01-F-D-A.
