LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 11/15/2011. View RIKs with Limited Availability for a complete list.

Suggested Replacement: Custom; contact factory.

Expiration Reason: Each TIM Configuration requires a custom Diag Kit, ask support for the Company Name and configuration type to get the correct model number.

Aditional replacements may be found by searching for RIK0151 (change the REV letter) or Cassini 16-Slot Diag/Cal Interface Kit.

Out of Stock: Ships 12+ weeks (limited) ARO No New Designs

Cassini 16-Slot Diag/Cal Interface Kit

One per TIM system configuration, field upgrades and repair. Used with RIK0150A, Cal Standards Kit to perform Calibrations.

Part Number: RIK0151B

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$6,170
DO NOT use this for new Designs.

Suggested Replacement: Custom; contact factory.

Includes Transit Case plus Cassini 16 Bottom Plate and a 16" conformable RF cable. 4 RF Blocks, Fixture Block, and one DC Cal Block included. Additional blocks, cables may be necessary depending on the configuration of TIMs.

Customer must provide TIM model and slot number to describe block and cable locations.

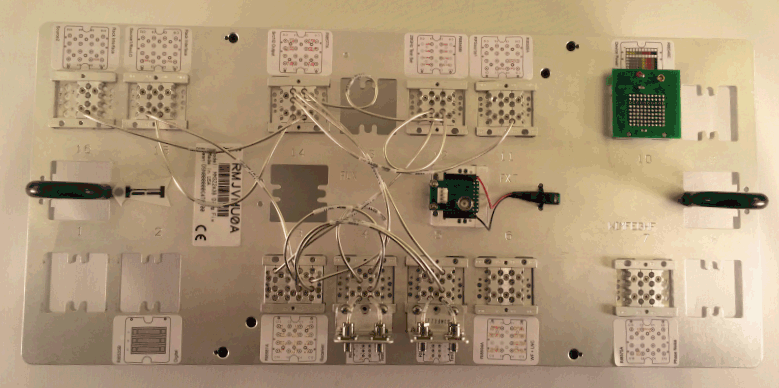

Fully Assembled (note: includes items not included in this kit)

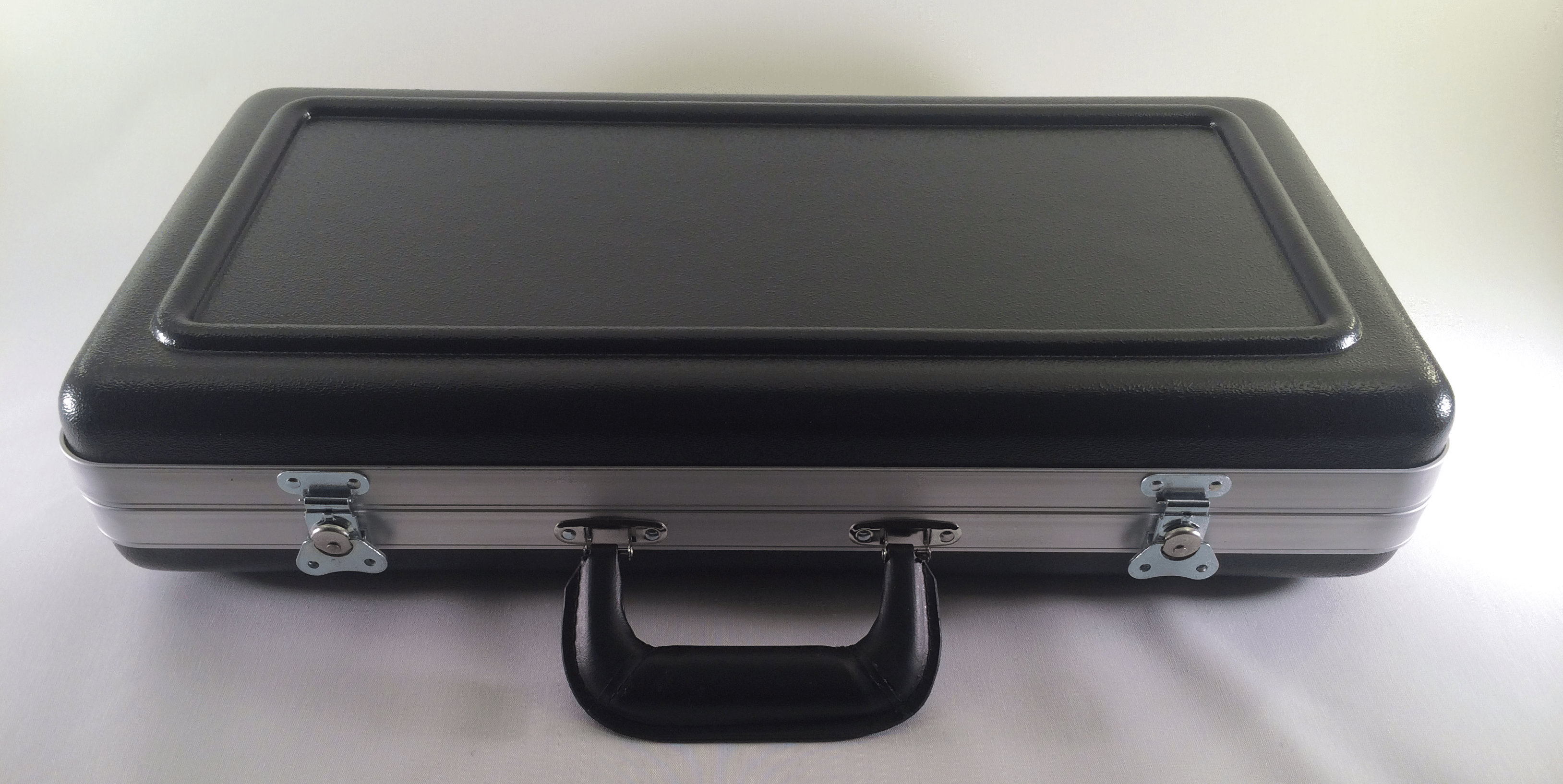

Transit Case





RIFL Block RIK0166A

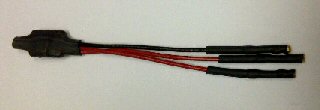

SerialID chip (ESN) - RIK0158A

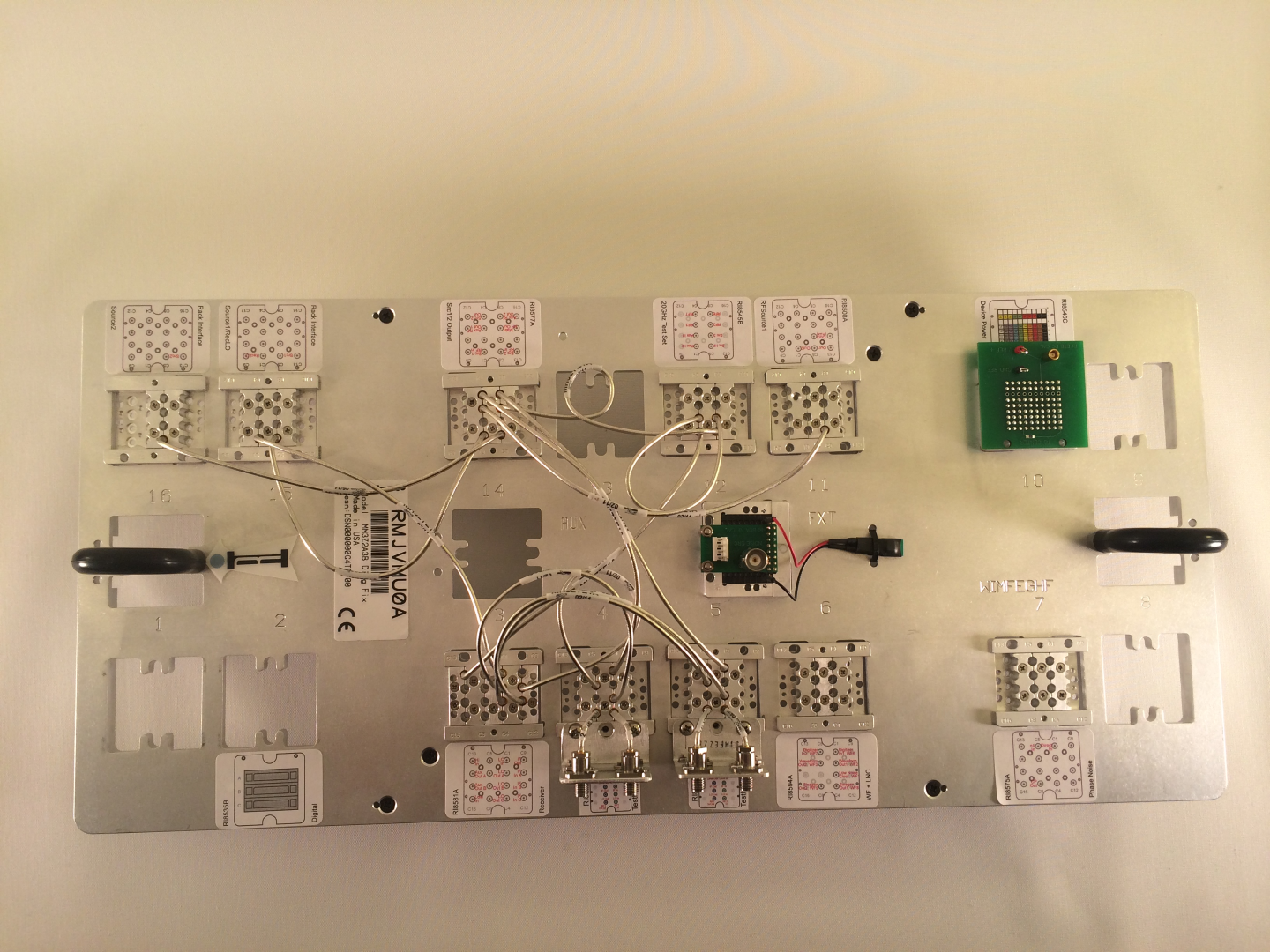

Includes Transit Case plus Cassini 16 Bottom Plate and a 16" conformable RF cable

Related Documents:

User account required Create new account
Product Docs
Fixture Hardware Design Decision Treehttp://roos.com/docs/DFES-8DX2M2?Open
Product Docs
Assembly Instructions for RIK0151A

Full assembly required. See individual RIK assembly instructions. Place blocks in correct T-locations. Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1M5PJFN1A1Coax,Confrm,SMAM-SMAM 5"Coax
2M5R1BE1A1TERMINATION, .5W,50 OHMSRF
3M6GSFV1A1ATTN,20dB,2WRF
4M6LPX11B2Vial W/Cap, 20mlMchCmp
5JM6ZXSJ1A40SCREW, FLAT PHIL, 2-56 X 3/8", SSHrdwr
6'RI DIAG KIT'M75VBJ1A1LABEL RI LOGO 2 X 2.8MchFb
7M8YFF61A4SCREW, FLAT PHIL, M4 x 8 SSHrdwr
8M93E3R1A1Cable tie, 4", naturalMchCmp
9MBH0VH1B4Adapter,#12F-SMAF CustomCoax
10DMC7SVE1B18SCREW, TRUSS PHIL, 4-40 X 3/16" SS W/PATCHLOCKHrdwr
11MG3ZCK1A2MISUMI RUBBER HANDLE 53mm Wide MountingMchCmp
12MH5ZTE1C6Coax,Confrm,#12F-#12F 8" Coax Cable Assy Longer PKZ*Coax
13MHL8MH1A1Adhesive, Loctite, 222MS Single pack, 0.5mlMchCmp
14MJUMNF4B1Matrix Fixture, Serial Number (SN) Harness, 4 wire*CblMsc
15IMK3VSY1A6SCREW FLAT PHIL 6-32 x 5/16, 100°, ssHrdwr
16MM00VJ6B1Case transit diagnostic cassini 16MscPrAss
17MMKECE1A1Labels, TIM Fixture Interface PlateMchCmp
18MMXT225A1Diagnostic Fixture Connector Block*MscAssy
19ERIK0249A1RI8546 DC Cal/Diag Block*CstmrKt
20FW1MFCPNA1Label, Fixture Orientation arrowMchFb
21BW1MFCXGE4FOOT, FIXTURE MFIX*MchFb
22CW1MFECGA2Actuator Fixture Switch, Cassini*MchFb
23HW1MFEGHK1MOD FIX BOT 16MchFb
24W1MFEJWB2Coax,Confrm,085,#12F special-#12F special 8"*Coax
25W1MFEJXE2Coax,Confrm,.085,#12F special-SMAM 8"*Coax
26AW1MFEZAG4S3 MODIFIED CAL w/ Screw Holes hyp mfixMchFb
27MW1MFEZBA4BLOCK CENTER S3 CALMchFb
28NW1MFEZCA8BLOCK MID S3 CALMchFb
29OW1MFEZEA8BLOCK SIDE S3 CALMchFb
BOM Refreshed:10/13/2019 07:06 PM
