11 In Stock

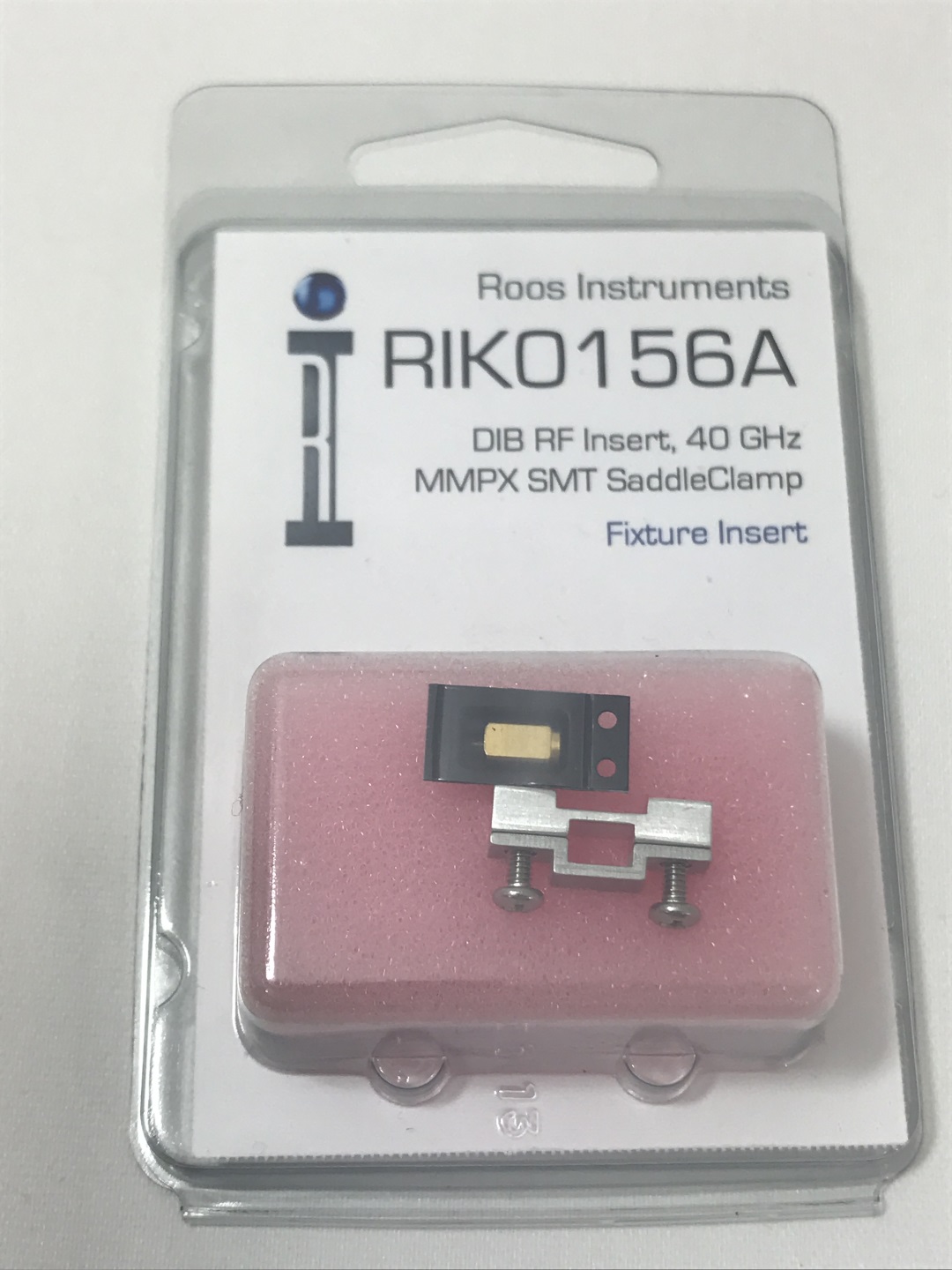

DIB Launch, 40 GHz, MMPX SMT w/ Saddle Clamp

40 GHz or High Power DIB launch with mount support

Part Number: RIK0156A

Estimated Restocking Time: 4-6 weeks

$160
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

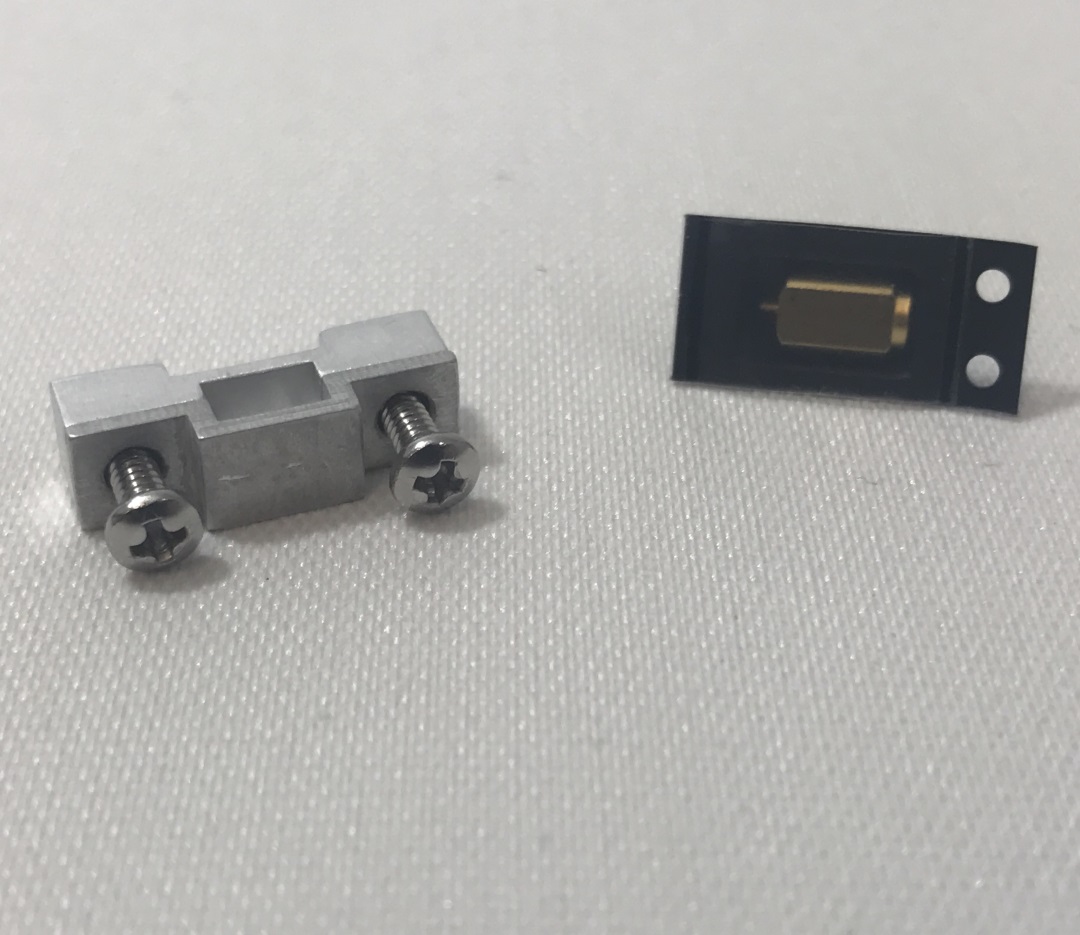

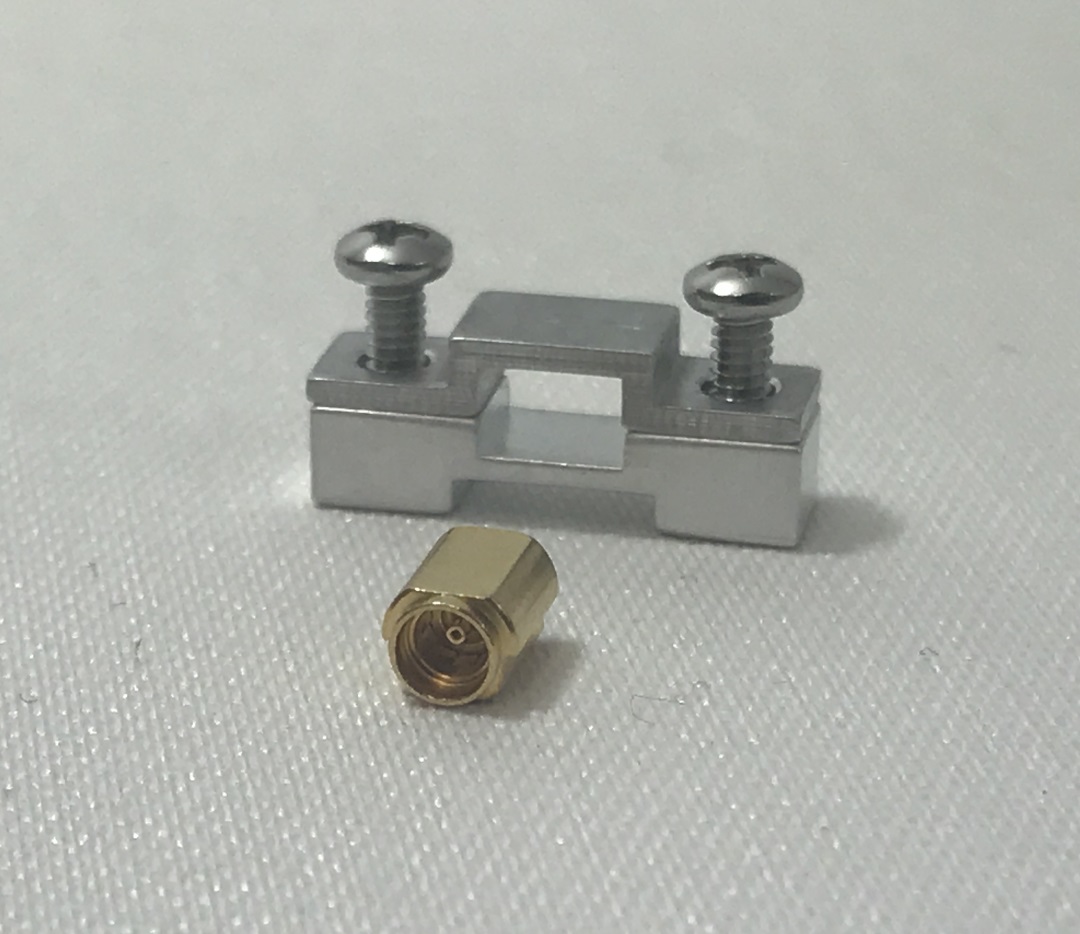

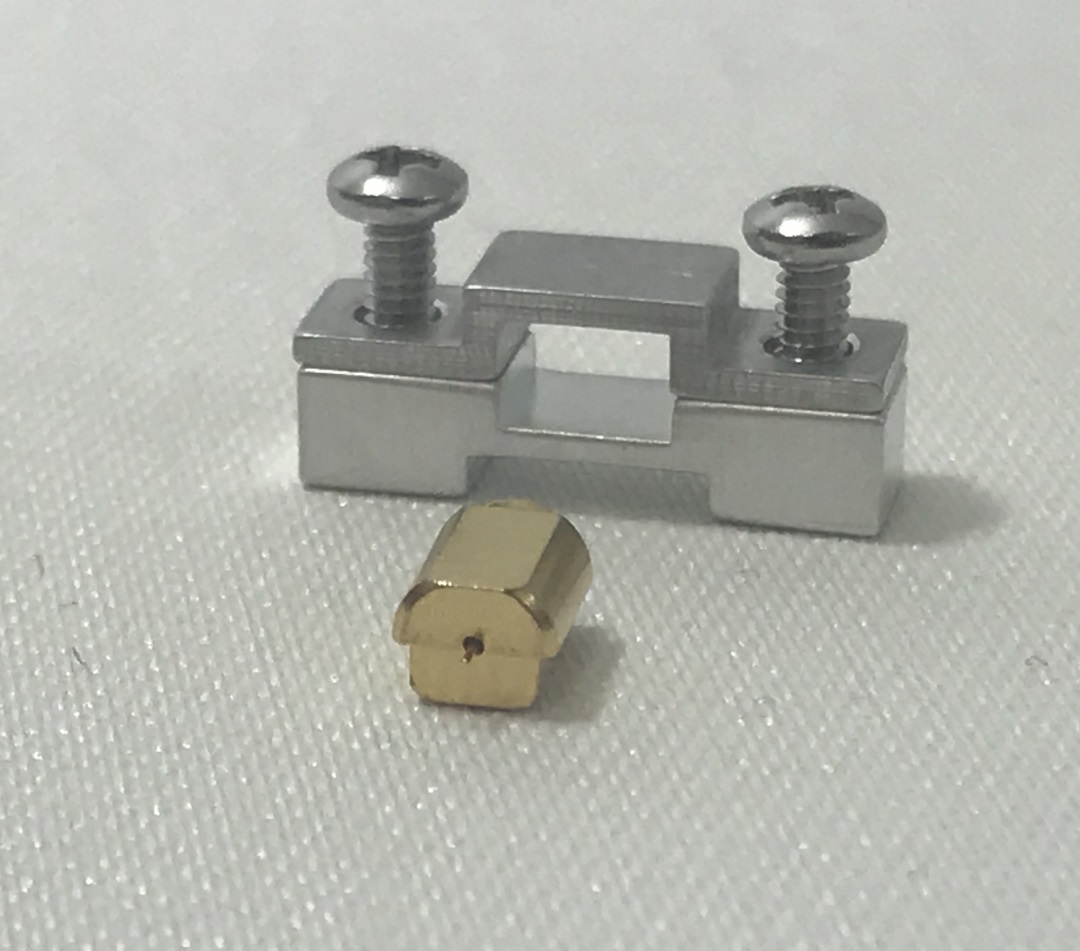

Use for each 40 GHz or High RF Power launch to the Device Interface Board (DIB). Includes mechanical support "saddle" used to hold the connector in line with the DIB.

Requires RIK0257A MMXP Extraction tool for disconnecting cable.


Related Documents:

User account required Create new account
Product Docs
Test Fixture Design - Matrix Fixture Dut Interface Board (DIB) Layout
Product Docs
Matrix Top Plate RF Interfaces



Hide details for 92_MMPX-S50-0-1 PCB Layout92_MMPX-S50-0-1 PCB Layout


92_MMPX-S50-0-1 PCB Layout
Questionnaire for PCB Layout Simulations to Huber+Suhner

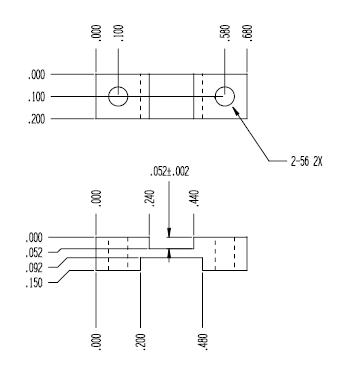

Clamp Drawings:

W1MFEUWA.pdf W1MFEUVA.pdf
Surface mount MMPX layout requirements:
Drawings used to machine the TOP and BOTTOM supports. (includes detailed measurements needed for DIB layout)

W1MFEUVA.pdfW1MFEUWA.pdf

Item Ref Part Number QTY Description Category Qty in Stock
1CEKVEYB1A1MMPX EDGE MOUNT PCB JACK 65GHZPcbCnnct
2AM6JGVE1A2SCREW, PAN PHIL, 2-56 X 1/4", SSHrdwr
3MRSEF51A1Clam Shell Packaging Inside Cavity 1"X1.62"X 0.688DPSppls
4MRURAJ1A1Packaging Foam 3/4" Anti-Static for Clamshell Packaging, GR 5GCW7Sppls
5BW1MFEUVA1SUPPORT MMPX TOPMchFb
6DW1MFEUWA1SUPPORT MMPX BOTTOMMchFb
BOM Refreshed:04/20/2019 07:13 PM
