This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/21/2017. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0175B

Expiration Reason: Longer Carrier harness, extended from 12" to 18"

Aditional replacements may be found by searching for RIK0175 (change the REV letter) or Carrier, RIFL (B7A), 5 Modules + FIX Block.

1 In Stock No New Designs

Carrier, RIFL (B7A), 5 Modules + FIX Block

5 RIFL Modules, XL Top Plate (RIK0164A)

Part Number: RIK0175A

Estimated Restocking Time: 12+ weeks (limited)

DO NOT use this for new Designs.

Suggested Replacement: RIK0175B

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

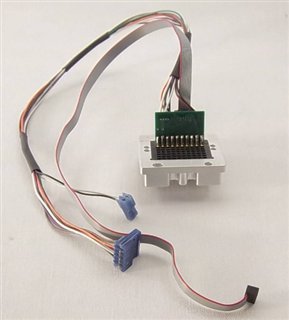

This kit includes Carrier and FIX Block with Harness to mount to the bottom plate.

Active Carrier in use with (modified) Basic Matrix Top Plate where the square carrier does not fit. Requires modified "Tall" side plates. Should only be used with RIK0164A XL Top Plate (and appropriate sides).

ATTENTION: Standard Matrix Top plate can NOT be opened (clam shell) with side plates in place!

Modifications include 2 screw holes for mounting plate that Carrier is mounted too.

Can be extended to secondary 1x5 carrier

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1AS1G8Z5A1RIK0175A Packaging LabelDcmnt
2M6J2JS1A4SCREW, SEMS, 4-40 X 1/4" SSHrdwr
3MH3FNW1A2SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patchHrdwr
4MMTMKR6A1Fixture Power + RIFL for 1x13 6KB Carrier*MscAssy
5MS1M061A1Packaging Box, 12 1/8 X 9 1/8 MLR EZ Fold Multi DepthSppls
6MT9UZM1A1Clam Shell Packaging Panic Plastics 4009Sppls

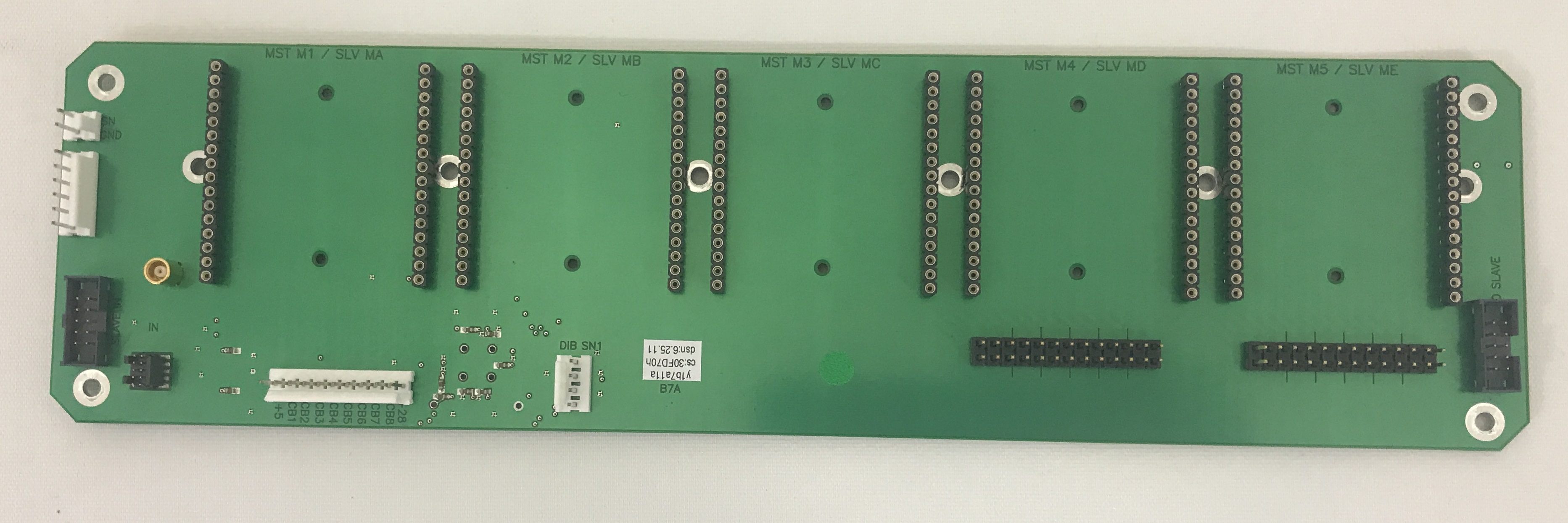

8Y000B7A11Carrier Matrix 1x5 Module*PcbAssy
BOM Refreshed:05/11/2020 06:25 PM
