LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/18/2015. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0259A

Expiration Reason: 8 hole

Aditional replacements may be found by searching for RIK0213 (change the REV letter) or QuickLock, DUT Clamp, Seiko/Epson, 8 screw.

Out of Stock: Ships 12+ weeks (limited) ARO

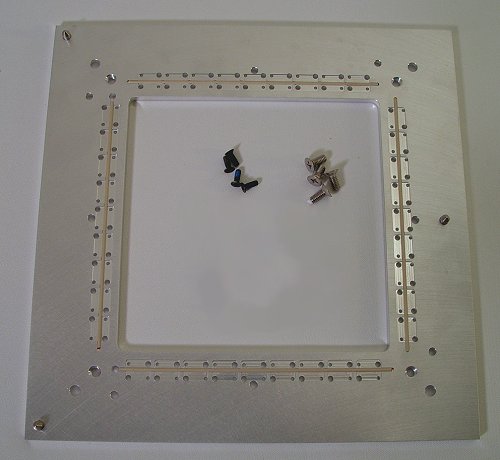

QuickLock, DUT Clamp, Seiko/Epson, 8 screw

Seiko/Epson handlers with QuickLock Top Plate, extra screws

Part Number: RIK0213B

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$720
Allows for quick swap of DIB, works only with the Quick Lock TOP PLATE RIK0214A.

Z-height designed to work with Seiko/Epson compatible handlers.

Extra screws for thicker, non-complying DUT Boards. If DUT Board thickness or insert layout causes bowing of the DUT Board, extra screws are intended to reduce DIB compliance when installed on a QuickLock Top Plate. See DIB Design Guide for thickness specifications.

Item Ref Part Number QTY Description Category Qty in Stock
1MA662W1A12Conductive Elastomer round .071Dia for FixturesMchCmp
2MH3FNW1A4SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patchHrdwr
3MNE8HT6A8Screw, Flat Phil, 8-32 X 3/8, 100°Hrdwr
4MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
5W1MFFGSF1DUT clamp Seiko Epson 8 SCREWMchFb
BOM Refreshed:10/13/2019 07:15 PM
