LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 05/25/2017. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0259A

Expiration Reason: 8 screw holes, 4 minimum

Aditional replacements may be found by searching for RIK0213 (change the REV letter) or QuickLock, DUT Clamp, Seiko/Epson.

Out of Stock: Ships 12+ weeks (limited) ARO No New Designs

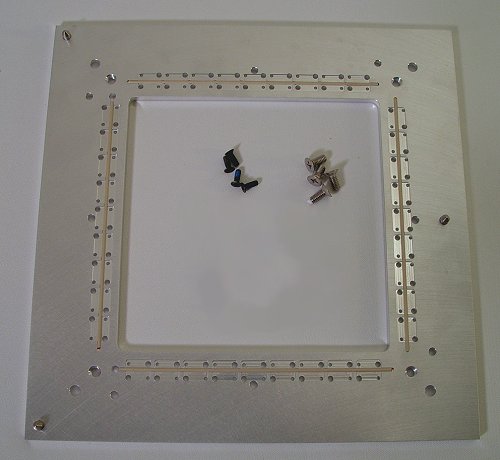

QuickLock, DUT Clamp, Seiko/Epson

Seiko/Epson handlers with QuickLock Top Plate

Part Number: RIK0213C

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$1,022
DO NOT use this for new Designs.

Suggested Replacement: RIK0259A

Allows for quick swap of DIB, works only with the Quick Lock TOP PLATE RIK0214A.

Z-height designed to work with Seiko/Epson compatible handlers.

Item Ref Part Number QTY Description Category Qty in Stock
1ARYKLA5A1RIK0213C Label Package.PDF (Sheet of 6)Dcmnt
2MA662W1A24Conductive Elastomer round .071Dia for FixturesMchCmp
3MH3FNW1A4SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patchHrdwr
4MNE8HT6A4Screw, Flat Phil, 8-32 X 3/8, 100°Hrdwr
5MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
6W1MFFGSC1DUT clamp Seiko Epson QLMchFb
BOM Refreshed:10/13/2019 07:08 PM
