This item will not be restocked when depleted and should be avoided for new designs.
View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0239A

Expiration Reason: Seiko Epson and Pin Aligned compatible handlers

Aditional replacements may be found by searching for RIK0215 (change the REV letter) or QuickLock, Pedestal Support.

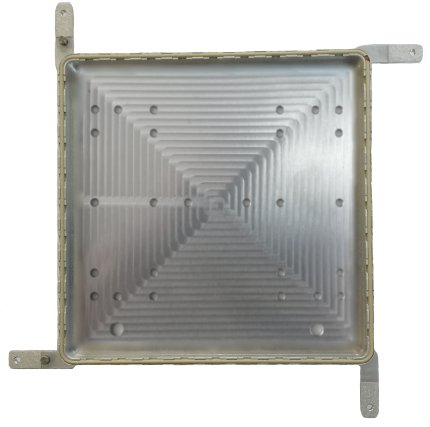

QuickLock, Pedestal Support

Mounts to QuickLock Top Plate

Part Number: RIK0215A

Estimated Restocking Time: Limited Availability: 12+ weeks


Provides mounting and physical support for Pedestal(s). and mounts to the DUT Clamp.

Requires Quick Lock RIK0214A Top Plate.

Does NOT support Pin Aligned handlers.

Item Ref Part Number QTY Description Category Qty in Stock
1ARYL1A5A1RIK0215A Label Package.PDF (Sheet of 6)Dcmnt
2MA662W1A12Conductive Elastomer round .071Dia for FixturesMchCmp
3MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
4W1MFCGXB2Pin pedestal alignMchFb
5W1MFFGWA1PED Suport single QLMchFb
BOM Refreshed:05/11/2020 06:23 PM
