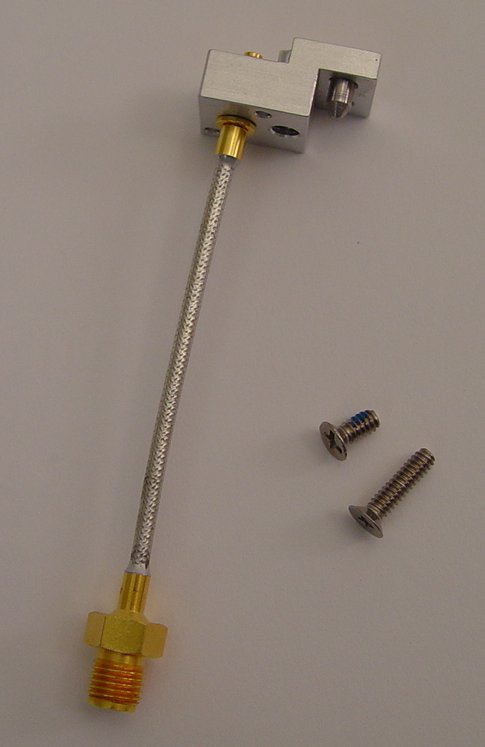

Matrix Fixture Insert, 20 GHz SSMP Fixture (Side B)

Fixture side of resource pair. Requires RIK0216A SSMP Connector. Frequency to 20GHz. Power up to CW 100 Watts.

Part Number: RIK0217B

Estimated Restocking Time: 12+ weeks (limited)

$669
DO NOT use this for new Designs.

Suggested Replacement: RIK0217C

NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

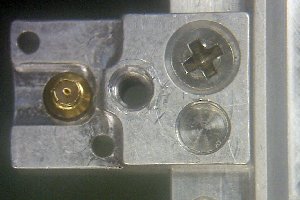

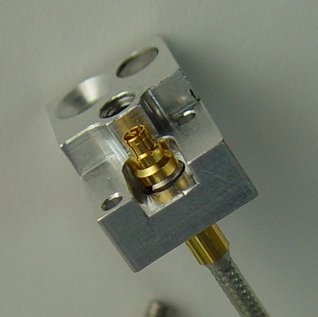

Bottom and TOP shown installed.

Board Bottom (RIK0216A)
Fixture Top (RIK0217A)



SSMP PCB Application Note_v5.pdf

For Calibration buy this
