4 In Stock

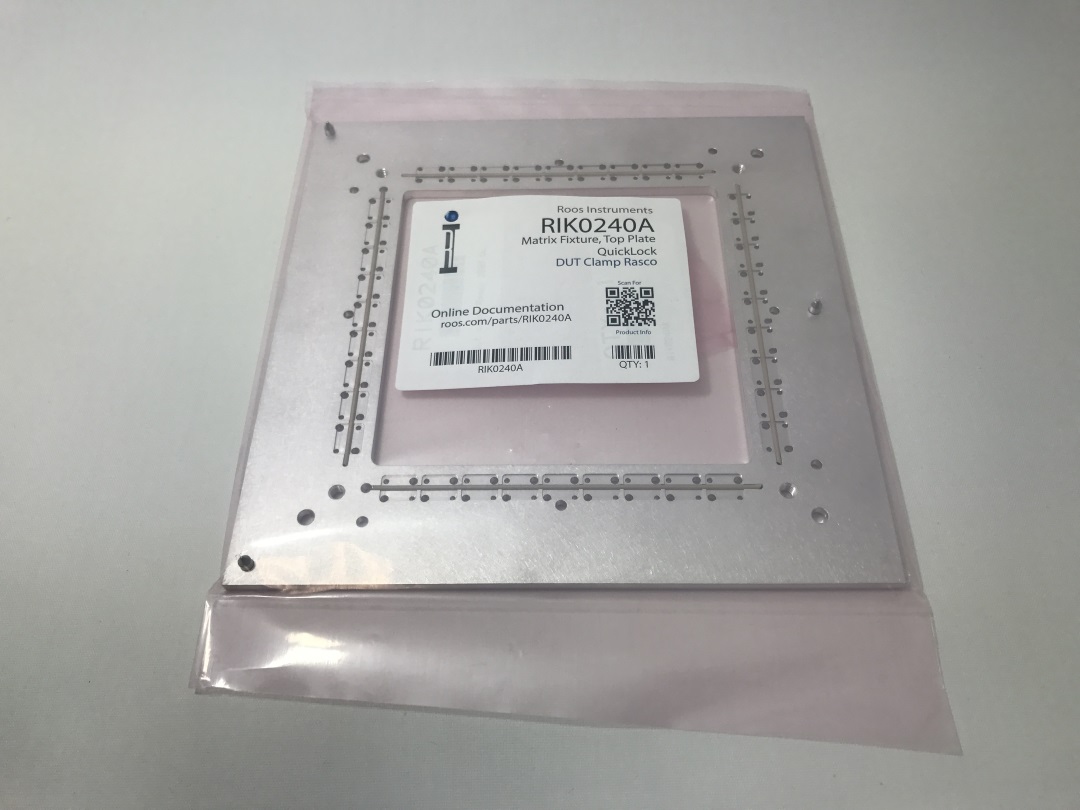

QuickLock, DUT Clamp, Rasco Quad

Part Number: RIK0240A

Estimated Restocking Time: 1-2 weeks

$1,080

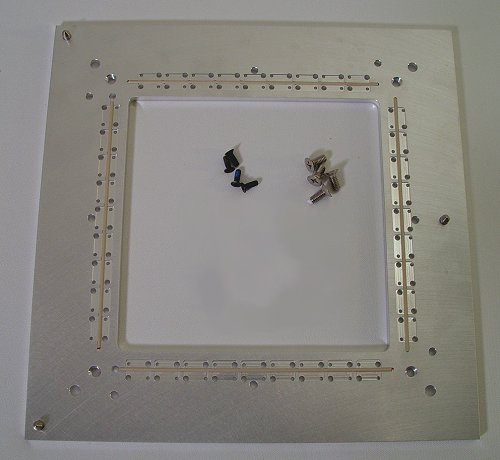

DUT Clamp used on the TOP of the Quicklock Pedestal Support. DIB is installed between this clamp and the Pedestal Support.

Item Ref Part Number QTY Description Category Qty in Stock
1ARYL075A1RIK0240A Label Package.PDF (Sheet of 6)Dcmnt
2M8A0AT1A4SCREW, FLAT PHIL, 4-40 X 5/16", SS, Blk OX, W/PatchlockHrdwr
3MA662W1A24Conductive Elastomer round .071Dia for FixturesMchCmp
4MNE8HT6A4Screw, Flat Phil, 8-32 X 3/8, 100°Hrdwr
5MNUP706B1Assy DOC for RIK: 0213 0240 0214 0215 0216 0217Dcmnt
6W1MFFEFA1Dut clamp rasco 2000 4 screw mount (4.3mm)MchFb
BOM Refreshed:11/20/2019 07:22 PM
