This document lists the pinouts for the 25 pin D-Sub female connector on the RI8517A handler pods. The Ri8517A pod is an open collector drive device. Because of the nature of OC drive, it is typical to have pull up resistors on the lines at the terminating end equipment. There are situations where the terminating equipment may not have a pullup voltage present needed for the pullup resistors. In that situation, the Ri8517A pod provides a resettable polyfuse protected +5V source. This voltage is provided on PINS 11, 13 and 14. All Ri8517A pods manufactured from July 2000 forward have this internally jumpered and enabled.
If the terminating equipment has pull up resistors tied to an appropriate (+5V) pull up voltage, a connection to PINS 11, 13 and 14 is not needed.
RI8517A
Pin # | Single Site | Dual Site | DSUB Color MFSHLX1A |  | Handler Pin |
1 | Bin 1 | Bin 1, Site 1 | BLK/RED | | |
2 | Bin 2 | Bin 2, Site 1 | RED/BLK | | |
3 | Bin 3 | Bin 3, Site 1 | BLK/WHT | | |
4 | Bin 4 | Bin 4, Site 1 | WHT/BLK | | |
5 | Bin 5 | Bin 5, Site 1 | BLK/GRN | | |
6 | Bin 6 | Bin 6, Site 1 | GRN/BLK | | |
7 | Bin 7 | Bin 7, Site 1 | BLK/BLU | | |
8 | Bin 8 | EOT Site 1 | BLU/BLK | | |
9 | NC | NC | BLK/YEL | | |
10 | SOT (*1) | SOT Site 1 (*1) | YEL/BLK | | |
11 | +5V | +5V | BLK/BRN | | |
12 | Gnd/Tester Gnd | Gnd/Tester Gnd | BRN/BLK | | |
13 | +5V Handler | +5V Handler | BLK/ORG | | |
14 | +5V | +5V | ORG/BLK | | |
15 | Do Not Use (*2) | SOT Site 2 (*1) | RED/WHT | | |
16 | NC | NC | WHT/RED | | |
17 | NC | NC | RED/GRN | | |
18 | Do Not Use (*2) | Bin 5, Site 2 | GRN/RED | | |
19 | Do Not Use (*2) | Bin 6, Site 2 | RED/BLU | | |
20 | Do Not Use (*2) | Bin 7, Site 2 | BLU/RED | | |
21 | Do Not Use (*2) | EOT Site 2 | RED/YEL | | |
22 | Bin 9 | Bin 1, Site 2 | YEL/RED | | |
23 | Bin 10 | Bin 2, Site 2 | RED/BRN | | |
24 | Bin 11 | Bin 3, Site 2 | BRN/RED | | |
25 | EOT | Bin 4, Site 2 | RED/ORG | |
- A 10K ohm resistor should be installed between each SOT (Start Of Test) pin and pin 13 (+5V for pull up) or pin 12 (ground for pull down).
- This pin is not used for single site, but is internally connected. Do not connect it to anything.
- The +5V is not protected against outside voltage. Voltages less than +5V should not damage the module but voltages over +5V will cause damage.
Pin # | RI8503A OBSOLETE |
| Single Site |
1 | Bin 1 |
2 | Bin 2 |
3 | Bin 3 |
4 | Bin 4 |
5 | Bin 5 |
6 | Bin 6 |
7 | Bin 7 |
8 | Bin 8 |
9 | NC |
10 | SOT (2) |
11 | Clamp Voltage (1) |
12 | Gnd/Tester Gnd |
13 | +5V/NC |
14 | +5V/NC |
15 | NC |
16 | NC |
17 | NC |
18 | NC |
19 | NC |
20 | NC |
21 | NC |
22 | Bin 9 |
23 | Bin 10 |
24 | Bin 11 |
25 | EOT |

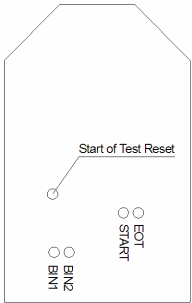

Handler Pod Diagram

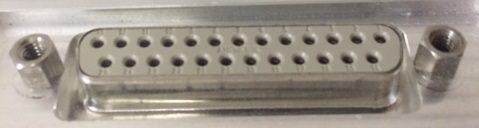

Female Pin 1 Red (top right) to pin 13 (top left), Pin 14 (bottom right) to Pin 25 (bottom left).
Cable requires Male DB-25 connector on this end, contact Handler/Prober manufacturer for other end.
| Subject | Web Address (URL) |
 | Handler POD Custom Cable 25 Pin D-SUB Color Code (Part MFSHLX1A) | http://roos.com/docs/DFES-4ZPQUF?Open |
Internal wiring schematic.
Rev 8517A Pods
Rev 8517B Pods
