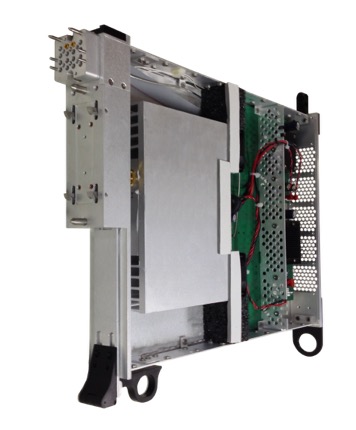

Power Amplifier, Generic TIM

Custom designed Power Amp

Part Number: RI8603A

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

This generic TIM can be customized with any specific Power Amp board.

Includes heat sink, power supply, cables with RI Supported calibration plans. Option to include Relay if required.

TIM is NOT covered by RI Support Contract

Related Documents:

User account required Create new account
Will work with any single power amplifier with a voltage supply of 10-24V at MAX 150W DC. Set via resistor.


Mechanical dimensions must fit 6x 3.5 x1.2 inches (similar to Mini Circuits ZHL-30W-252 )

Product Docs
Initialize Cal data for a RI8603A Generic PA TIM
Product Docs
Installing and using a Power Amp with the RI8603 Generic PA TIM

Product Docs
Initialize Cal data and Wear Factors for a new RI8603A Generic PA TIM

TIM is NOT covered by RI Support Contract
