LIMITED AVAILABILITY
This item will not be restocked when depleted and should be avoided for new designs.
View RIKs with Limited Availability for a complete list.
Aditional replacements may be found by searching for MHFREC1 (change the REV letter) or 20RF Fixture Bottom Plate, Carrier and Sides.
(NO TOP PLATE, POGO PINS, or POGO PIN TOOL)

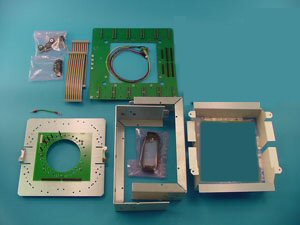

20RF Fixture Bottom Plate, Carrier and Sides
For a RI7100A Fixture, requires a custom top plate
Part Number: MHFREC1A
In Stock: 0
Estimated Restocking Time: 2-3 weeks
Includes Bottom plate with ramps , Active Carrier with 2 ribbon cables, and floating interface parts with hardware.
Does NOT includes pogo soldering tool, and 45 pogo pins/receptacles, Top plate (20 SMA) (see RIK0074B)
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | M5YFXT1A | 2 | HANDLE 4" BLACK | MchCmp | ||
| 2 | M673YF1A | 4 | SCREW, BUTTON HEAD, 10-32 X 3/8", SS | Hrdwr | ||
| 3 | M6J2JS1A | 20 | SCREW, SEMS, 4-40 X 1/4" SS | Hrdwr | ||
| 4 | M6JGN21A | 4 | WASHER, LOCK, #10 INTERNAL TOOTH | Hrdwr | ||
| 5 | M8UKXC2A | 2 | Cable Assy Ribbon 40cond 6" | Rbbn | ||
| 6 | M9CLV51C | 1 | Assy, Fixture Bottom* | MscAssy | ||
| 7 | MAHYV31A | 1 | WASHER, LOCK, #8 SPLIT, SS | Hrdwr | ||
| 8 | MEJFZB4E | 1 | VI harness 16", 10 pin, active* | CblMsc | ||
| 9 | MFFW391A | 2 | SCREW, FLAT PHIL, 4-40 X 1/4", 100° | Hrdwr | ||
| 10 | MGR86B1A | 4 | sandwich mount neoprene DIA5/8 L1/2 F-F 8-32 | MchCmp | ||
| 11 | MGR86G1A | 4 | spring 1" wireDIA.029 5/16OD | MchCmp | ||
| 12 | MGR8721A | 4 | SCREW, BUTTON HEAD, 8-32x1/4", SS | Hrdwr | ||
| 13 | MGR8751A | 4 | SCREW, SHOULDER, 3/16 DIAx .75 long 8-32 slotted | Hrdwr | ||
| 14 | MGZ88J1A | 2 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | ||
| 15 | MH272Y1A | 1 | Ground Wire 3"* | CblMsc | ||
| 16 | MH3FNL1A | 50 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | ||
| 17 | W1MFEGJF | 2 | Cover, Lower LONG Fix Dual, 8 SLOT | MchFb | ||
| 18 | W1MFEGKF | 2 | Cover Upper LONG Fix Dual, 8 SLOT | MchFb | ||
| 19 | Y00065A1 | 1 | Super Fixture Carrier, Active* | PcbAssy |
