LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 09/18/2017. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0217B

Expiration Reason: Added spring for better blind mate connections

Aditional replacements may be found by searching for RIK0217 (change the REV letter) or Matrix Fixture Insert, 20 GHz SSMP (Fixture Side).

Out of Stock: Ships 12+ weeks (limited) ARO

Matrix Fixture Insert, 20 GHz SSMP (Fixture Side)

Fixture side of resource pair. Requires RIK0216A SSMP Connector. Frequency to 20GHz. Power up to CW 100 Watts.

Part Number: RIK0217A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$720
NOTE: Thread-locking fluid (RIK0204A) should be applied to screws.

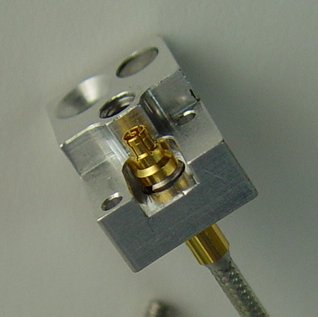

Bottom and TOP shown installed.

Board Bottom (RIK0216A)

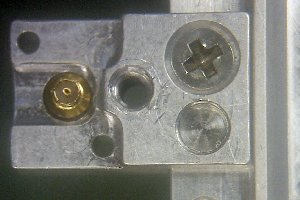

Fixture Top (RIK0217A)



SSMP PCB Application Note_v5.pdf

For Calibration buy this
