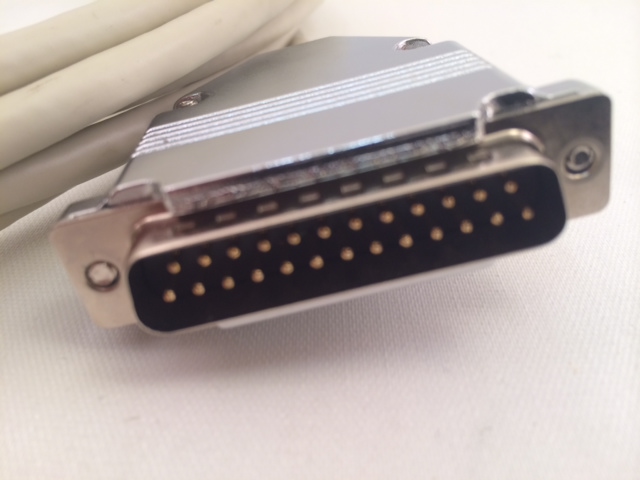

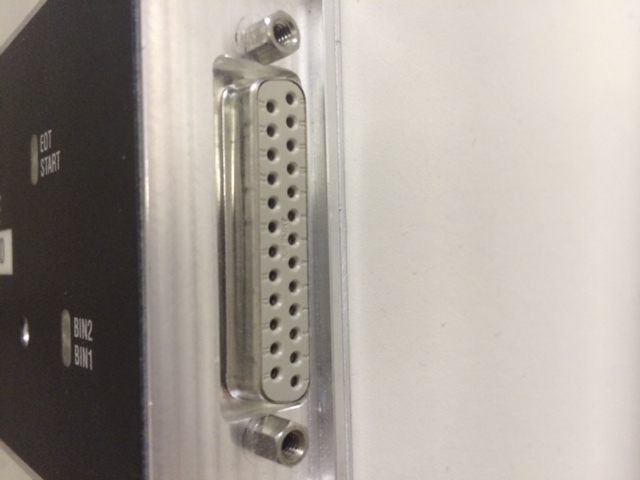

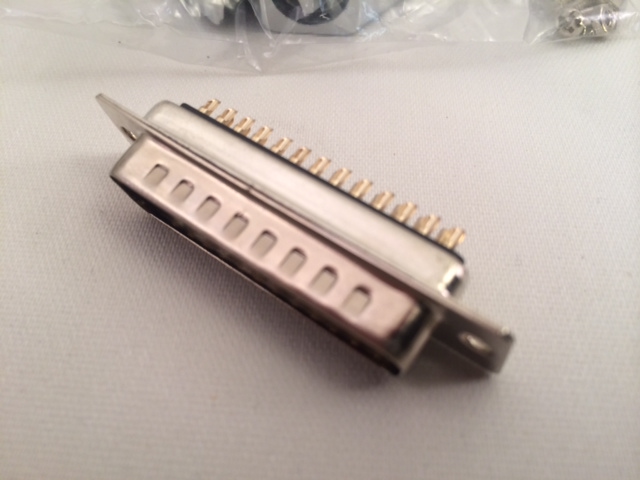

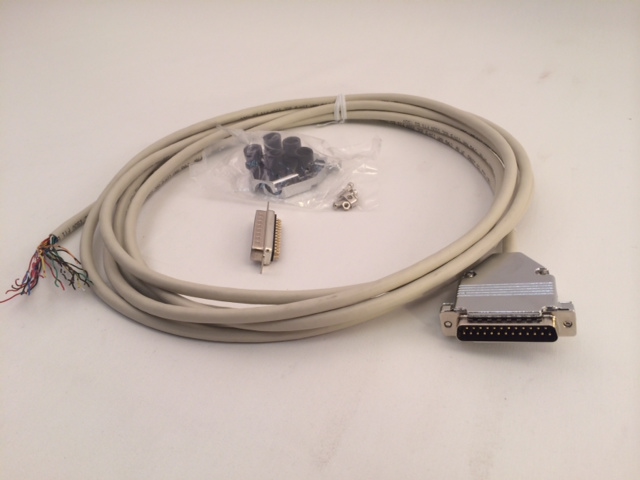

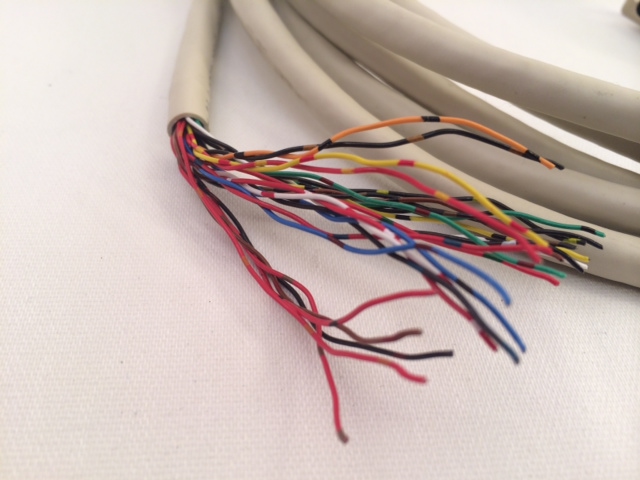

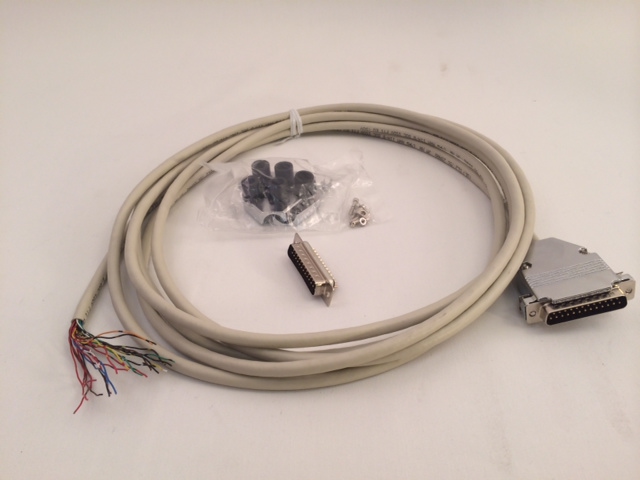

Use this to create custom Parallel Handler POD cables. D-SUB Female to pigtails with D-SUB Female connector assembly. Solder wires, 10k resistors (not provided), to the appropriate SOT, BIN# pins on the handler. Use the Manufacturer provided documentation to design a cable assembly. The Handler POD can be programmed to work with any combination of +/- voltage and control pins.
Related Documents:User account required Create new account
|Handler Cable 25 Pin D-SUB Color Code (Part MFSHLX1A)|
Contact Support for assembly instructions.
