LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 01/19/2018. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0298A

Expiration Reason: 18" cables shown to have repeatability issues, 20" cables made from different vendor without any issues

Aditional replacements may be found by searching for RIK0180 (change the REV letter) or RF Cable, Flex, PKZ#12(f)-MCX(m), 18".

Out of Stock: Ships 12+ weeks (limited) ARO

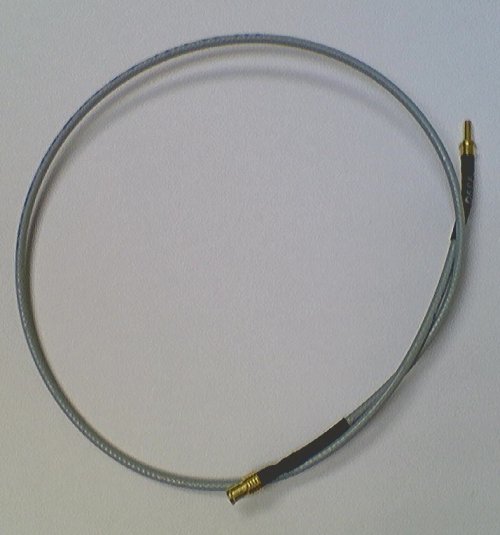

RF Cable, Flex, PKZ#12(f)-MCX(m), 18"

MCX Modules (up to 12 GHz)

Part Number: RIK0180A

In Stock: 0

Estimated Restocking Time: 12+ weeks (limited)

$120

Fixture RF Cable Kit. Used to go from RF Blocks to modules or DUT launches in Cassini fixtures. Flexible insulated cable. To be used with the RF block (RIK0103A).

Order RIK0101B for QTY 6
Quantity Connector Type(s) Genders Angle(s)

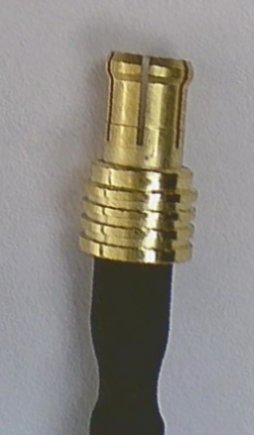

Side A 1 PKZ #12 F

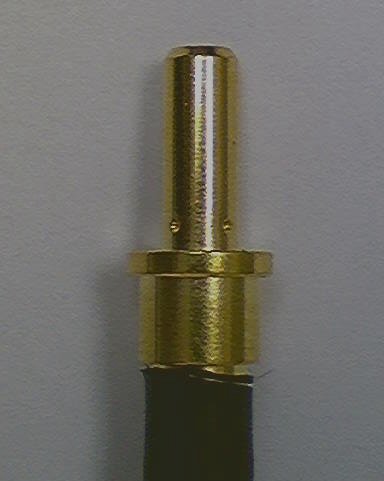

Side B 1 MCX M
Max Frequency:  12 GHz
Cable Length:  18 inches
Cable Structure:  Flexible (Unlimited Bend, Min Stability)
Fixture Block Type:

Item Ref Part Number QTY Description Category Qty in Stock
1MGPHHW1C1Coax,SemFlex,#12F-MCXM 18" Coax Cable Assy LONGER PKZ*Coax
BOM Refreshed:05/11/2020 06:23 PM
