LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/12/2016. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0113A

Expiration Reason: Improved Functionality

Aditional replacements may be found by searching for RIK0002 (change the REV letter) or WF Cable, Flex, DIN(f)-90° MCX(m), 12" (qty 5).

No New Designs

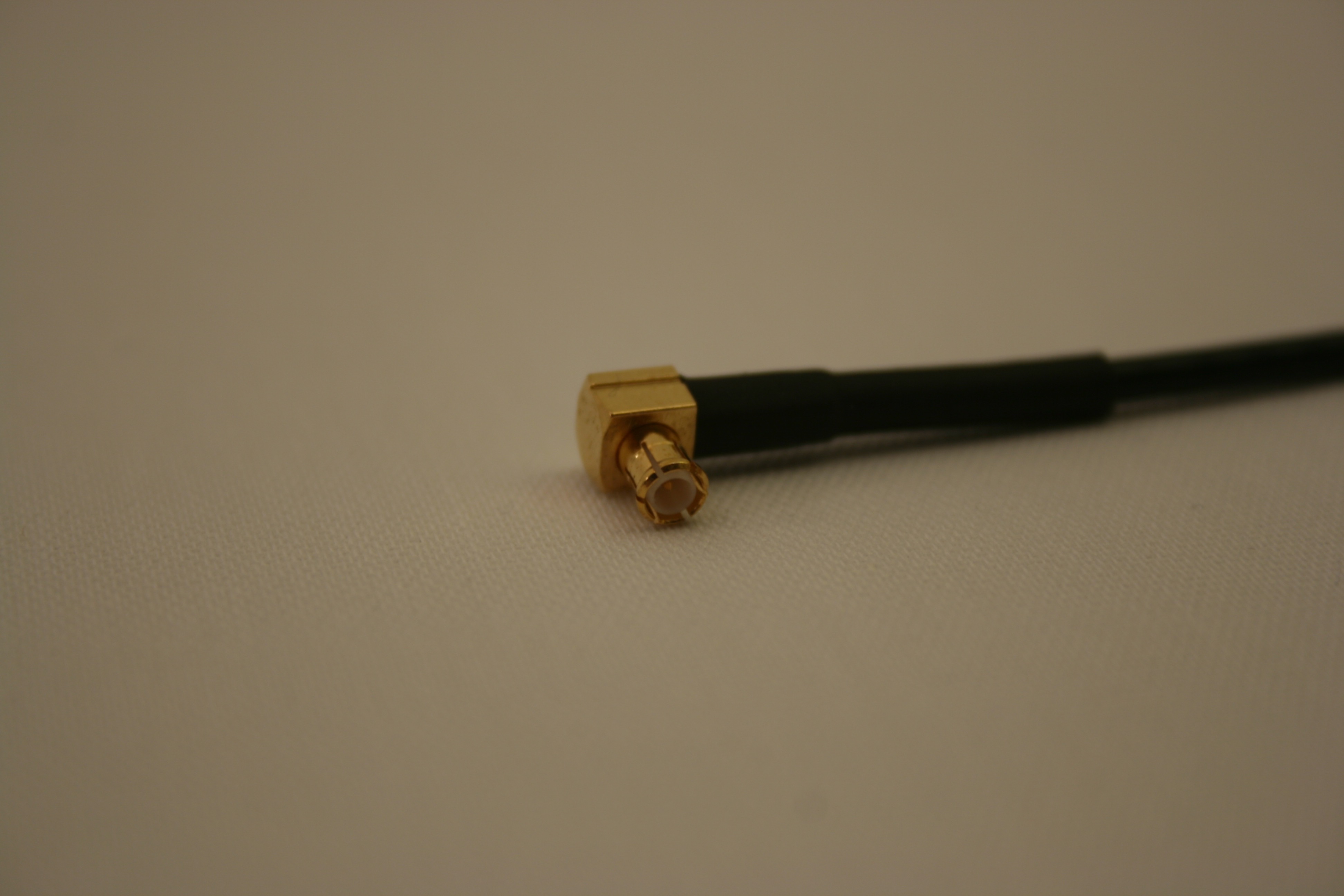

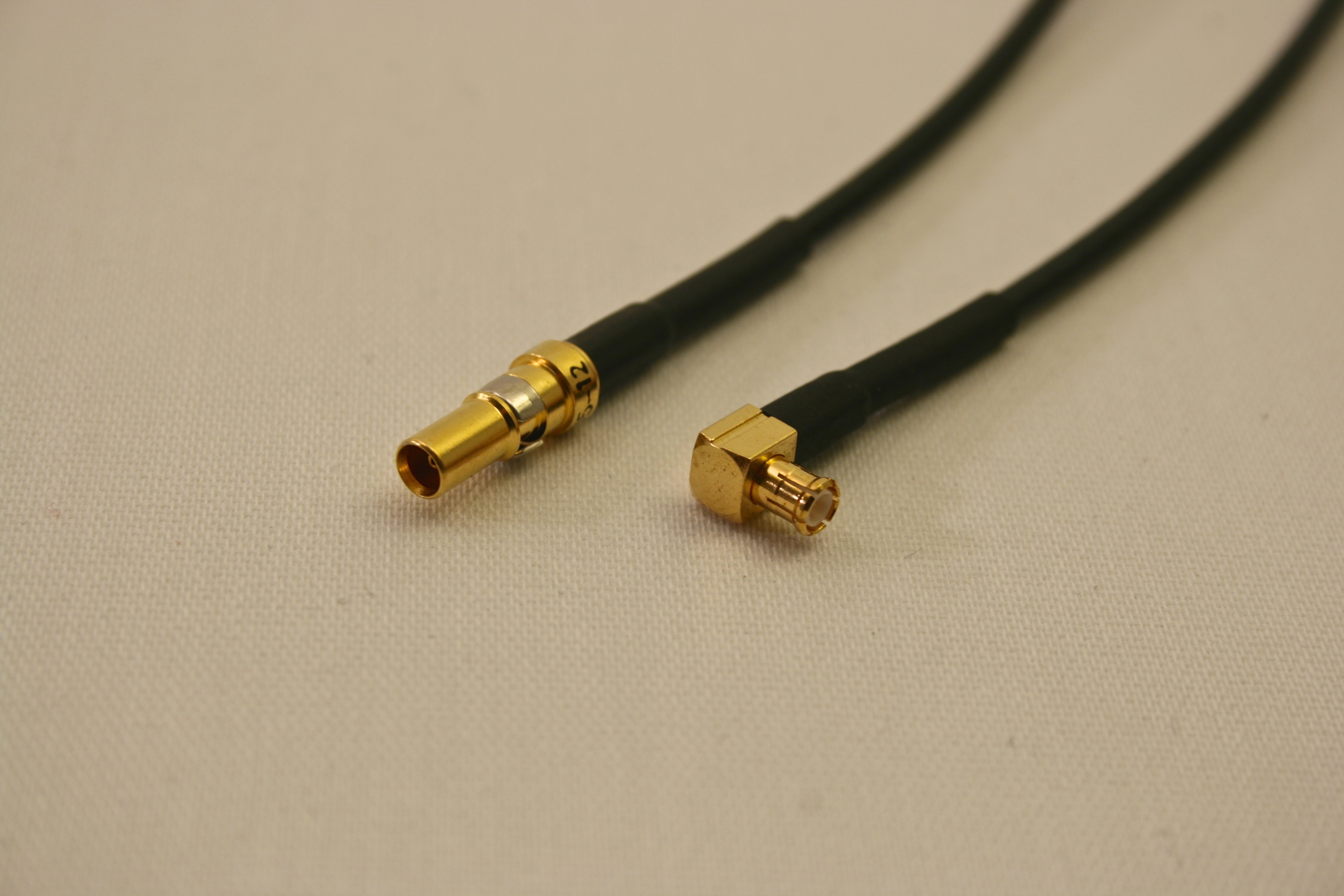

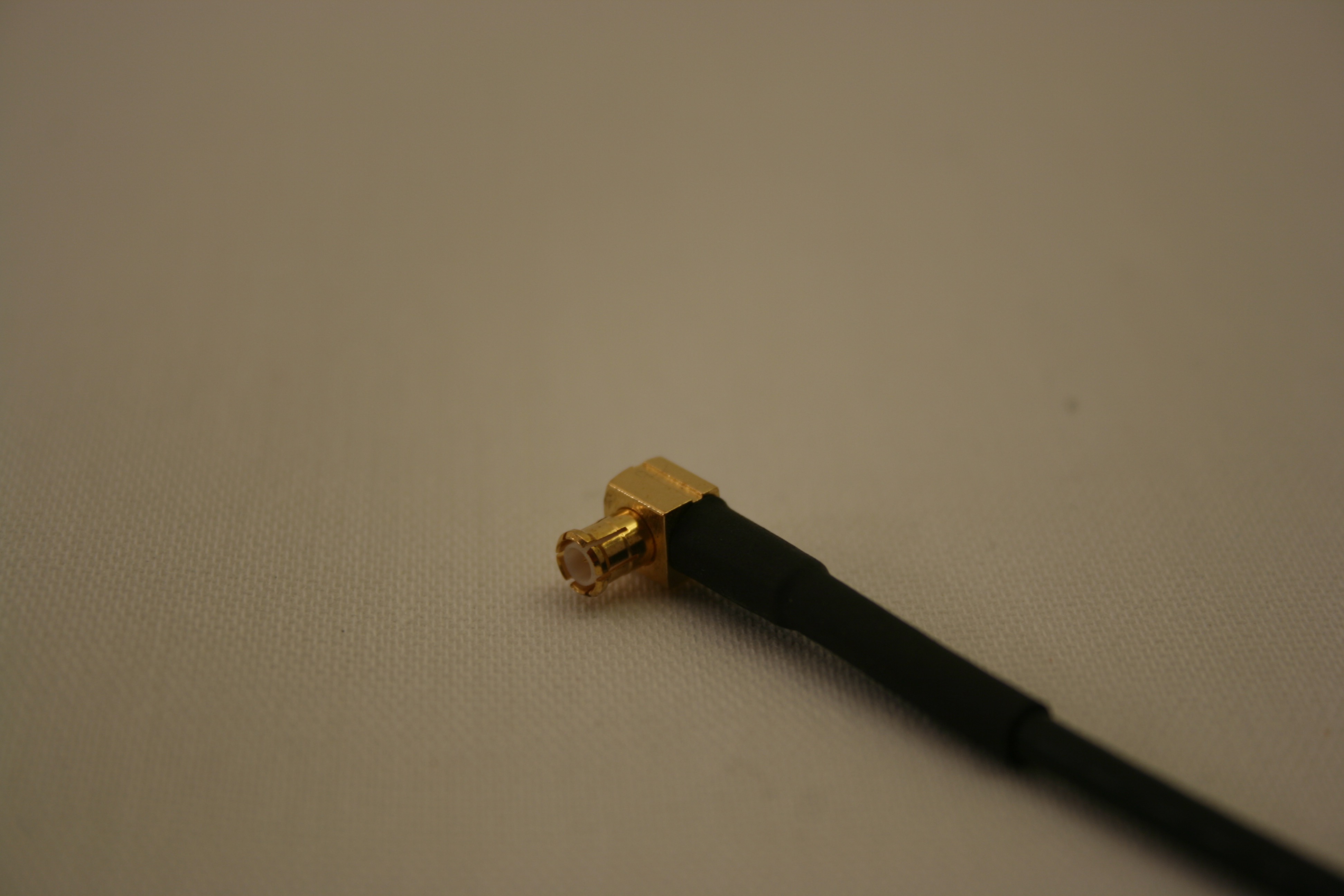

WF Cable, Flex, DIN(f)-90° MCX(m), 12" (qty 5)

Waveform signal to DUT, RI7100A

Part Number: RIK0002A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

$510
DO NOT use this for new Designs.

Suggested Replacement: RIK0113A

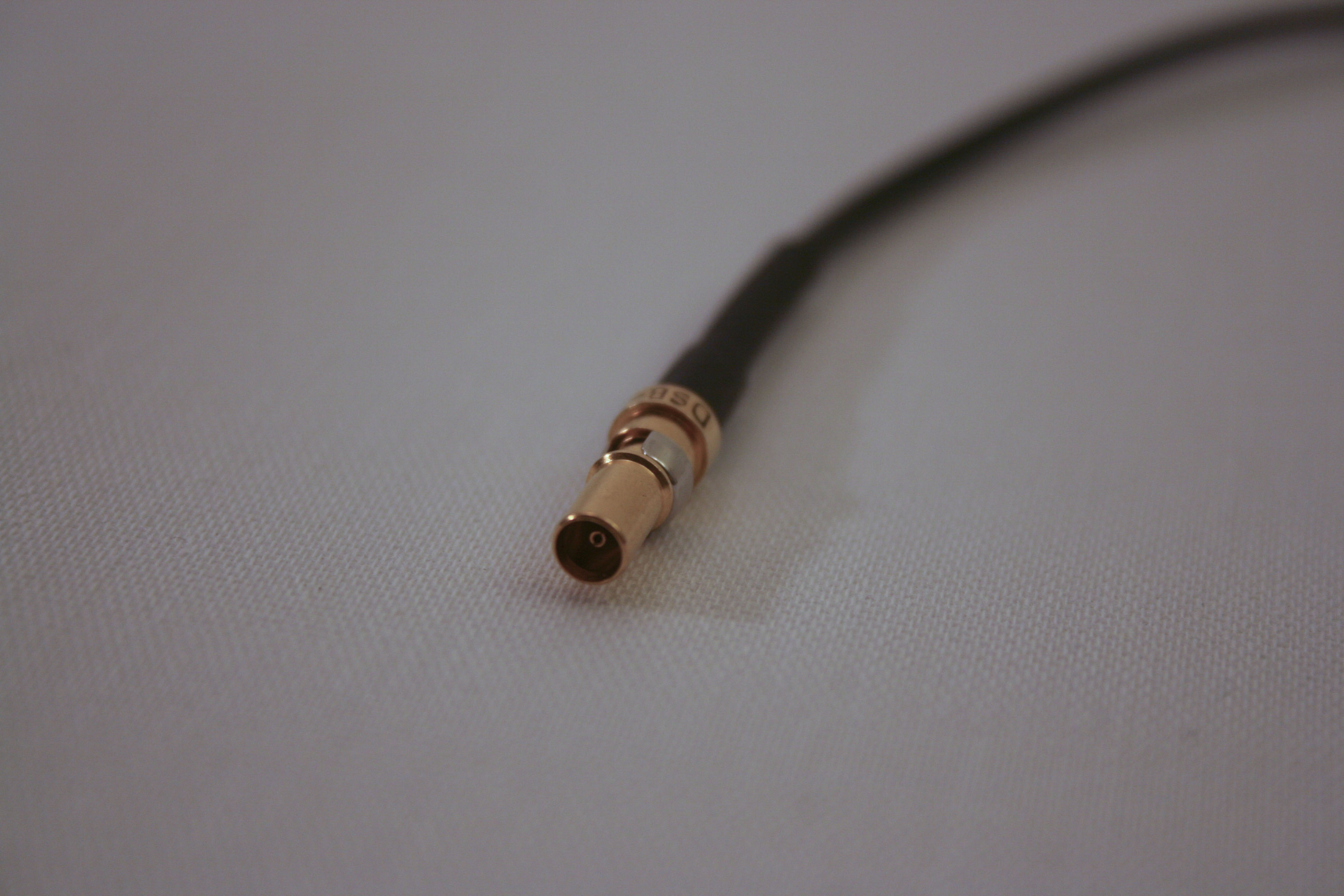

Each cable has a lock ring on DIN end to lock cable into RI7100A fixture plate.

Cassini system users should find PKZ #12 connector when connecting directly to a TIM.

Quantity Connector Type(s) Genders Angle(s)
Side A 1 MCX M 90°
Side B 1 DIN M
Max Frequency:  6 GHz
Cable Length:  12 inches
Cable Structure:  Flexible (Unlimited Bend, Min Stability)
Fixture Block Type:  RI7100A

Item Ref Part Number QTY Description Category Qty in Stock
1W1MFBKHB5COAX,FLEX,MCXM-DINF 12.0"Coax
BOM Refreshed:05/11/2020 06:20 PM
