Out of Stock: Ships 4-6 weeks ARO

Matrix Fixture, Quad DIB Clamp

Cassini Quad Site, Intest Compatible

Part Number: RIK0279A

In Stock: 0

Estimated Restocking Time: 4-6 weeks

$663
Matrix Fixture, Large DIB Clamp, Compatible with Intest Designs

Includes elastomer, screws



Supports Up to 60 Inserts

10.5x13.5"


Related Parts:
RIKDescriptionKit Type
Product Catalog
277AMatrix Fixture, Quad Top PlateFixture Top Plates
Product Catalog
278AMatrix Fixture, Quad Pedestal SupportFixture DIB Layer
Product Catalog
279AMatrix Fixture, Quad DIB ClampFixture DIB Layer


MMWLSE6A.pdfMMWLSE6A.pdf

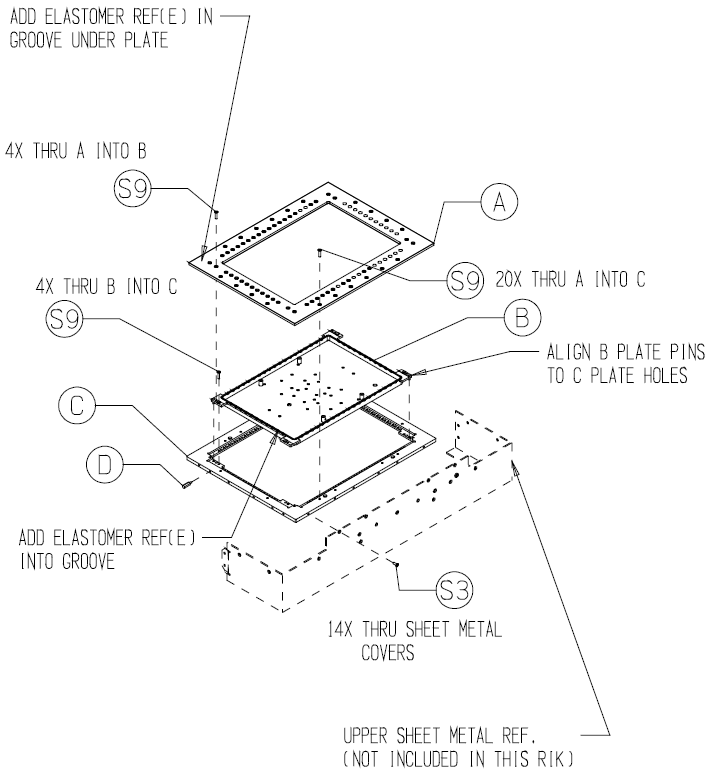

Contact Support for assembly instructions.

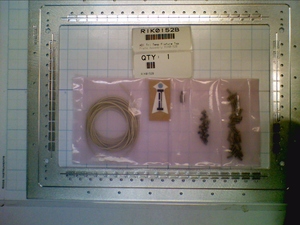

Item Ref Part Number QTY Description Category Qty in Stock
1MA662W1A36Conductive Elastomer round .071Dia for FixturesMchCmp
2MH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
3W1MFFAKE1CLAMP INSERT THIN 13.5X10.5MchFb
BOM Refreshed:08/16/2019 07:08 PM
