This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/12/2016. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RIK0285A

Expiration Reason: needed numbering to be consistent with all top plates

Aditional replacements may be found by searching for RIK0277 (change the REV letter) or Matrix Fixture, Quad Top Plate (Alpha+Numeric).

Out of Stock: Ships Limited Availability: 12+ weeks ARO No New Designs

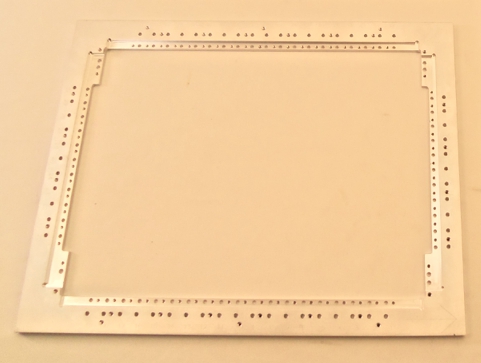

Matrix Fixture, Quad Top Plate (Alpha+Numeric)

Cassini Quad Site, Intest Compatible

Part Number: RIK0277A

In Stock: 0

Estimated Restocking Time: Limited Availability: 12+ weeks

DO NOT use this for new Designs.

Suggested Replacement: RIK0285A

Matrix Fixture, Large DIB Fixture Top Plate, Compatible with Intest Designs

Alpha+Numeric Insert location mapping. New designs should use Numeric ONLY top plate ( RIK0285A ).

This item will have longer lead times and will not be stocked.

Supports Up to 60 Inserts


Related Parts:
RIKDescriptionKit Type
Product Catalog
277AMatrix Fixture, Quad Top PlateFixture Top Plates
Product Catalog
278AMatrix Fixture, Quad Pedestal SupportFixture DIB Layer
Product Catalog
279AMatrix Fixture, Quad DIB ClampFixture DIB Layer

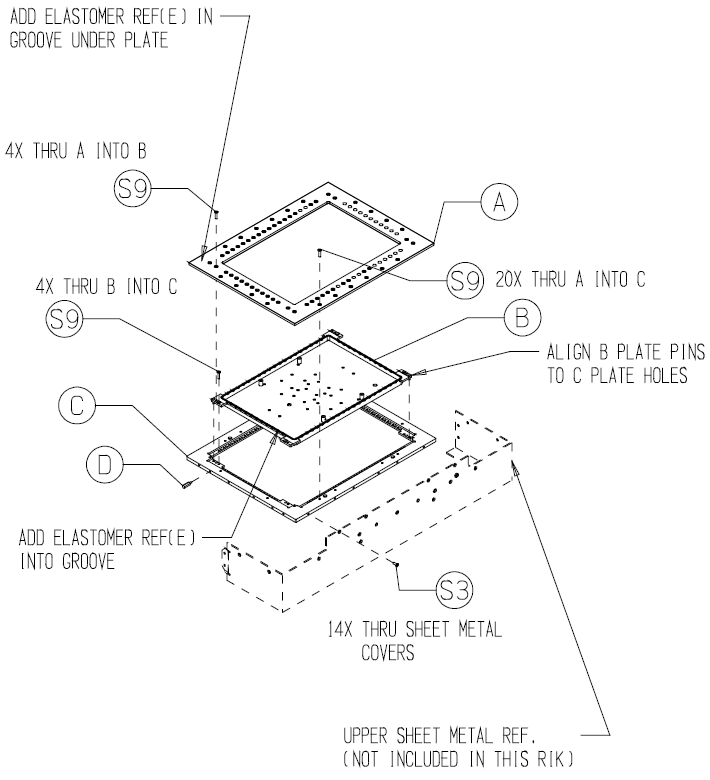

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock
1MGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
2MH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
BOM Refreshed:05/11/2020 06:25 PM
