This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 02/23/2017. View RIKs with Limited Availability for a complete list.

Suggested Replacement: Cassini16

Expiration Reason: Cassin 8 limited availaility.

Aditional replacements may be found by searching for RIK0102 (change the REV letter) or RF Cable, Semi-Rigid, PKZ#12(f)-PKZ#12(f), 4" (qty 2).

8 In Stock

RF Cable, Semi-Rigid, PKZ#12(f)-PKZ#12(f), 4" (qty 2)

RF Block Interconnect (REQUIRED Cassini-8)

Part Number: RIK0102A

Estimated Restocking Time: 12+ weeks (limited)

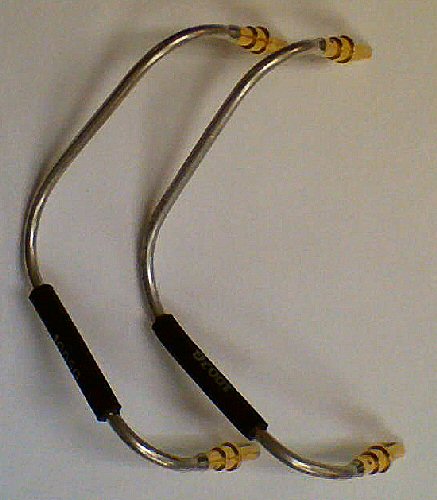

Fixture RF Short Cable Kit. Used to jumper across ports in Cassini fixture. Flexible insulated jacket. To be used between two RF blocks (RIK0103A).

(1) Tall cable, (1) Short cable.

Quantity Connector Type(s) Genders Angle(s)
Side A 2 PKZ #12 F
Side B 2 PKZ #12 F
Max Frequency:  40 GHz
Cable Length:  4 inches
Cable Structure:  Semi-Rigid (Bend Once, Max Stability)
Fixture Block Type:

Database 'Product Docs', View 'All Documents', Document 'Fixture Assembly Steps - Cassini - RF Block (RIK00102A + RIK00103A)'Fixture Assembly Steps - Cassini - RF Block (RIK00102A + RIK00103A)

Item Ref Part Number QTY Description Category Qty in Stock
1AT2HFS5A1RIK0102A, Packaging LabelDcmnt
2MRU4KP1A1Clam Shell Packaging Inside Cavity 2.625W"X3.064H"X 0.5DSppls
3W1MFEJRB1Coax,Semi-Rigid,.085,#12F-#12F 5.5" bent short for fixture*Coax
4W1MFEJSB1Coax,Semi-Rigid,.085,#12F pkz-#12F pkz 5.5" bent long for fixture*Coax
BOM Refreshed:05/11/2020 06:22 PM
