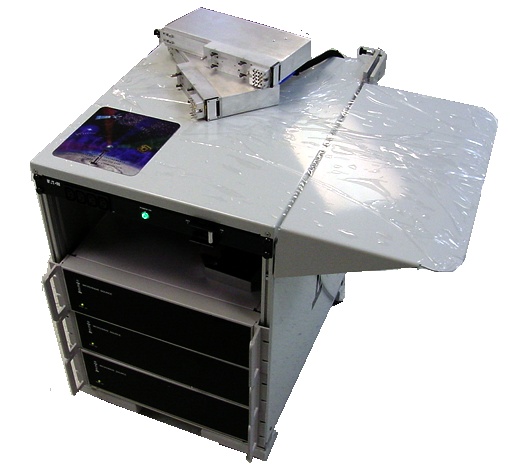

Auxiliary Instrument Rack (Custom)
11U Rackspace for Instruments for Cassini 16
Part Number: RI8576B
Enables additional instruments to be added to Cassini 16. Each configuration is configured for a unique application or customer.
When used with RI7725 20 GHz RF Sources, the following configuration is used:

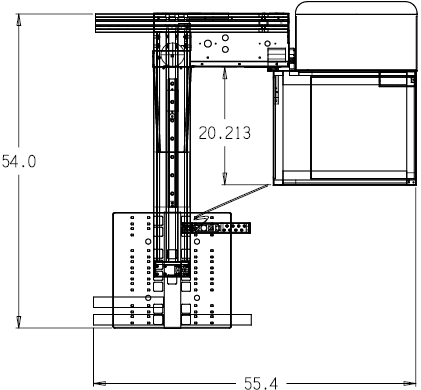

With Auxiliary Rack (Optional) attached on the Right:

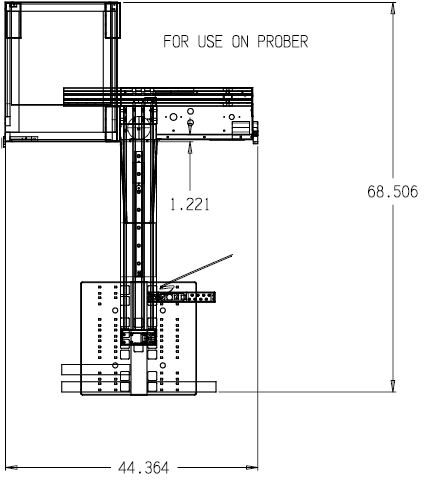

With Auxiliary Rack (Optional) attached on the Left:
This item is also used as a flat surface for the RI8597A Cassini Development Desktop User Interface with a standard 22" (or greater) widescreen LCD monitor.
