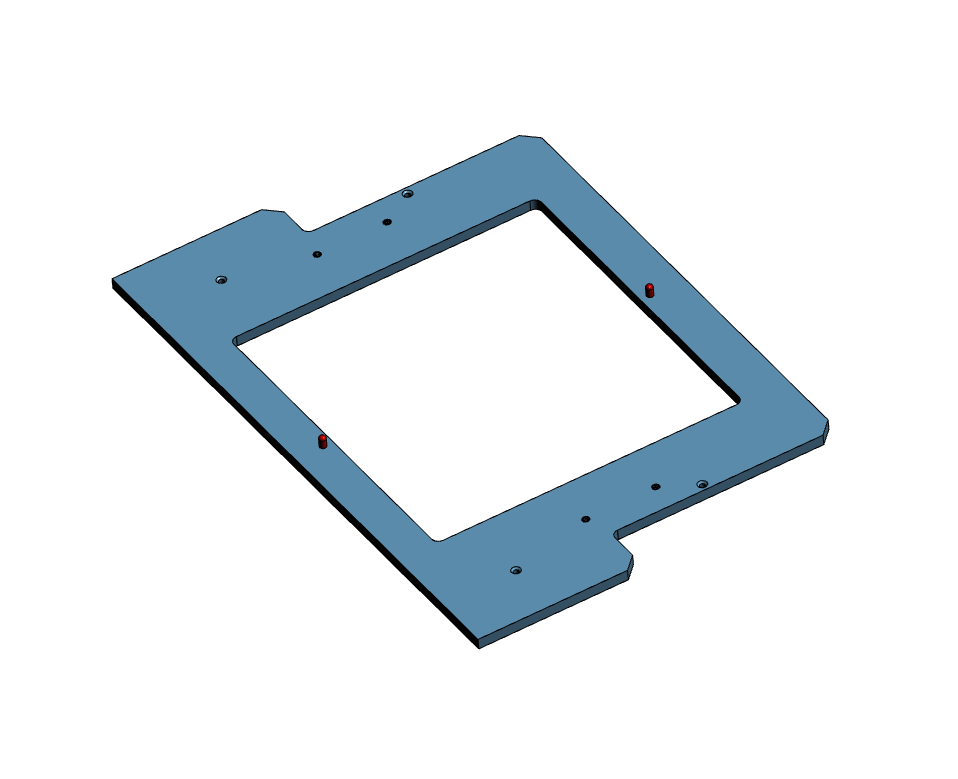

Custom Adapter Plate for RI Large Handler Dock

Set mounting hole locations, z height for specific Handler Model, must use compatible DUT Clamp

Part Number: HNDPLATE

Custom adapter plate to mount the Handler Dock to a specific Handler model. Precision Z-height is needed to guarantee effective DUT insertion into the socket. Unless listed below, the handler's physical interface design specification required.

Price dependant on design. Average price shown.

W1MFCRAB Seiko Multi
W1MFCTUB Seiko (pedestal I)
W1MFCSXA Seiko (pedestal N)
W1MFCUHA Advantest 20 coax
W1MFCTFC Rasco 20 coax

Other adapter plates may be available. Contact Roos Instruments and provide detailed handler specifications.
