LIMITED AVAILABILITY

This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 03/29/2012. View RIKs with Limited Availability for a complete list.

Expiration Reason: Rev B

Aditional replacements may be found by searching for RIK0152 (change the REV letter) or Fixture Top Plate, Matrix Quad, Intest Compatible.

Out of Stock: Ships Contact Factory ARO

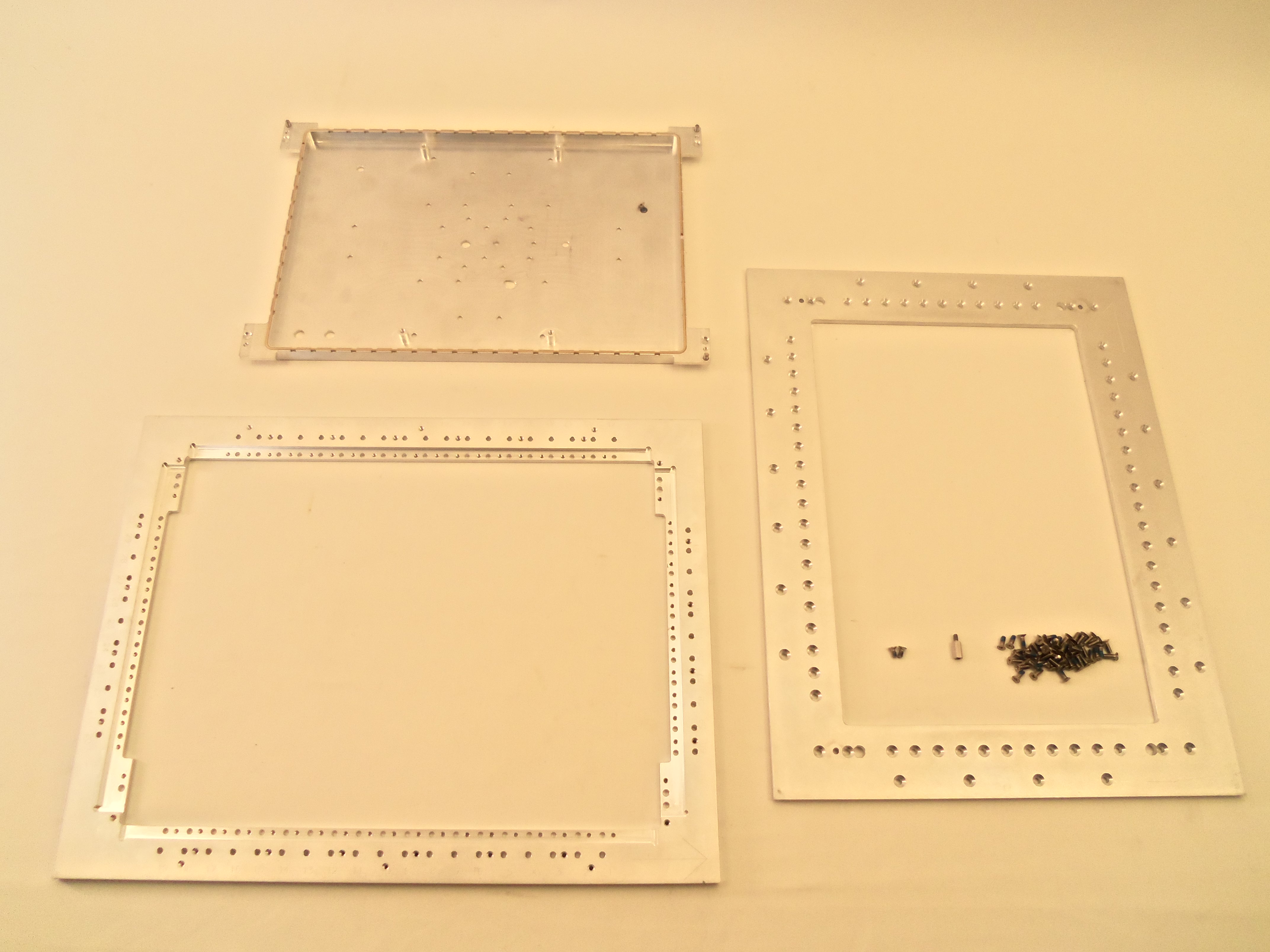

Fixture Top Plate, Matrix Quad, Intest Compatible

Cassini Large Quad Site Fixtures - Intest Compatible

Part Number: RIK0152A

In Stock: 0

Estimated Restocking Time: Contact Factory

$1,500
Matrix Fixture, Large DIB Fixture Top Plate Assembly
RIKDesciptionKit TypePriceWeightModified
Product Catalog
152AMatrix Fixture, Large Quad Fixture KitFixture Accessories$1,4041207/20/2011 03:57:02 PM

Contact Support for assembly instructions.
Item Ref Part Number QTY Description Category Qty in Stock

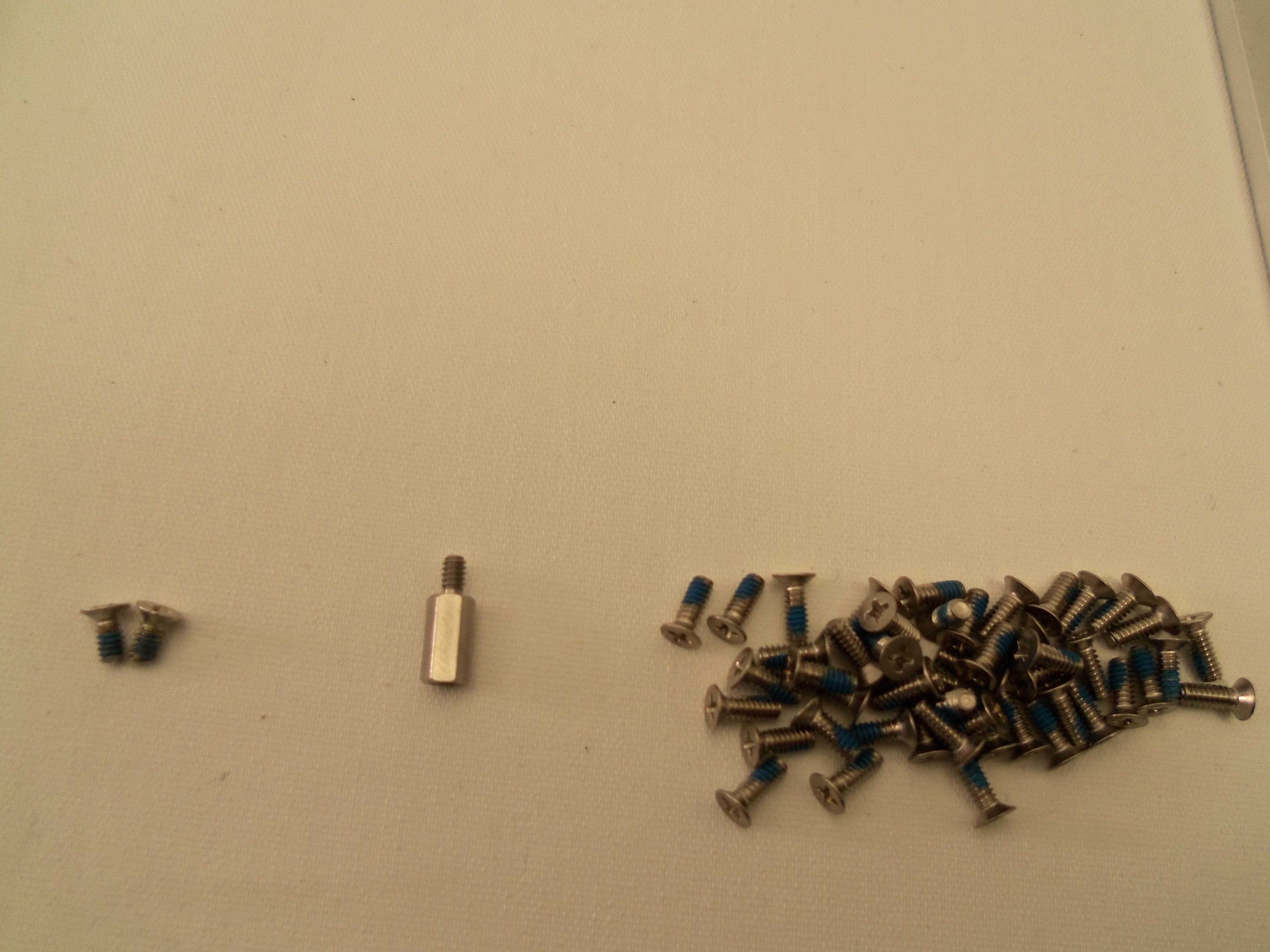

1DM6JH3W1A30SCREW FLAT PHIL 4-40 X 3/8" SSHrdwr
2GMA662W1A4Conductive Elastomer round .071Dia for FixturesMchCmp
3EMGZ88J1A1Standoff, 4-40 x 3/8, M/F 3/16, Hex, SSHrdwr
4FMH3FNL1A14SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patchHrdwr
5W1MFCPNA1Label, Fixture Orientation arrowMchFb
6BW1MFEYGB1support insert QUAD 13.5X10.5*MchFb
7CW1MFEYHA1TOP FIX INSERT QUAD 13.5X10.5MchFb
8AW1MFEYNA1CLAMP INSERT QUAD 13.5X10.5*MchFb
BOM Refreshed:02/24/2020 07:21 PM
