Part Number: FIXTURE

Estimated Restocking Time: Now

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

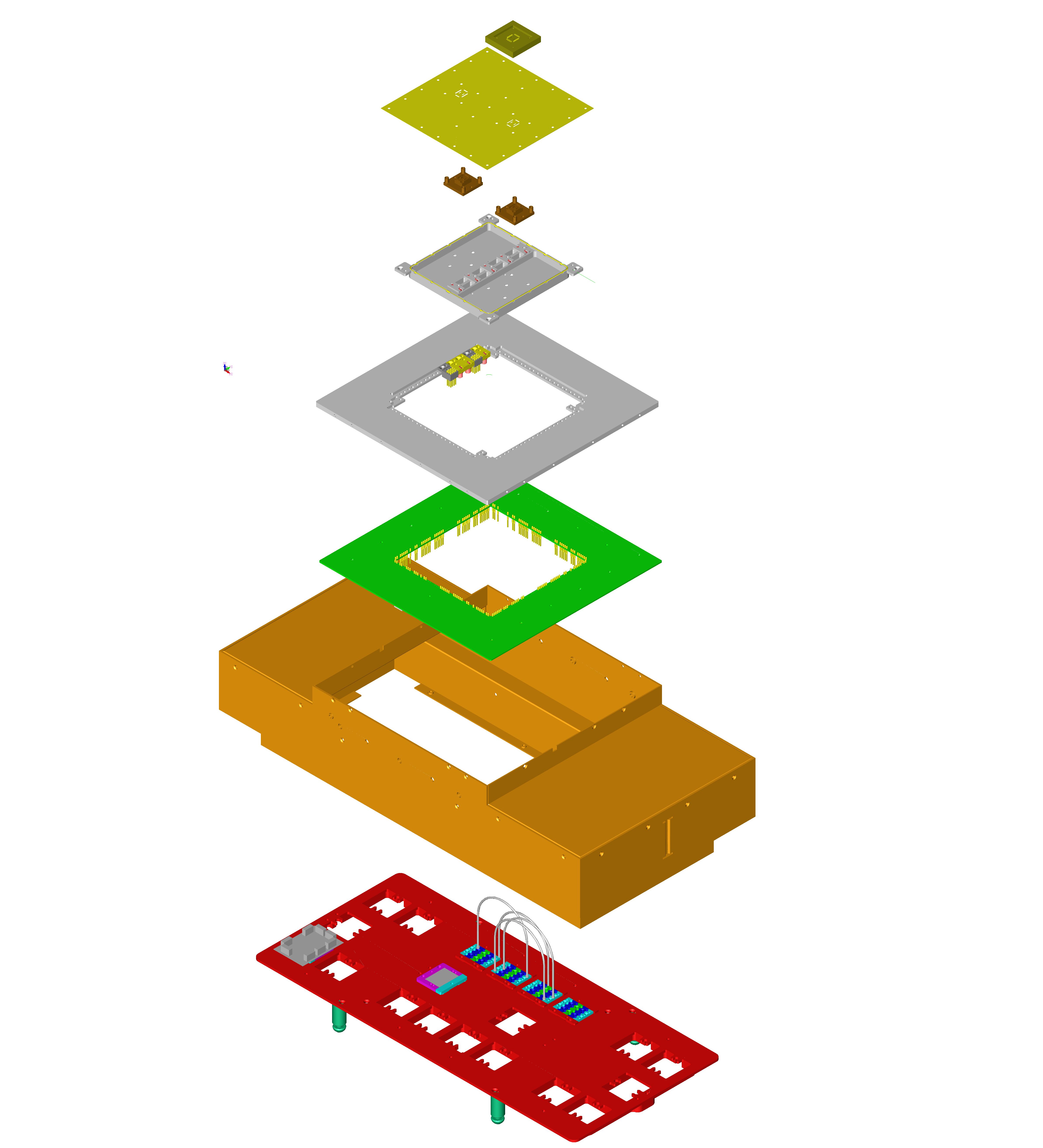

Fixture has 3 layers: Outer: Inner: Custom

Outer layer is reusable for the life of the part FAMILY, used for probers, handlers, and engineering boards for device characterization (pre-production)

OUTER (Reusable)

Bottom : Sides : Tops : Pedestal Clamp & Support : Handler Docking

Inner Layer holds Fixture Modules for extended capabilities. Multisite, switching and conditioning

INNER (Reusable)

Blocks : Inserts : Modules : Carriers : Cables

Custom Layer is focused on a specific DUT layout (pin locations, socket, etc)

CUSTOM (Part Family)

Pedsetal : DIB : Socket
