This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/04/2009. View RIKs with Limited Availability for a complete list.

Suggested Replacement: RI8546C

Expiration Reason: Improved performance and reliability

Aditional replacements may be found by searching for RI8546B (change the REV letter) or Device Power Module (DP,VM,DB,VI,VCC).

Device Power Module (DP,VM,DB,VI,VCC)

QTY = number of available RF ports

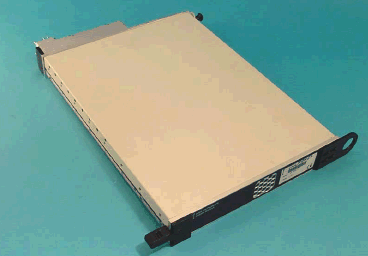

Part Number: RI8546B

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

Includes 100 Mhz to 4 GHz S-Parameters, DC to 4 GHz power and spectrum, transceiver, receiver, transmitter measurements
  • DC source and measurement for device test.
  • Low speed static digital for managing test circuit configuration
  • Pulsed 3 A current source and measure
  • All dynamic features are synchronous
  • Supports multi-site test
  • 8x 250 mA 4 quadrant supplies
  • 4x 3A single quadrant pulsed supplies
  • 16 Low Speed Digital lines
  • 8 Voltage Measure Lines

  • Related Documents:

    User account required Create new account
    Product Docs
    Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects
