Test Set, 4-40.5 GHz, 2 Ports 1 Path TIM

40 GHz applications

Part Number: RI8563D

Please visit the Instruments page for the latest Briefs.

Test Instrument Modules Browse Instruments »

40.5 GHz Extension for 20 GHz systems

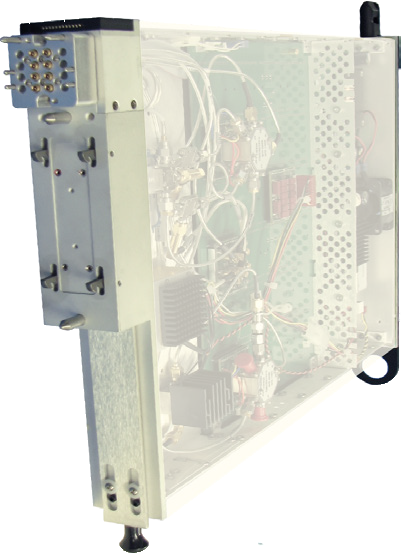

The RI8563A 5-40.5 GHz Test Instrument Module (TIM) is a single slot module that extends 20GHz general tester coverage to 40.5GHz on Cassini test systems. Each TIM provides one source/receive port and one receive only port. The 20-40.5GHz TIM requires two 20GHz sources (RF and LO) be configured in the same test system. Full access to 20GHz resources is maintained via pass through paths provided in the TIM. Calibration is available at the TIM and Fixture level.

New with rev D, the RF amp is moved from before the switch to after, so the amp only drives the doubler. Changed the cal factors and process so linearity is now absolute. This results in better source accuracy.
